Hobbywing SCT-PRO Brushless 120A ESC + 4000KV Sensored Motor + LCD Program Card Box for 1/10 Car Buggy

Hobbywing SCT-PRO Brushless 120A ESC + 4000KV Sensored Motor + LCD Program Card Box for 1/10 Car Buggy

Sensored Brushless Motor Specifications
- Model: XERUN 3656SD KV4000 Sensored Brushless Motor
- Rotational Speed: 4000 KV
- Motor Dimensions (Diameter x Length): 36mm x 56mm
- Shaft Dimensions (Diameter x Length): 5mm x 18.5mm
- Input Battery Types: NiCd/ Nimh/ Li-po Battery
- Recommend Model: RC Model 1/10 Car

ESC Specifications
- Model: XERUN-SCT-PRO
- Dimension: 53.5mm(L) x 36mm(W) x 36mm(H)
- Cont. / Burst Current: 120A / 760A
- Resistance: 0.0004 ohm
- Motor Turns: (2S Lipo: KV<=6000) / (3S Lipo: KV<=4000) / (4S Lipo: KV<=3000)
- Battery: 6-12 cells NiMH / NiCd or 2-4S Li-Po
- BEC Output: 6V/3A Built-in BEC
- Cooling Fan Working Voltage: Working under 6V
- Net Weight: 99g
- Suitable Model: 1/10 and 1/8 Scale Truggy or Buggy

ESC Features
- Suitable for 1/10 and 1/8 scale short course trucks and 1/8 scale buggies.
- Compatible with sensored and sensorless brushless motors, with the best control feelings.
- The built-in switching mode BEC has a powerful output to supply all electronic equipments even with 4S Lipo input.
- Excellent start-up, acceleration and linearity.
- Proportional ABS brake function with 5 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment. Also compatible with the mechanical disc-brake system.
- Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
- Easily programmed with only one button and compatible with pocket-sized program card (Optional equipment) and the advanced LCD Program Box (Optional equipment).
- ESC firmware can be updated through an USB adapter on the LCD Program Box (Optional equipment).
- Splash proof and dust proof.

Program Card Features and Functions
 The 2 IN 1 PROFESSIONAL PROGRAM BOX is a small device to set the programmable parameters of the brushless ESC, it works in the following 2 ways:
1. Working as an individual device to set the ESC, the value of each parameter is displayed on its own LCD screen.
2. Working as an USD adapter to link the ESC with a PC, and the user can update the firmware of the ESC or set the ESC by the special application software on PC.

Program Card Specifications
- Dimensions 90mm x 51mm x 17mm
- Power Supply DC 4.5V to 6.0V
- Suitable ESC HOBBYWING / TEKMODEL

The programmable item for the CAR ESC are:
- Running Mode
- Drag Brake Force
- Low Voltage Cut-Off Threshold
- Start Mode
- Maximum Brake Force
- Maximum Reverse Force
- Initial Brake Force
- Throttle Neutral Range
- Timing
- Over-Heat Protection
- Motor Rotation
- Lipo Cells

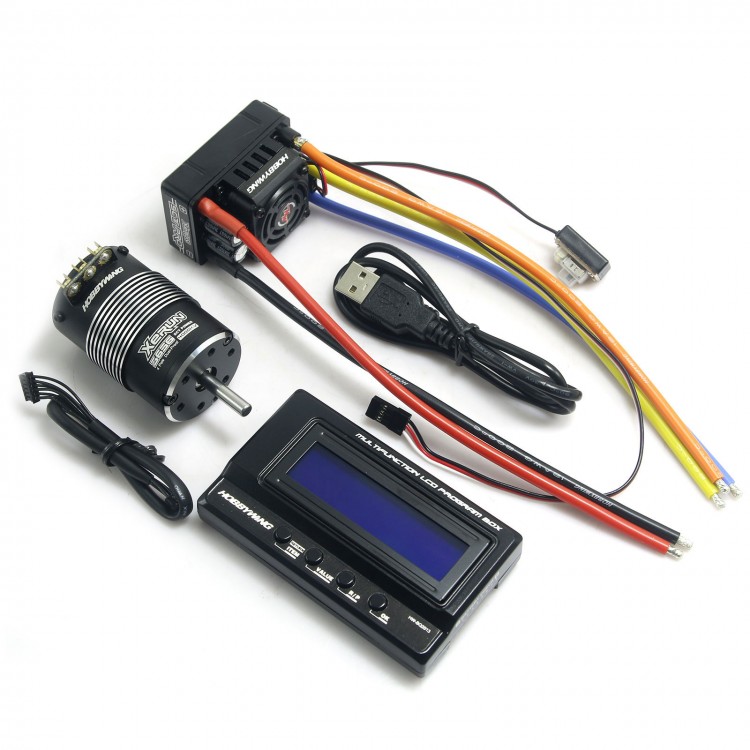

Package List:
- 1 x HOBBYWING XERUN Brushless ESC
- 1 x 3656 Sensored Brushless Motor
- 1 x Program box
- 1 x Motor induction line
