Description:

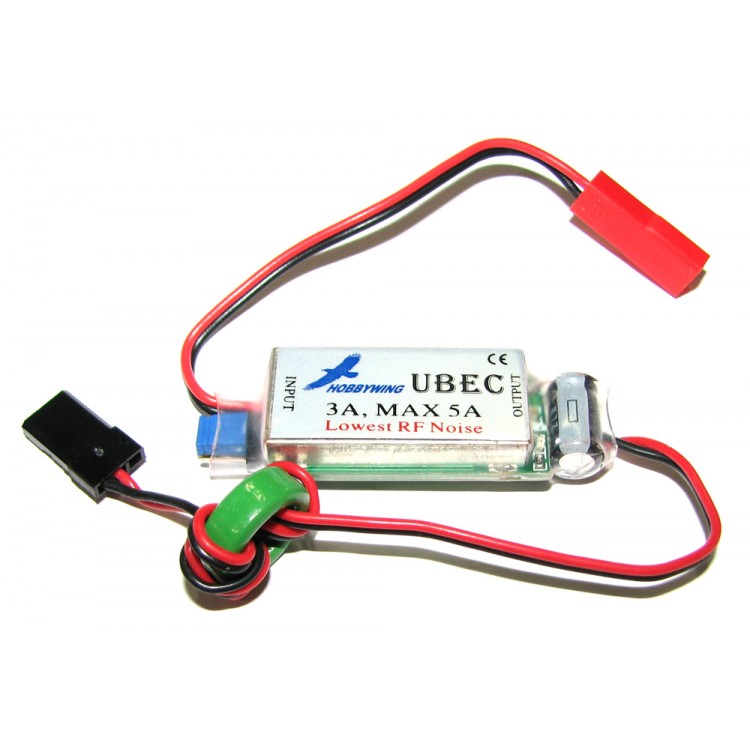

The UBEC is a switch-mode DC regulator separated from ESC, it converts battery voltage (5.5V-23V)to a consistent safe voltage for your receiver, gyro and servos.it can solve some problem of ESC with built-in BEC,like little current to supply seveo loads,if your recever connect more than 2 serveos,we recommand you use the UBEC.
Specification:
- Output: 5V/ 3A and 6V/ 3A switchable
- Input: 5.5V-23V (2-5s lithium battery pack, 5-15cells NiMh / NiCd battery pack)
- Size: 41.6mm * 16.6mm * 7.0mm (length*width*high)
- Weight: 6g (input and output cables not included); 9g (cables included)
- Ripple: <50mVp-p(@ 2A /12V)
- Efficiency:89%
- Mode:switch PWM mode
