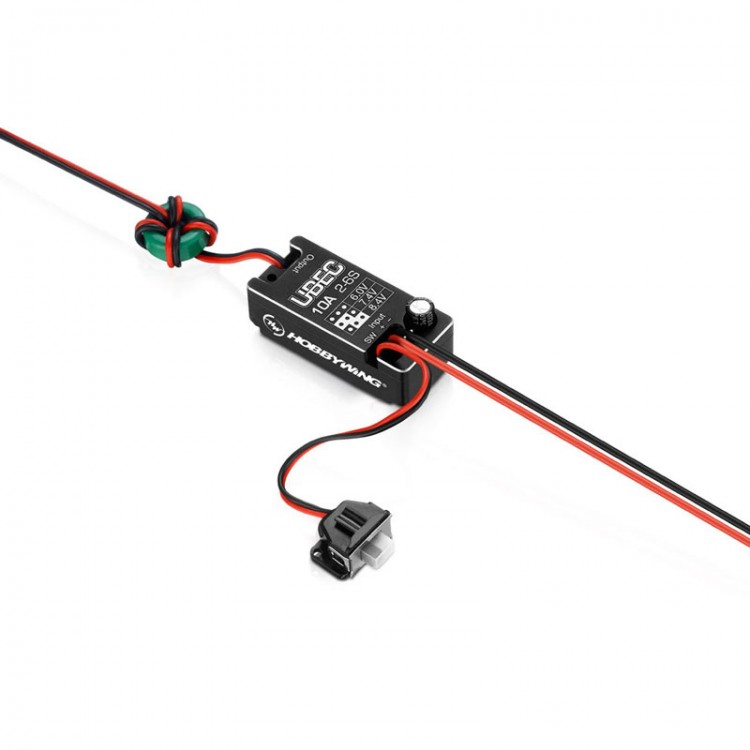

Hobbywing UBEC 10A-Car Waterproof Input 2-6S Output 6.0/7.4/8.4V for RC Crawlers Trucks
Description:
The UBEC uses an efficient DC-DC regulator chip with a conversion efficiency of more than 90%. The all-metal housing is designed to help dissipate heat and reduce electromagnetic interference. UBEC output voltage is adjustable in three stages (6.0/7.4/8.4V) with a continuous current of 10A and a maximum of 15A. The voltage specifications allow the use for a wide range of servos and electrical equipment such as lights, winches, wipers and etc. At the same time, the UBEC is equipped with over-current protection, output short-circuit protection, overheat protection, and IP67 waterproof dust design. It can be widely used on crawlers, trucks, and other electric models as well.
Specifications:
- Model: UBEC 10A-Car
- Output voltage: 6.0/7.4/8.4V (3 adjustable levels)
- Output current: Continuous 10A; Instantaneous 15A
- Measurement: 45*20*16.2mm
- Weight: 34g (including wires)
Package Included:
- 1 x UBEC
Note:
- Batteries are not included. 2-6s lithium batteries are recommended.
