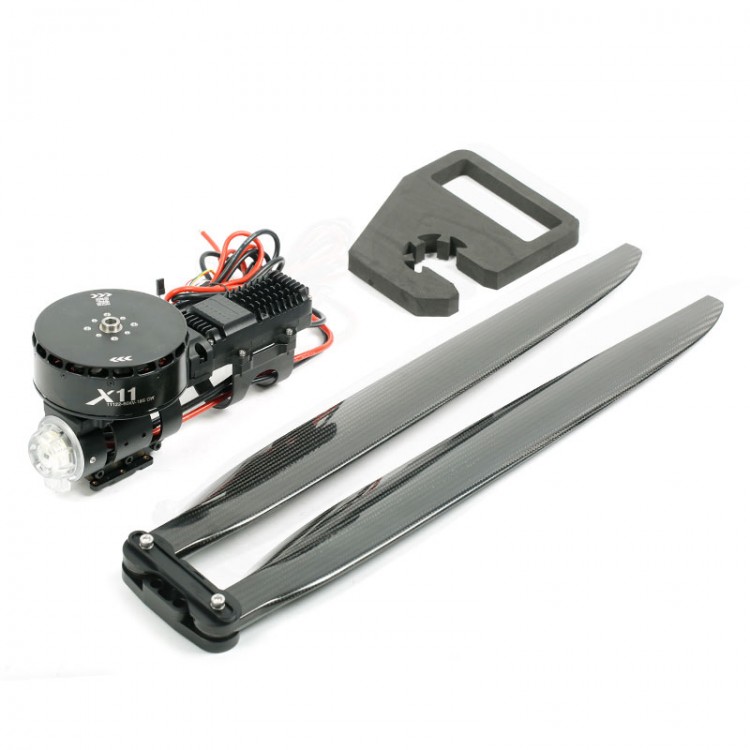

Hobbywing X11 MAX 18S 60KV Drone Motor + ESC + 48" Propeller CW Max Thrust 44KG for Multi-Copter
Specifications:
- Max Thrust: 44kg/rotor (70V, Sea Level)
- Recommended Takeoff Weight: 20-22kg/Axis (70V, Sea Level)
- Recommended Battery: 18S (LiPo)
- Operating Temperature: -20 to 50℃
- Total Weight: 2800g/6.2lb
- Ingress Protection: IPX6
Motor:
- KV Rating: 60rpm/V
- Stator Size: 111 x 22mm/4.4 x 0.9"
- Powertrain Arm Tube Outer Diameter: 50mm/2"
- Bearing: Bearings imported from Japan
ESC:
- Recommended LiPo Battery: 18S (LiPo)
- PWM Input Signal Level: 3.3V/5V
- Throttle Signal Frequency: 50-500Hz
- Operating Pulse Width: 1050-1950us (Fixed or cannot be Programmed)
- Max. Input Voltage: 78.3V
- Max. Input Current (Short duration): 150A (With/ Good Heat Dissipation)
- BEC: No
Propeller:
- Diameter x Pitch: 48*17.5"
Package Included:
- 1 x Motor ESC
- 1 x Propeller Bracket
- 1 x Propeller
Note:
- Battery is not included in the package.
Packaging Details:
- G.W.: 4kg
