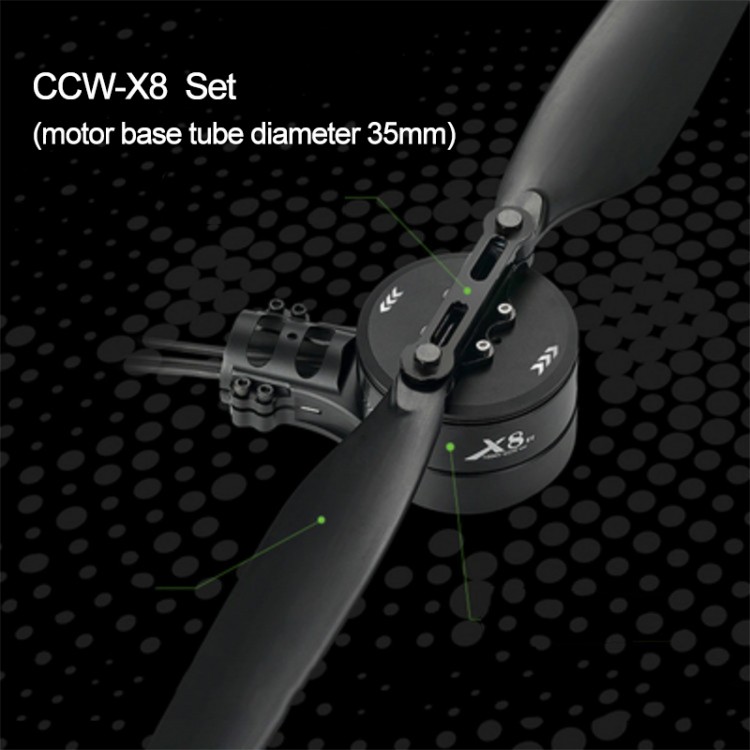

Hobbywing X8 Power System Plane Power Combo For Agricultural Drones Version For CCW 35MM Motor Tube

Hobbywing X8 Power System Plane Power Combo For Agricultural Drones Version For CCW 35MM Motor Tube

Description:
The integrated power system solution integrates motor, ESC, propeller and motor base. It  is very convenient to install and use.

Specifications:
- Max.Thrust: 15.3kg/Axis (48V, Sea Level)
- Recommended LiPo Battery: 12S LiPo (battery is not included)
- Recommended Takeoff Weight: 5-7kg/Axis(48V, Sea Level)
- Combo Weight: 1040g
- Waterproof Rating: IPX7
- Operating Temperature: -20℃ to 65℃

Motor:
- Stator Size: 81*20mm
- KV Rating: 100KV
- O.D of Carbon Fiber Tube: 35mm diameter(*Tube Adapter will be Needed)
- Bearing: Ball Bearing(Waterproof)

ESC:
- Recommended LiPo Battery: 6-12S LiPo (battery is not included)
- PWM Input Signal Level: 3.3V/5V(Compatible)
- Throttle Signal Frequency: 50-500Hz
- Operating Pulse Width: 1100us-1940us(Fixed so do not support calibration)
- Max. Input Voltage: 52.2V
- Max. Input Current (Cont.): 80A(w/Good Heat Dissipation)
- Max. Peak Current (10s): 100A(w/Good Heat Dissipation)
- BEC: No
- Nozzle Mounting Holes: Diameter 28.4mm-2*M3

Propeller:
- Diameter x Pitch: 3090
- Weight: 180g

Package Included:
- 1 x Set of Power System

Note:
- The power system set is for one-axis airplane. For multiple-axis drones, please purchase more sets to meet you needs.
- Batteries are not included in the package.
