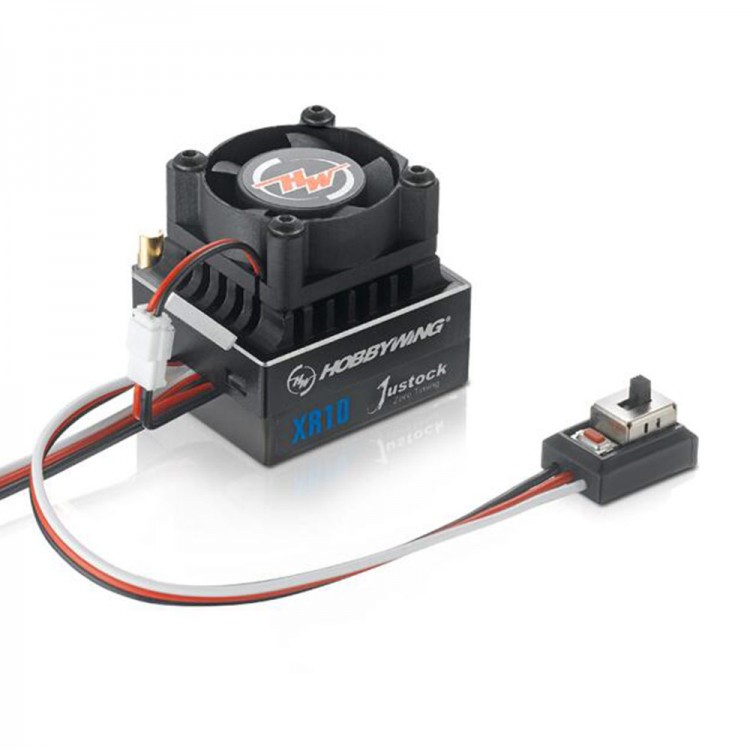

Hobbywing Xerun XR10 Justock 60A Sensored Brushless ESC Electronic Speed Controller for Racing Car Rock Crawler
Feature:
- Zero-timing Design
- High Reliability & Durability
- High efficient Heat Dissipating System
- Small Footprint
- Wide Applicability
- Single-button Programming & Factory Reset
- Regular Firmware Updates Free of Charge
Specifications:
- Model: XERUN XR10 Justock Brushless ESC Electronic Speed Controller
- Cont./Peak Current: 60A/380A
- BEC Output: Linear Mode:6V/4A
Wires & Connectors:
- Input Wires:Blue-14AWG-200mm*1/Black-14AWG-200mm*1
- Output Wires:Red-14AWG-200mm*1/Yellow-14AWG-200mm*1/Orange-14AWG-200mm*1
- Input Connectors: No
- Output Connecotors: No
Fan:
- Size: 25x25x10mm
- Voltage Range: 5-8.4V
- Powered by: BEC
Note: All the wire length above is the original length not the length you see from the outside.
ESC Programing via:
- SET Button on ESC: Supported
- LED Program Box: Supported
- LCD Program Box: Supported
- WiFi Module: Supported
- Program Port: Program/Throttle Wire
Firmware:
-Firmware Upgrade: Supported
Size & Weight:
-Size:33.0x28.0x31.5mm
-Weight: 46g
Applications:
- Motors: SL BL Motors / SD BL Motors
- Vehicles: 1/10th,1/12thTouring Car/Buggy Competitions (Especially Stock Class)
- KV Rating/T Count:
2S LiPo: 1/10th Touring Cars≥8.5T, 1/10th Buggies≥11.5T
3S LiPo: 1/10th Touring Cars≥13.5T, 1/10th Buggies≥17.5T
Package List:
- 1 x HOBBYWING XERUN Brushless ESC Electronic Speed Controller
