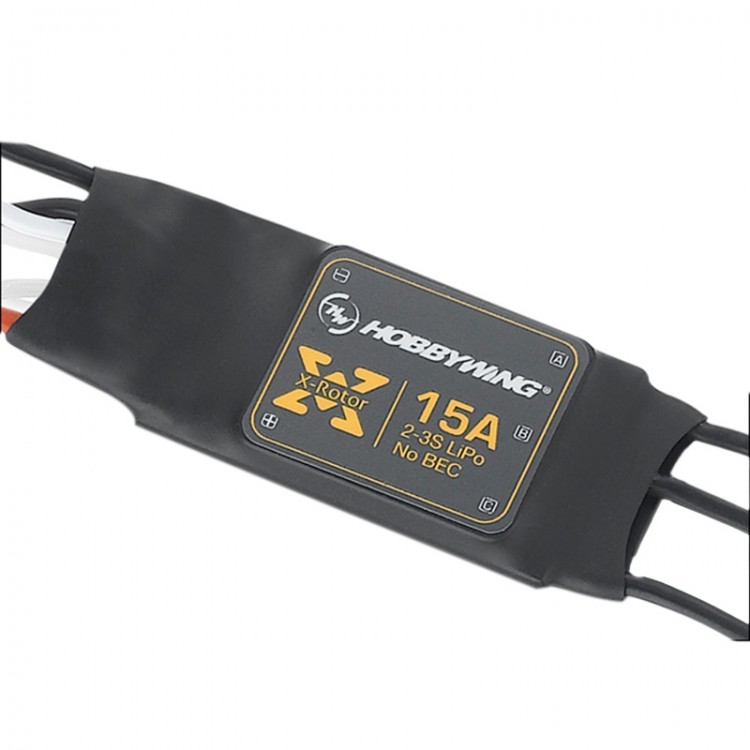

Hobbywing XRotor 15A Brushless ESC Motor Speed Controller Driving Efficiency Optimization Technology for RC Multicopter
Features:
- Special core program for multi-rotor controllers meets various functional requirements against multi-rotors.
- Specially optimized software for excellent compatibility with disc-type motors.
- DEO (Driving Efficiency Optimization) technology significantly reduces the ESC temperature,improves the throttle response, and strengthens the stability and flexibility of multi-rotors. This ESC is quite suitable for QAVs. (The motors slow down rapidly, especially when reducing the throttle amount.)
- Compatible with “Regular” signal-receiving mode (that is the ESC can receive regular throttle signals range from 1100μs to1940μs) and “One Shot” signal-receiving mode (that is the ESC can receive fixed throttle signals range from 125μs to250μs).
- The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
- In “Regular” signal-receiving mode, the ESC is compatible with various flight-controllers and supports a signal frequency of up to 500Hz.
Specification:
- Constant current: 15A
- Peak current (10s): 20A
- BEC: No
- Lipo: 2-3S
- Programmable item: Timing (Medium/High)
- Weight: 10.5g
- Size: 47*17*8.3mm
- Typical application: 250/300 Class multi-rotors
Package included:
- 1 x Hobbywing XRotor 15A Brushless ESC Motor Speed Controller for RC Multicopter
