| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $68.55 | $67.15 | $65.05 | $62.26 | Contact US |
SimpleFOC Shield V2.0.4 BLDC Motor Driver Board Compatible with Ar-duino UNO & for Gimbal Motors
$29.43
SimpleFOC Shield V1.3.3 Brushless DC Motor Driver Board for Low-power FOC Applications up to 5Amps
$24.18
FLYCOLOR Raptor 5th Generation G071 60A 3-6S 4-in-1 ESC 128K Drone ESC Suitable for FPV Drones
$76.28

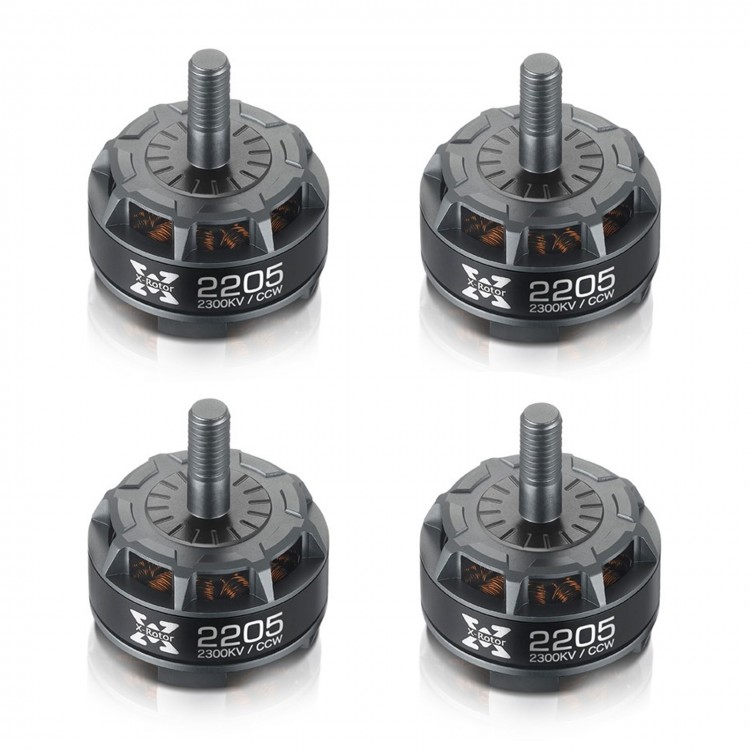

Hobbywing XRotor 2205 2300KV Brushless Motor CW CCW for FPV Racer Drone Quadcopter 2Pair
Parameter:
- Product name: Xrotor 2205 2300KV Brushless Motor
- KV: 2300KV
- Support lithium number: 4S
- No-load current (A/10V): 1.6A
- Motor resistance: 0.068 ohm
- Maximum continuous current / power: 25A/420W
- Stator diameter / thickness: 22mm/5mm
- Motor slot / pole number: 12/14
- Motor diameter / shaft diameter: 28.1mm/5mm
- Motor length (excluding / including axis): 17.1mm/31.1mm
- Weight: 28.4g
- Quantity: 2 pair
Recommended propeller and ESC:
- 5045 Two-blade / three blades
- 30A/3-4S ESC
Package List:
- 2 x Brushless Motor CW
- 2 x Brushless Motor CCW
