Hobbywing XRotor 2205 2300KV Brushless Motor CW CCW + Micro 30A BLHeli ESC for FPV Drone Quadcopter
XRotor 2205 2300KV Brushless Motor CW CCW 2Pair:
Motor Parameter:
- Product name: Xrotor 2205 2300KV Brushless Motor
- KV: 2300KV
- Support lithium number: 4S
- No-load current (A/10V): 1.6A
- Motor resistance: 0.068 ohm
- Maximum continuous current / power: 25A/420W
- Stator diameter / thickness: 22mm/5mm
- Motor slot / pole number: 12/14
- Motor diameter / shaft diameter: 28.1mm/5mm
- Motor length (excluding / including axis): 17.1mm/31.1mm
- Weight: 28.4g
- Quantity: 2 pair
ESC Instructions: Click here
Specification:
- Name: XRotor Micro BLHeli 30A ESC Electronic Speed Controller
- Continuous /peak current: 30A/40A
- Battery: 2-4S Lipo
- BEC output: No
- Power cable: Red-18AWG-100mm*1; black-18AWG-100mm*1
- Throttle stroke calibration: Support
- Program: Remote controller,BLHeliSuite
- DEO: Not support
- Oneshot throttle mode: Support
- Angle setting: Yes
- Motor steering setting: Yes
- Size: 24.0*13.9*5.5mm
- Weight: 7g
- For 130-280mm FPV/quadcopter / drone/multicopter
Features:
- F396 main controller processor,running frequency up to 48MHz
- Top quality MOSFET power tube
- 3 in 1 drive IC
- High quality ceramic capacitor
- 3Oz,4 layers circuit board

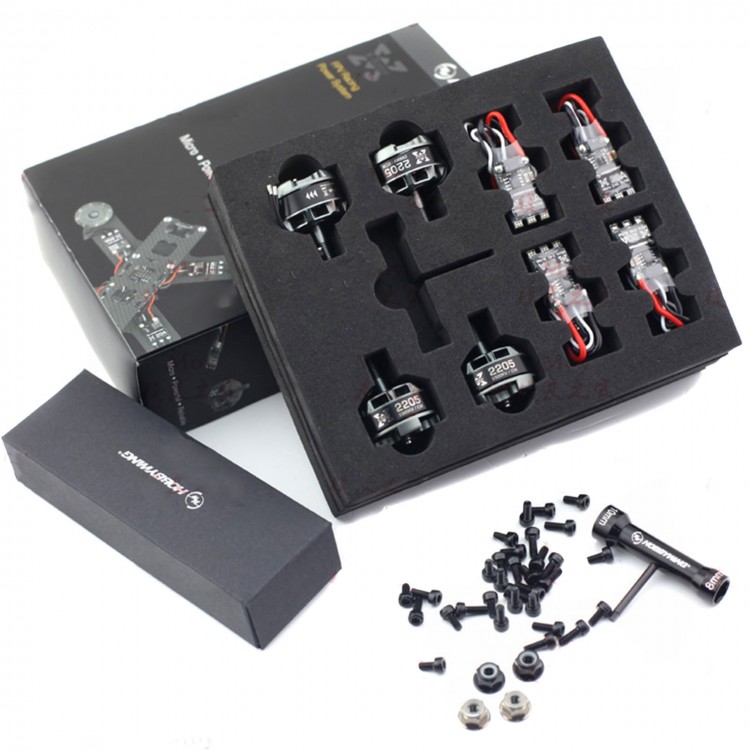

Package List:
- 2 x Brushless Motor CW
- 2 x Brushless Motor CCW
- 4 x ESC
- 1 x Spanner
- 1 bag of screw
