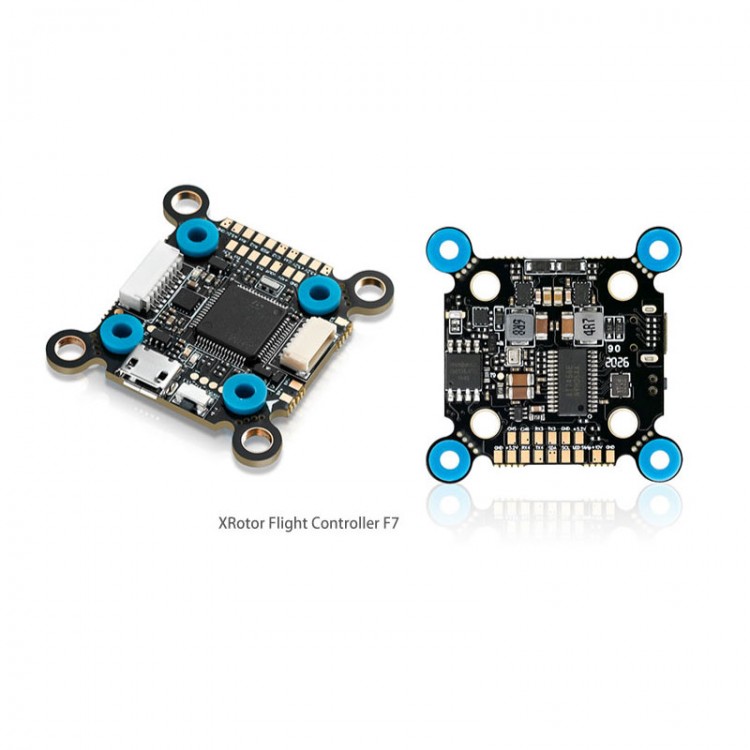

Hobbywing XRotor Flight Controller F7 For DJI Image Transmission System Compatible With Quadcopters

Hobbywing XRotor Flight Controller F7 For DJI Image Transmission System Compatible With Quadcopters

Overview:
Super hardware and running speed
Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity ICM20602 six-axis motion sensor. It can perfectly support bidirectional DShot digital throttle communication. The integrated OSD chip can adjust and set each OSD parameters in FC parameter adjustment software and radio, which is simple and convenient. On-board large capacity flash memory chip can record and store more flight logs, which is convenient for users to debug aircraft based on flight data.

Special interface for DJI image transmission system
With image transmission system port for DJl, equipped with corresponding flat cable (FC has been equipped), can avoid welding, realize plug and play.

On-board 5V & 12Vdual BEC circuit
FMU integrates with 12V BEC circuit. It can supply super power output for image transmission and 12V LED devices.

On-board Pit Switch module
FC integrated Pit Switch module can open or close VTx by radio after being adjusted on FC parameter software. Easy and convenient.

Perfectly support firmware of various FPV
It support the firmware for BetaFlight, Cleanflight, Butterlight, inva and other mainstream FPV, and can use corresponding parameter adjustment software to adjust various parameters, making the FC more suitable for various FPV flight and race.

Unique installation design and shock absorption structure
The double hole distance mounting hole design (30*30MM & 20*20MM) can adapt to different frames. The unique flexible flat cable connection mode (The effect is better with hobbywing tower 4in1 ESC), and the shock absorption mechanism of instillation hole, can effectively reduce the impact of external vibration on FC high-sensitivity components, and make the flight more stable and accurate.

Perfectly match with Hobbywing
Match with Hobbywing tower 4in1 ESC, easy to install and wire. The appearance is more beautiful.

Specifications:
- Product Name: XRotor Flight Controller F7
- Product Number: 31003002

Basic Features:
- Compatible with (Multirotors): Quadcopters
- Firmware: HOBBYWING_XROTORF7CONV
- FC Programming: Supported
- Programming via: For Betaflight/Cleanflight-configurator
- Compatible with (Modes): PWM, Oneshot 125, Oneshot 42, Multishot, Dshot150, Dshot300, Dshot600, PROSHOT1000
- Compatible with (Transmitters): For PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
- OSD: Built-in
- Voltage Monitoring: Supported
- Current Monitoring: Supported
- External Buzzer: Supported
- LED Control: Supported
- BEC: 5V at 1.5A; 10V at 1.5A
- USB Port: Micro USB

Size & Weight:
- Size: 32x32mm
- Weight: 3.3g

Applications:
- For 300mm above FPVs

Package Included:
- 1 x Set of Flight Controller
