Holybro Pixhawk 6C (Plastic Case) Flight Controller & PM07 Power Supply & M9N GPS for FPV RC Flight Control
Description:
- The Pixhawk 6C is the latest update to the successful family of Pixhawk flight controllers, based on the Pixhawk FMUv6C Open Standard and the Pixhawk Autopilot Bus Standard. It comes with PX4 for Autopilot pre-installed. Inside the Pixhawk 6C, you can find an STMicroelectronics based STM32H743, paired with sensor technology for Bosch & InvenSense, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.
- The Pixhawk 6C's H7 micro-controller contain the For Arm Cortex-M7 core running up to 480MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models. The FMUv6C open standard includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.
- The Pixhawk 6C is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.
Specification:
- FMU processor: STM32H743, 32bit ARM Cortex-M7, 480MHz, 2MB flash memory, 1MB SRAM
- IO processor: STM32F103, 32bit ARM Cortex-M3, 72MHz, 64KB SRAM
- Onboard sensor:
Accelerator/gyroscope: ICM-42688-P, BMI055
Compass: IST8310
Barometer: MS5611
- Rated voltage:
Maximum input voltage: 6V
USB power input: 4.75 - 5.25V
Servo input: 0 - 36V
- Rated current:
TELEM1 maximum output current: 1.5A
Other ports combination output current limit: 1.5A

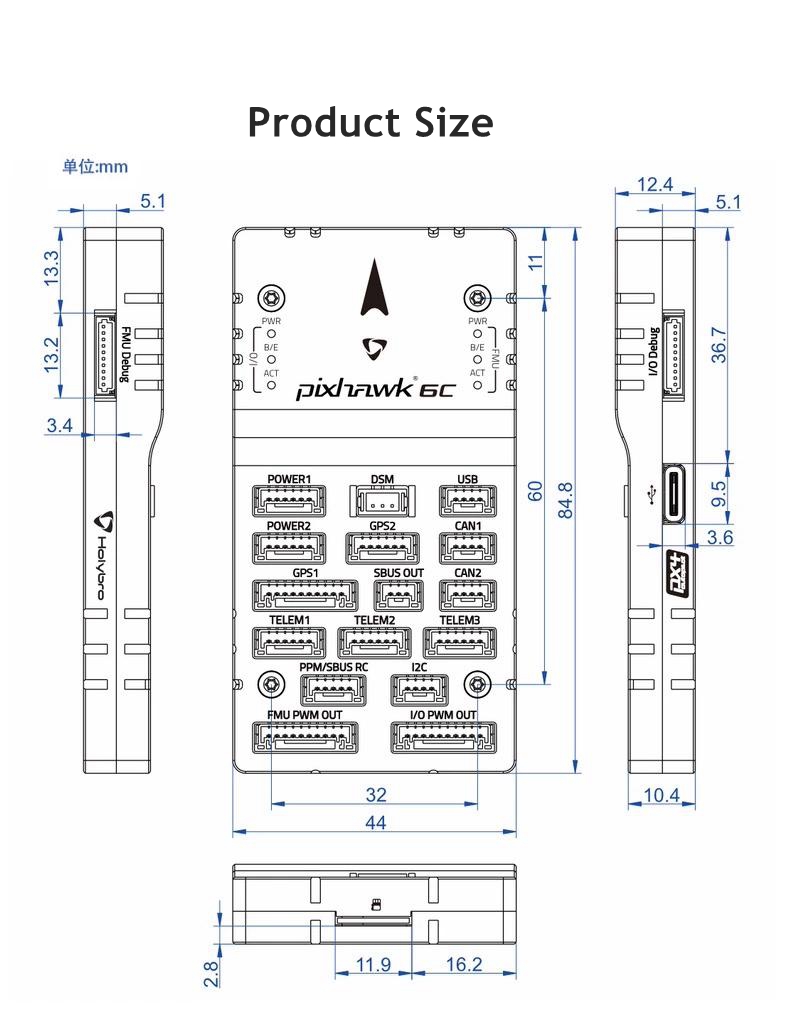

- Product size: 84.8 x 44 x 12.4mm
- Net weight: 34.6g

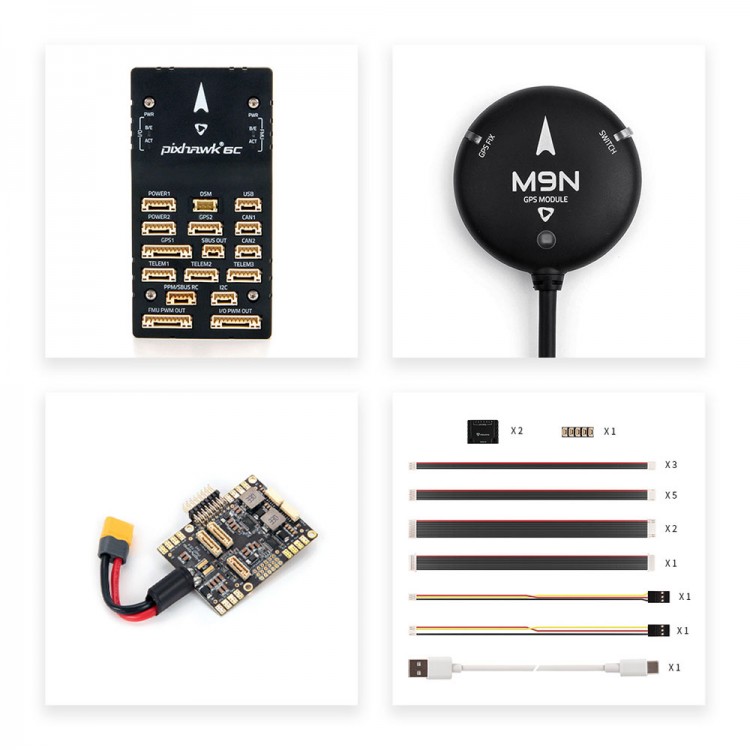

Package Included:
- 1 x Pixhawk 6C
- 1 x M9N GPS Module
- 1 x PM07 14S Power Supply Module

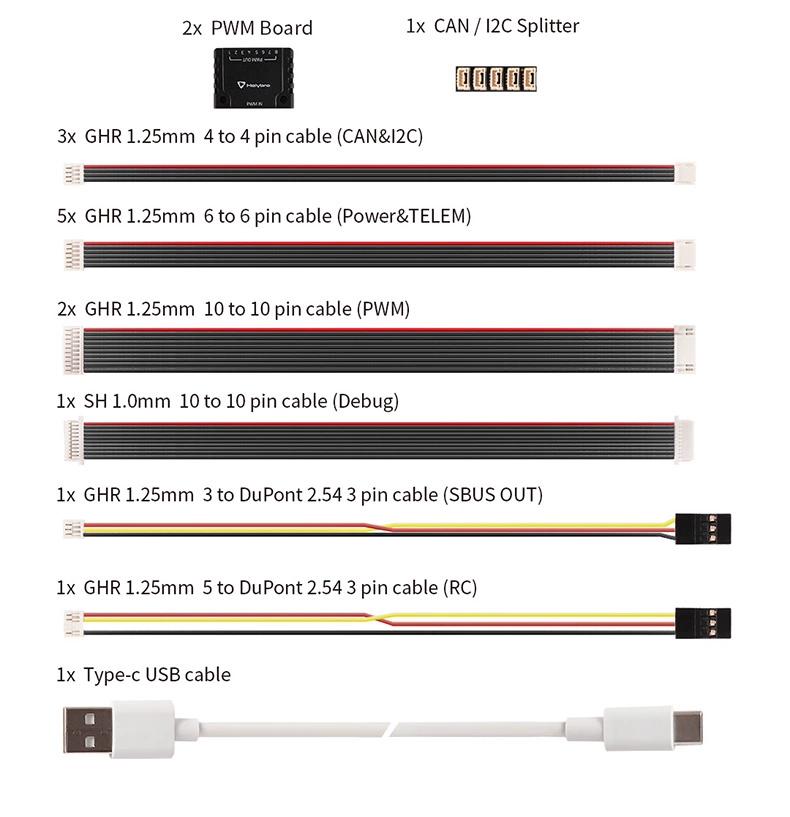

- 1 x Cable Set
