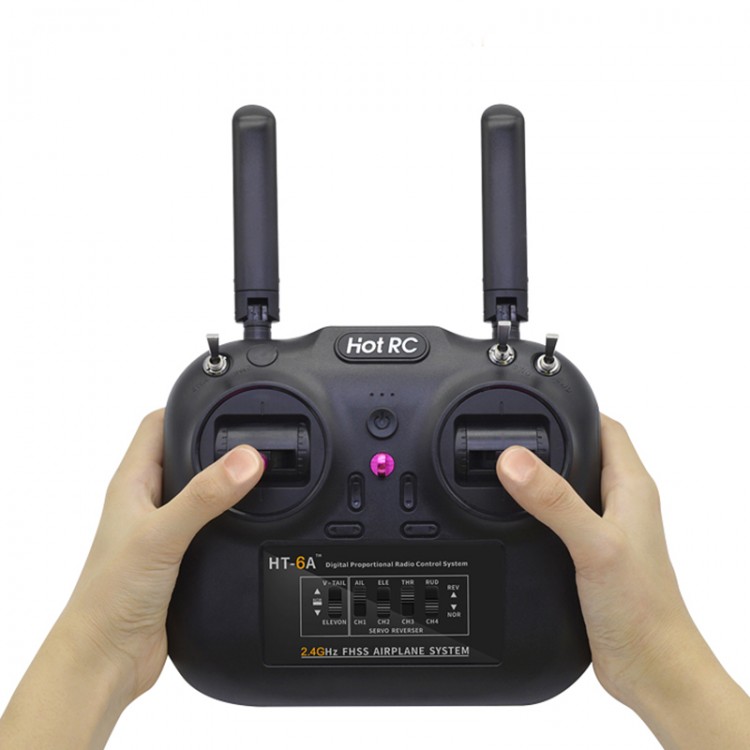

HOTRC Remote Control 6 Channel 2.4G Controller with Receiver for RC Fixed-wing Multi-rotor Model
Specifications:
Remote Control:
Application: fixed wing / multi-rotor / car model / ship model / drone
Channel: frequency range: 2.4Ghz ISM band (2.4005-2.4835GHz)
Product size: about 17*14.5cm
Package weight: about 410g
Transmitting power: <100MW
Modulation mode: GFSK
Spread spectrum method: FHSS
Response speed: PWM: >20 ms; SUBS: >6.8MS
Remote control distance: 800m
Receiver sensitivity: < -97dbn
Transmitter power supply range: DC 4.5V-9V
Receiver power supply range: DC 4.5V-6V
Safety certification: CE0678, FCC
Receiver:
Frequency band: 2.400GHz-2.483GHz
Size: about 4.4*2.3*1.5cm
Weight: about 8g
Ground straight distance: about 800m
Receiver power supply voltage: DC: 4.5-6V
Recovery performance: fast signal recovery
Receiver signal: PWM / SBUS
Antenna type: external antenna
Frequency mode: code line frequency
Features:
-2.4G and 6 channels
-PWM and SUBS receiver
-Flight control receiver
-New design
-One controller for multiple uses
-Simulation exercise
-Out of control protection
Frequency Method:
Step 1. Plug in the code reader.
Step 2. Power on the receiver.
Step 3. Turn on the remote control.
Step 4. Unplug the code reader.
Step 5. The receiver light is always on (successful frequency matching).
Packing List:
-1 x Remote Control
-1 x Instruction
-1 x Code Reader
-1 x Receiver
-1 x Package Box
