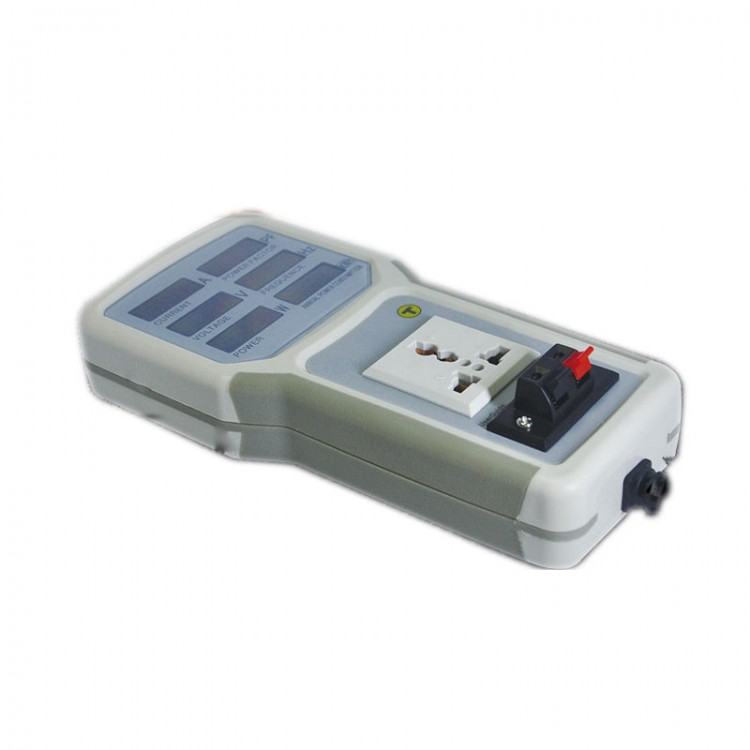

HP-9800 20A Handheld Power Meter LED Energy Saving Lamps Tester

HP-9800 20A Handheld Power Meter LED Energy Saving Lamps Tester

1.RMS Current Display range: 0.002A~20A (HP-9800)
2.Power Factor Test range: 0.001~1. 000
3.RMS Voltage Test range: 85V~265V
4.Frequency Test range: 45 Hz~65 Hz
5.Active Power test range: 0.5W~4400W (HP-9800)
6.Annual Power Consumption display range: 0~9999kW
7.Key: adjust hours, display model,clear energy data
8.Power outlet 20A/250V max Output
9.AC Input power cord 20A/250V max
10.Label
11.Rear cover
12.Rear cover lock
13.Auxiliary AC out N
14.Auxiliary AC out L
15.USB-to-Serial Com Port (Optional)

Buttons can be adjusted to change work time every day,function selection, reset the total quantity and total time,set the limit alarm.
The instrument can display voltage,current,power,power factor,power grid frequency,annual voltage.

Product Description:
- This mainly used to test energy saving products'information like power,power factor,total electricity consumption,total testing time and other project test.For LED lamp testing.
- Connect the computer via USB port,you can check testing information and copy them to your computer,and then you can analyze the information.
- Name: Electric Power Tester
- Condition: Brand New From Factory
- Model: HP-9800 20A
- Voltage: 100V-240V AC 50/60Hz
- Power: 4400W
- Size: 20X 20 X 3.5cm
- Weight: 800g

Menus & Button:
- RPC: Annual Electricity Consumption
- H -: Active Energy
- RH-: Reactive Energy
- L-UP: Power Alarm Upper Limit
- Short Press: Press the button time <1 second
- Press: Press the time button> 2 seconds

Features:
- HP-9800 is a handheld saving tester which has ability of testing the device via sustaining 20A current.
- It can meet the IEC,ANSI and JIS industry standard.
- It can long-time test,and stable performance.
- Copy and analyze testing data via USB connecting.

Package List:
- 1 x Electric Power Tester
- 1 x User manual
