HPC350 Upgraded Version Spectrum Illuminometer 380-780NM High Precision Illumination Meter Support TM-30 Testing

HPC350 Upgraded Version Spectrum Illuminometer 380-780NM High Precision Illumination Meter Support TM-30 Testing

Features:
- 5.0" IPS HD LCD touch screen enables easy operation and clear display of test results
- One-key measurement: place the instrument around the light source to be measured, and press to measure
- 6G storage; support handheld operation; accurate measurement data
- Widely used: Suitable for LED R&D, stage design, plant growth, indoor lighting, jewelry identification, etc.
- Compact size and light weight makes it portable to carry
- The long-focus crossed asymmetric CT spectroscopic system has good measurement linearity and measurement accuracy
- Integrate measurement functions such as spectrum, illuminance/brightness, and chromaticity
- No need to calibrate the zero position before use or worry about inaccurate test results caused by temperature drift during use
- TM-30 measurement function (color gamut index Rg, fidelity index Rf)

Specifications:
- Spectral Broadband: 2nm
- Sensor/spectral mode: high precision CCD, long focal cross asymmetric CT spectroscopy system
- Color screen: 5" IPS HD LCD touch screen
- Illuminance test range: 1-2000k Lux; Resolution: 1Lux
- Wavelength measurement range: 380nm-780nm
- Accuracy of wavelength: ±0.5nm
- Chromaticity Coordinate Accuracy: ±0.0025; Resolution: 0.0001
- Correlated color temperature measurement range: 1500-25000K, accuracy: ±3%
- Resolution: 1K
- Color rendering index measurement range: 1-100
- Total color difference accuracy: within ±0.2 (measurement conditions: under standard A light source)
- Product size: 156 x 81mm/6.1 x 3.2"

Measurable Parameters:
- TM-30 measurement function (color gamut index Rg, fidelity index Rf)
- Correlated Color Temperature TC (K), Blackbody Deviation DUV
- Illuminance E (LX), Candela E (FC) and Irradiance EE (W/M2)
- Chromaticity coordinates (X, Y), (U, V) and (U', V')
- Relative spectral power distribution P(λ)
- Color rendering index RA, RI (I=1~15)
- Color Tolerance SDCM (McAdam Ellipse, Rectangle Box and CIE UV' Circle)
- Dominant wavelength, peak wavelength, center wavelength, centroid wavelength, half width
- Light to dark vision ratio S/P
- Color Purity, Red Ratio, Green Ratio, Blue Ratio, CIE1931 Tristimulus Values X, Y, Z
- More function parameters can be customized

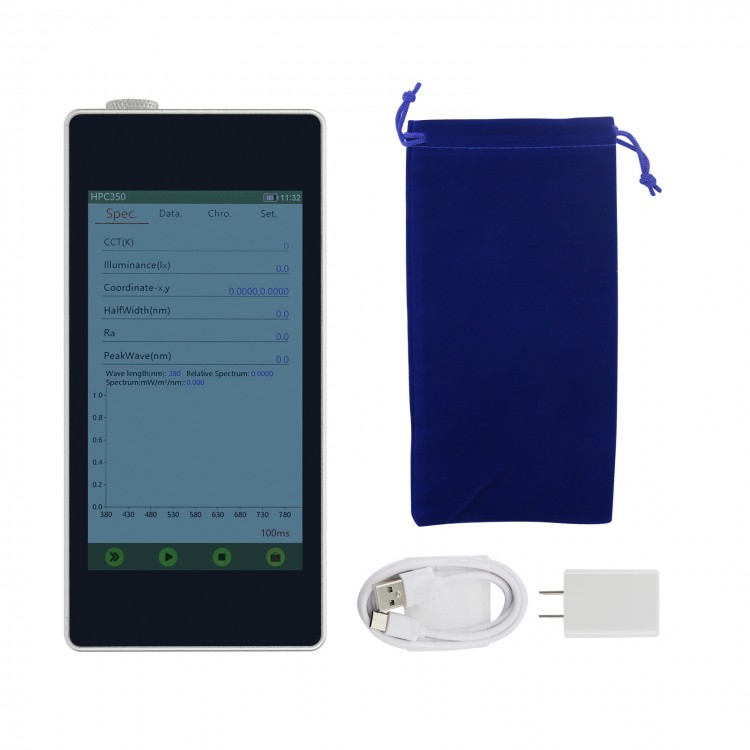

Package Included:
- 1 x HPC350 Main Unit
- 1 x 5V 1A Charger
- 1 x Type-C USB Data Cable
- 1 x Cloth Bag
- 1 x Product Quality Certification
