HRD-101 Portable Mini DAB Radio FM Radio DAB Digital Audio Broadcasting Digital Pocket Radio

HRD-101 Portable Mini DAB Radio FM Radio DAB Digital Audio Broadcasting Digital Pocket Radio

Description:
HRD-101 is a DAB digital radio.

As a digital signal broadcasting, DAB is the third generation of broadcasting after FM.AM traditional analog broadcasting.

Advantages:
- The anti-interference is better, the sound quality is relatively better, and the transmission efficiency is higher.
- Currently applied to these countries/areas: Australia, Belgium, Czech Republic, Denmark, France, Germany, Gibraltar, Hong Kong, Ireland, Italy, Kuwait, Malta, Monaco, Netherlands, Norway, Poland, Slovenia, South Korea, Spain, Sweden, Switzerland, United Kingdom. (The update date of this information is October 2017, more applicable countries will be updated later)

Features:
1. Made of ABS raw materials, the shell has been specially processed.
2. Fashionable shape. With a lanyard, it is convenient to use.
3. LCD displays channel, the volume is adjusted to MIN-29 level.
4. Mono and dual channels are interchangeable.
5. When the radio is off, it can display the time (12 hours/24 hours are optional), date, and battery use symbols.
6. It uses lithium batteries (for customers who want to use dry batteries, customization service is offered).
7. The display's brightness is adjustable (general bright, bright, brighter).
8. The product is designed with a main power switch. When it is not used for a long time, please turn off the main power to prevent battery leakage.

Product Parameters:
1. Frequency receiving range: DAB band: 174.928-239.2MHZ. FM band: 87.5-108MHZ (step: 0.05MHZ)
2. Receiving sensitivity: ≤15dB
3. Distortion degree <0.5%
4. Stored stations: 40pcs (FM/DAB can store 20pcs separately)
5. Tuning method: automatic tuning, manual tuning, memory access
6. LCD screen display (using LCD dot matrix screen): blue background with black words
7. Time equipment: 12/24 hours optional
8. Lithium battery specification: 500MA 3.7V
9. Charging socket: Micro USB socket
10. Product size: 90x54x13MM
11. Net weight: 0.1KG

These test reports of lithium batteries can be provided.
- MSDS report
- 1.2m drop test report
- UN38.3 report
- Aviation report

Attention:
It is designed with a lithium battery with a toggle plug. If the lithium battery is broken, users can replace the battery. The specification of the lithium battery is: 902030.

Package Included:
- 1 x Set of Radio

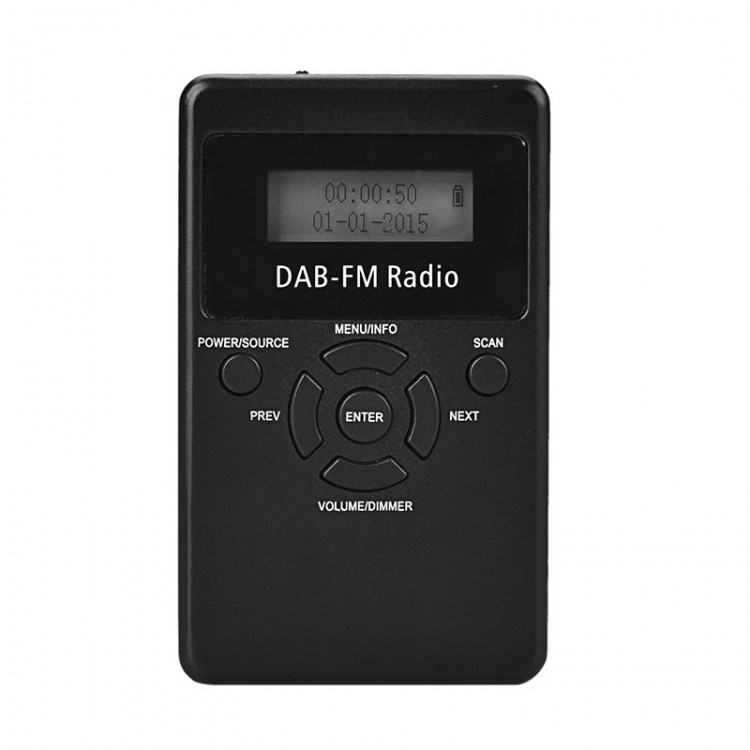

Introduction of Buttons:
- POWER/SOURCE: Turn ON/OFF or Switch modes. POWER: Press lightly to turn on. Long press to turn off. SOURCE: When the radio turns on, press this button lightly to switch between DAB/FM radio modes.
- MENU/INFO: Menu. In power-on state, long press it to enter the menu to select (information can be input by coding program)
- ENTER: Confirm button. Select content in MENU, press this button to confirm.
- VOLUME/DIMMER: After pressing this button shortly, press PREV, NEXT to change volume. After long pressing this button, press PREV, NEXT to adjust display brightness.
- SCAN: Short press to tune.
- PREV: Search forward stations. As for VOLUME, press this button to turn down.
- NEXT: Search for radio stations backward. As for VOLUME, press this button to turn up.
