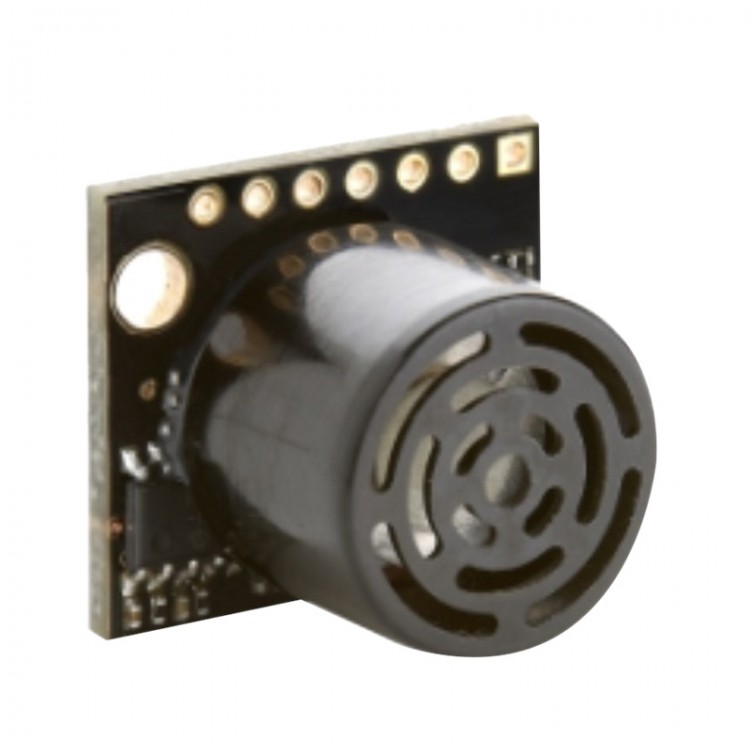

HRLV-MaxSonar-EZ4 MB1043 2.5-5.5V Ranging Module Ultrasonic Ranging Sensor
Introduction:
The easy-to-use ultrasonic rangefinders from Maxbotix work the same way as the EZ line that you know and love, but this new high-resolution series features 1 millimeter resolution! As with the rest of the Maxbotix range finders, these sensors feature Analog Voltage, RS232 Serial, and Pulse Width outputs making them easy to interface with any microcontroller. These sensors have a maximum range of 5000 mm (195 inches) with virtually no dead zone (although objects closer than 30 cm will typically range as 30 cm).
Technical Specifications
Parameters:
- Operating voltage: 2.5-5.5V
- Resolution 1mm
- 42KHz Ultrasonic Ranging Module
- 3.1mA operating current
- No dead zone
- 10Hz read rate
- RoHS compliant
- You can read any of the output signals: analog voltage, RS232 and TTL serial interfaces, pulse width
- Small and light module
- Designed for quick assembly
- Operating temperature: -15 °C to + 65 °C
- Almost no blind spot, objects close to 30cm to 30cm would go
- Real-time automatic calibration (voltage, humidity, ambient noise)
- The firmware for the better noise tolerance and noise suppression Optimized
- Real-time automatic calibration (temperature, humidity, ambient noise)
- The maximum measuring distance 5000mm (195 feet)
- Built-in temperature compensation, HR-MaxTemp outside temperature compensation
- Size: 22x20x25mm
Shipping list:
- EZ3 ultrasonic ranging module MB1043* 1 pcs
