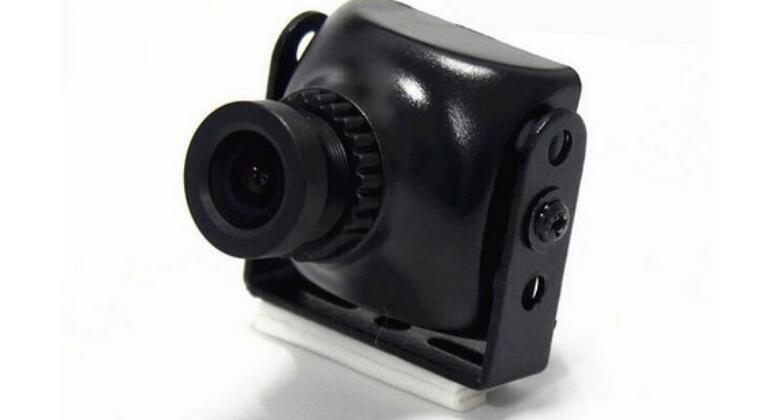

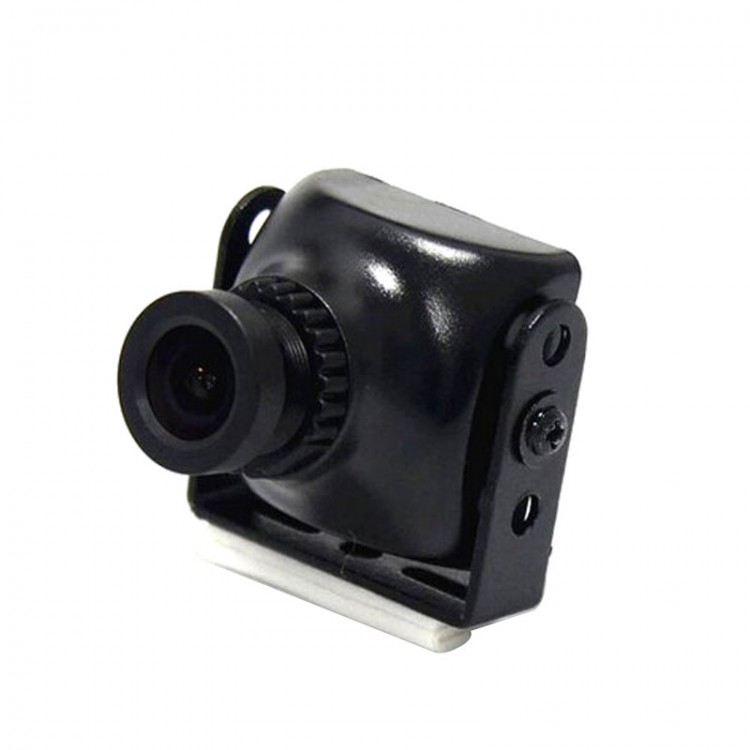

HS1177 1/3 SONY Super HAD II CCD Board FPV Camera 2.8mm Lens Mini Version of CC1333 600TVL
Product Description:

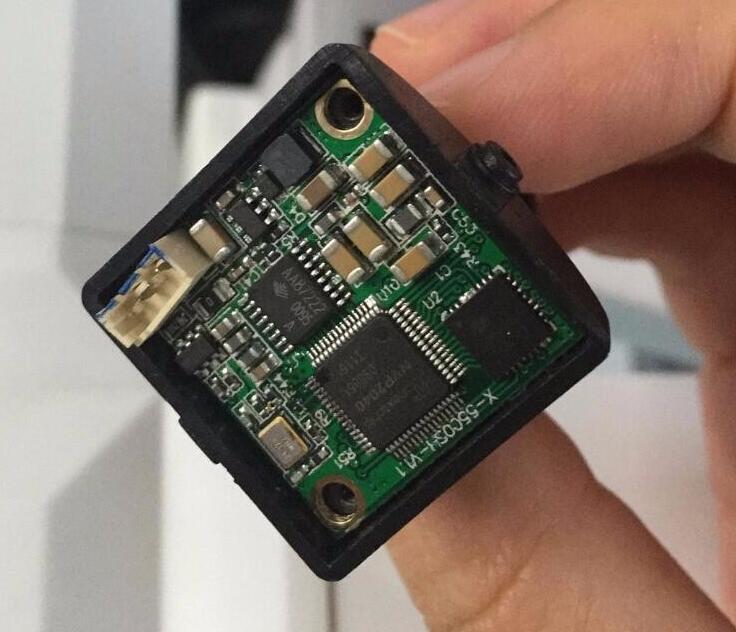

- This is a mini version of the classic CC1333 600TVL Sony Super Had II CCD board FPV camera. It uses a 1/3" Sony Super HAD II CCD, Nextchip 2040 DSP, D-WDR, 2D-DNR, minimum illumination reach 0.01 Lux (black/white) with a powerful OSD.
- A customized 3pin servo cable is also included.
Features:
- 600TVL high picture quality
- 1/3" SONY SUPER HAD II CCD
- Nextchip 2040 DSP
- Powerful OSD menu
- D-WDR (Wide Dynamic Range)
- 2D-DNR (Digital Noise Reduction)
- Low Power Consumption(70mA)
- Mirror function
- Privacy areas: 8 areas
- Low illumination: 0.01Lux

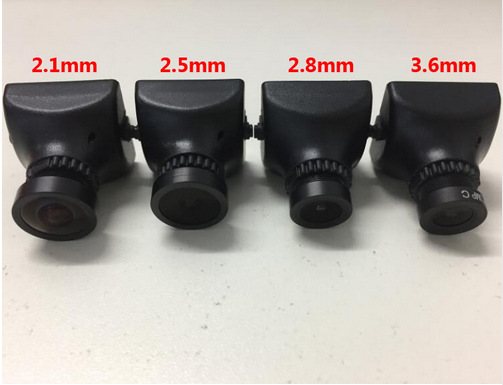

- 2.8mm Lens
- Low Power Consumption
- Suitable for FPV
Specifications:
- Model: HS1171
- CCD: 1/3” Sony SUPER HAD II CCD
- Pixel: PAL: 976(H) x 494(V);NTSC: 768(H)×494(V)
- TV System: PAL/NTSC(according to country)
- Resolution: 650TVL(b/w), 600tvl(color)
- Synchronization : internal synchronize
- Shutter Speed: (CCD IRIS) PAL: 1/50~1/100000 sec; NTSC: 1/60~1/100000 sec
- Noise: > 60 (AGC OFF)
- Video Out: 75ohm, synchronize
- Min. Illumination: 0.01Lux
- Auto Gain: Off/Low/Mid/High
- Back Light Compensation (BLC): Off /Back light compensation/ Strong light suppression
- Private shading (PRIVACY): 1~8 private shading area
- Motion Detection (MD): On/ Off (Multi level sensitivity settable)
- Auto White Balance: Manual / Auto / Auto track
- Mirror: Horizontal Mirror optional
- Negative: Positive / Negative optional
- Color to B&W: Auto
- DNR: 2DNR
- WDR: D-WDR
- Day / Night Shift: Auto/ Color/ B&W

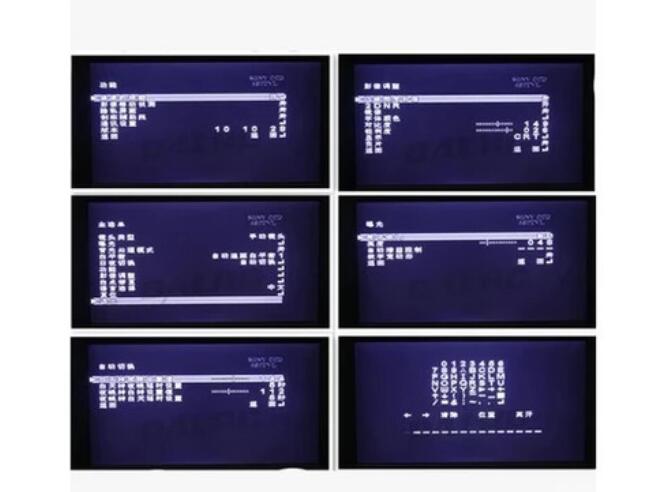

- Menu (OSD): English menu
- White Dot Repair: Support
- Image Adjustment: Support
- Camera Title: Support
- Power Requirement: DC5V~22V
- Working Temperature: -10 C ~ +50 C
- Working Humidity: 20~80%
- Storage Temperature: -40 C ~ +60 C
- Storage Humidity: 20~95%
- Dimensions(mm): 25X25(W*L)
- Power Consumption: 70mA
NOTE:This is the plastic cased version of this camera. See the related items for the heavier metal cased version.

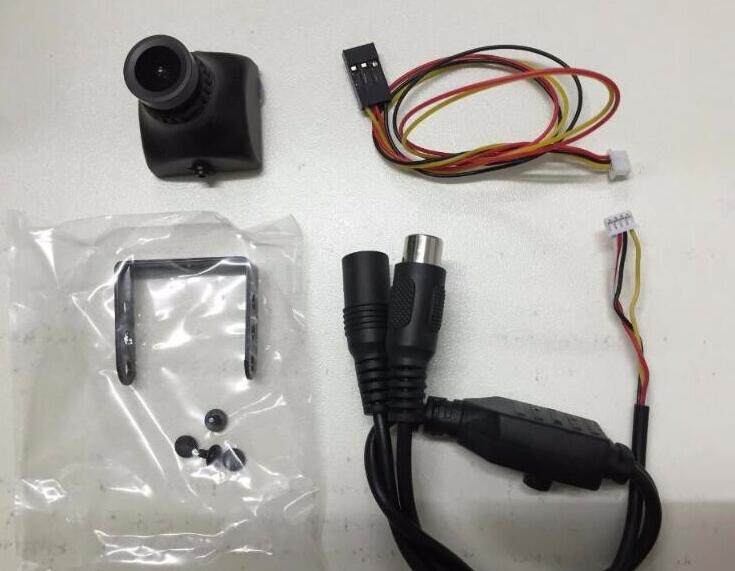

Package included:
- 1 x HS1177 1/3 SONY CCD Board FPV Camera
- 2 x Cables
- 1 x Camera bracket
- 4 x Screws
