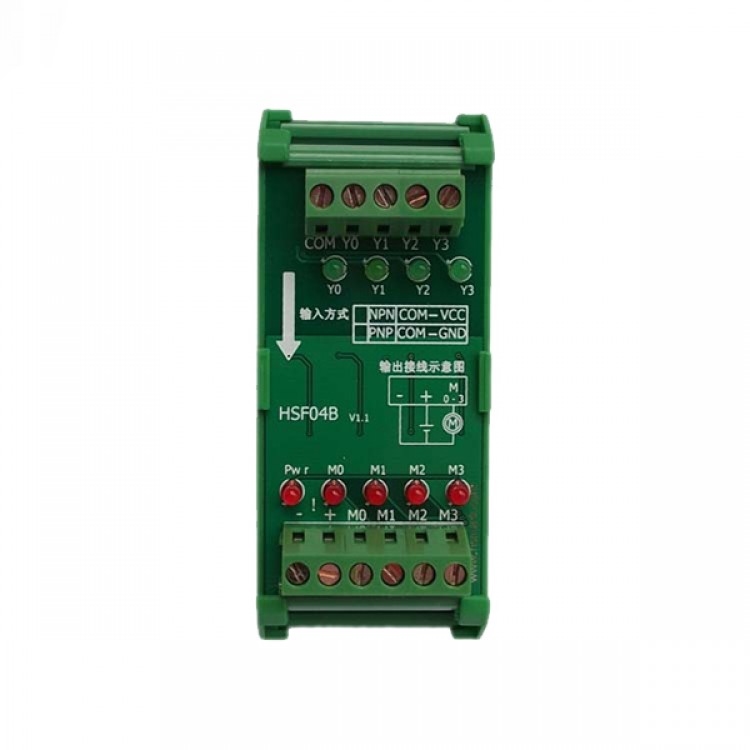

HSF04B 4CH PLC Output Relay Amplifier Photoelectricity Isolation Protection Board Transisitor Output Board for Mitsubishi Siemens

HSF04B 4CH PLC Output Relay Amplifier Photoelectricity Isolation Protection Board Transisitor Output Board for Mitsubishi Siemens

Features:
- Impact instructure, easy installation, smaller size good for reduce cost
- Output input state indicatior, directly show working state of every channel
- With standard guide card installation, easy installation and removal
- Convenient installation, 4 channels a group, can install the product according to demand, flexible , avoiding waste
- Input output port lies in different row, good for arranging wires
- Good looking, small and delicate
- Adopting SMT process, durable and strong anti interference ability
- Working current: 5A, smart short circuit protection
- Small on resistance, only 16mΩ, while relay on resistance is 50mΩ
- Tiny shut-off current consumption, reducing power consumption

Parameters:
- Output mode: default NPN (can be used as PNP or other trigger voltage）
- Input resistance: 5K
- Trigger current: <4mA
- Switch frequency: ≤1000Hz。
- Output mode: PNP
- Working voltage: 24VDC(+/-10%)
- Single channel maximum output continuous current: 5A
- Working temperature: 0- +70℃
- Storage temperatuire: -10-100℃；
- Dimension； L90 * W40 * H40 mm
- Installation mode: with standard guide card installation
- Protection level: IP40;
- State indication: output, input indicator, power indicator light.
- Working life: ≥10000000 times
