Description:

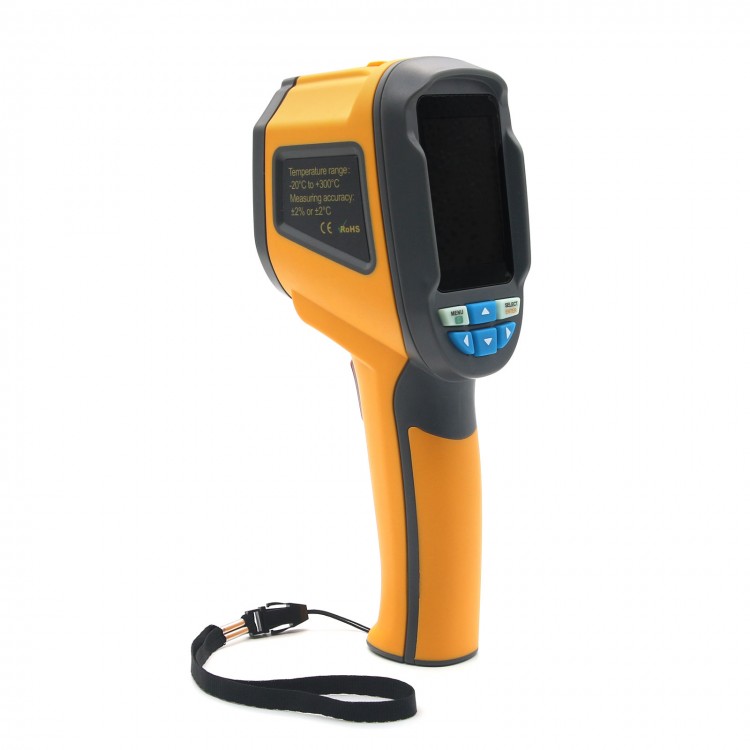

- Handheld thermal imaging camera is widely used in the medical, archaeological, transport, agriculture and so on. This infrared thermal imager combines the functions of surface temperature and real-time thermal imaging.
Features:
- Infrared thermal imager that can blend the visible and infrared images.
- Resolution of infrared image/visible image: 3600 pixels/0.3 mega pixels.
- This infrared imaging device is professional, precision and efficient.
- For car engine overhaul, transformer room line maintenance, air conditioner repair, etc.
- Our infrared thermal imager can turn thermal image into visional image, quickly find out the problem area.
Specifications:
- Display: 2.4 inch full viewing angle high-resolution color screen
- Resolution: 60 * 60
- Resolution of visible image: 0.3 mega pixels.
- Total Pixel: 3600
- FOV/Shortest Focal Length: 20× 20/0.5m
- Thermal Sensitivity: 0.5â
- Measuring Mode: Thermopile
- Temperature Range: -20â to 300â(-4â to 572â)
- Measuring Accuracy: ±2% or ±2â(±4â)
- Wavelength Range: 8-14?m
- Emissivity: 0.1-1.0 Adjustable
- Image Frequency: 6HZ
- Focus Mode: Fixed
- Palette: Iron red,rainbow,rainbow high contrast,gray scale(white glow) and gray scale(black glow)
- Vision Option: 5 kinds of full infrared to the full visual, mixing visible and infrared.
- Image Storage: SD card(4G)
- File Format: bmp
- Set Control: Unit Adjustment/Language/Date Time Format/automatic shut down
- Battery Type: 4 * 1.5V AA battery (Not Included)
- Battery Life: 6 Hours
- Auto Power-off Time: 12 Minutes
- Authentication: CE, RoHS
- Operating Temperature: -5â to 40â (23â to 104â)
- Storage Temperature: -20â to 50â (-4â to 122â)
- Relative Humidity: 10%RH to 80%RH
- Item Size: 21.2 * 9 * 6.2cm / 8.3 * 3.5 * 2.4in
- Item Weight: 231.2g / 8.2oz
- Package Size: 27 * 19 * 11cm / 10.6 * 7.5 * 4.3in
- Package Weight: 927g / 32.7oz
Package included:
- 1 * Thermal Infrared Imager
- 1 * SD Card(4G)
- 1 * User Manual
- 1 * Drop Resistance Rope
- 1 * Protection bag
