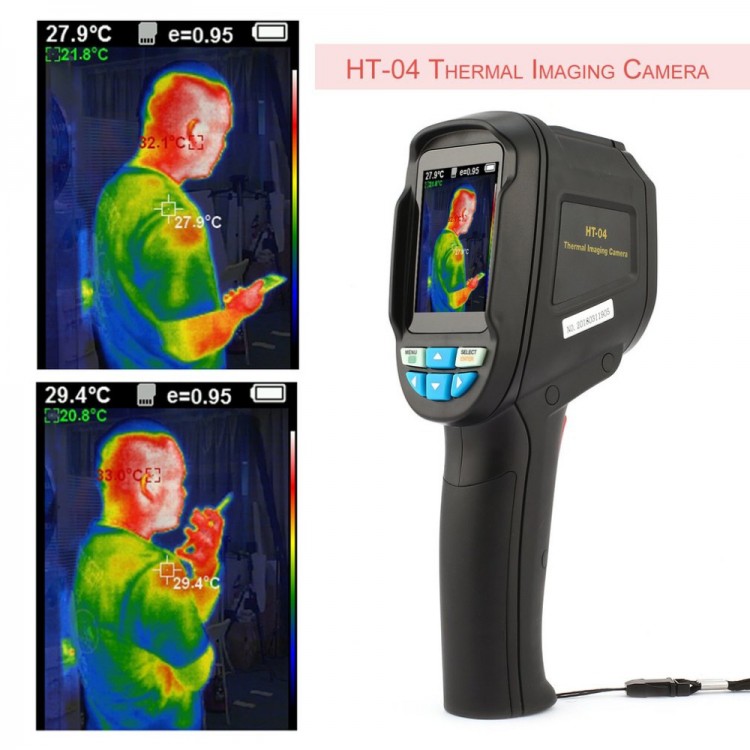

HT-04 Infrared Thermal Camera Thermal Imaging Camera 220*160 with 2.4 Inch Color Screen

HT-04 Infrared Thermal Camera Thermal Imaging Camera 220*160 with 2.4 Inch Color Screen

Description:
This professional handheld thermal imaging camera is widely used in the medical, archaeological, transport, agriculture and so on. The potential problems may be displayed on color display screen clearly. This is helpful for users to locate the measurement cursor of the central point quickly and measure the temperature. This infrared thermal imager combines the functions of surface temperature and real-time thermal imaging.

Features:
- Infrared thermal camera with 2.4" full-color screen & 220x160 infrared image resolution.
- Integrates surface temperature measurement and real-time thermal image with non-contact target.
- Resolution of visible image: 35200 pixels/0.3 mega pixels with real-time responses.
- Turn thermal image into visional image, quickly find out the problem area.
- Professional, precision and efficient thermal imaging camera for generating thermal distribution images immediately.
- For car engine overhaul, transformer room line maintenance, air conditioner repair, etc.

The following major functions increase the product's accuracy and usability:
1. The adjustable radiation coefficient increases the measurement accuracy of half reflection surface.
2. The thermal point and cold point temperature mark may guide the users to the area with highest or lowest temperature of thermal image.
3. The selectable color palette.

Specifications:
- Material: ABS
- Display: 2.4 inch full color screen
- Infrared Image Resolution: 220 x 160
- Resolution of visible image: 0.3 million pixel
- Total Pixel: 35200
- Field Angle / Shortest Focal Length: 27°×35°/0.5m
- Thermal Sensitivity: 0.07℃
- Measuring Mode: Thermopile
- Temperature Range: -20℃ to 300℃(-4℉ to 572℉)
- Measuring Accuracy: ±2℃ or ±2%
- Emissivity: Adjustable from 0.1 to 1.0
- Image Frequency: 8HZ
- Wavelength Range: 8-14μm
- Focus Mode: Fixed

- Color Palette: Rainbow, iron oxide red, cold color, black & white, white & black
- View Option: Full infrared and full vision Visible image with 25% step length
- Image Storage Medium: Built-in 4G
- Image Format: JPG
- Set Control: Unit Adjustment/Language/Date Time Format/Automatic Power-off
- Automatic Power-off Time: Selectable 5 minutes/20 minutes/ not power off automatically
- Battery Type: 4 x 1.5V AA Battery (Not Included)
- Operating Temperature: 0℃ to 50℃
- Storage Temperature: -40℃ to 80℃
- Relative Humidity: < 85%RH

Package Included:
- 1 x Thermal Imaging Camera
- 1 x User Manual
- 1 x Drop Resistance Rope
- 1 x Protection Bag
