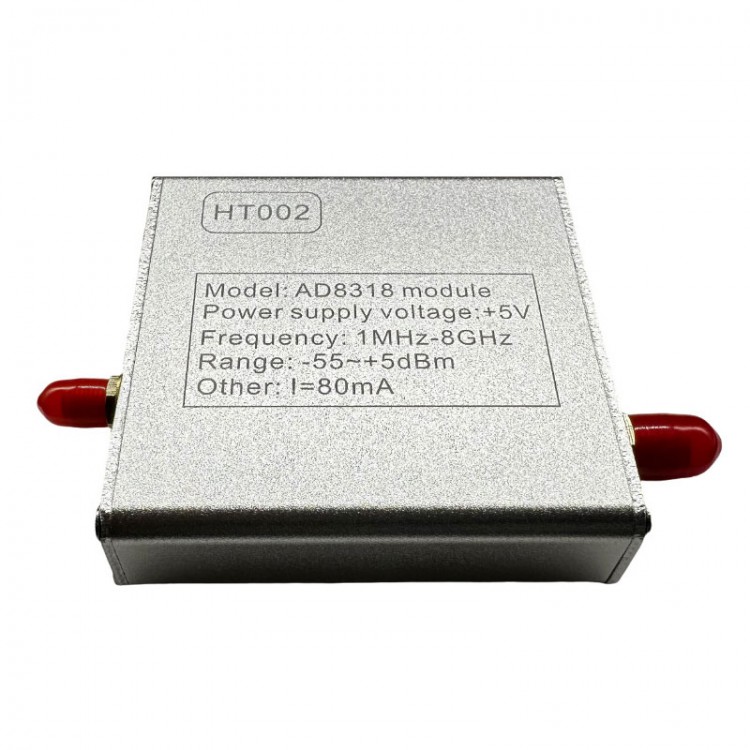

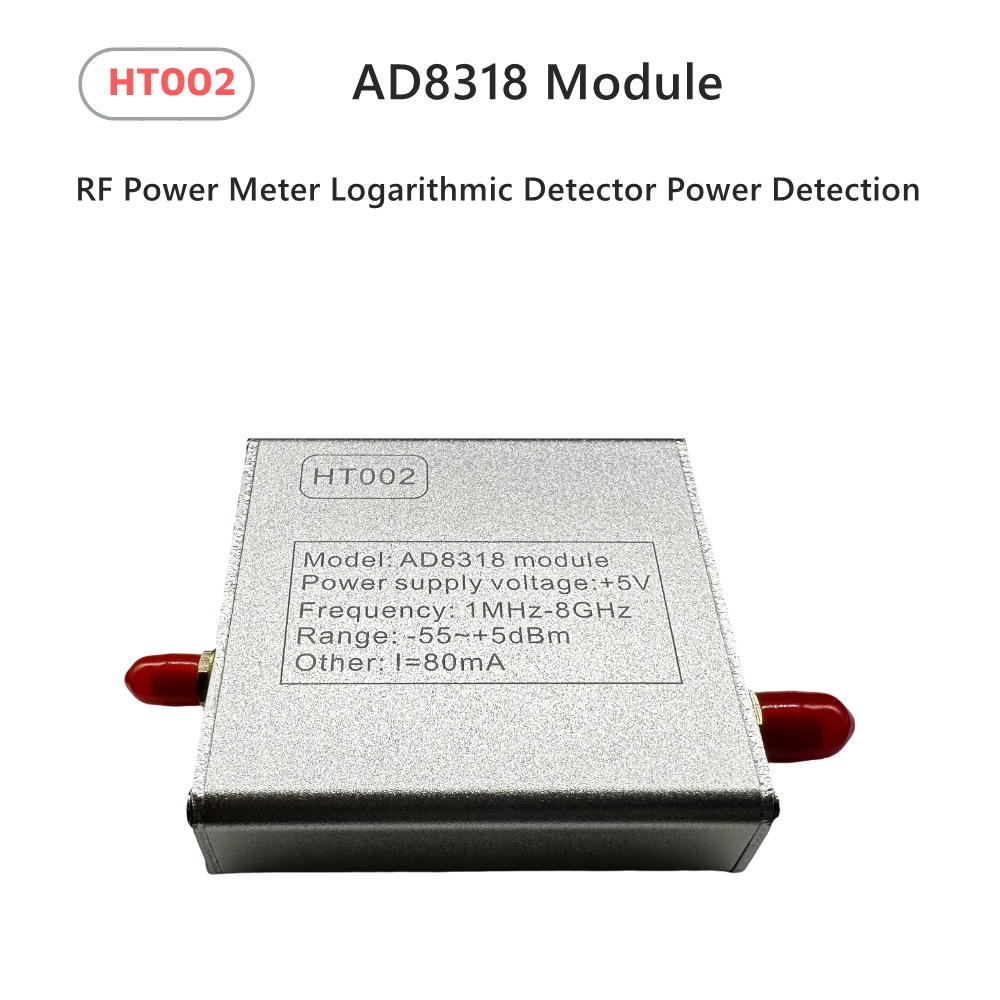

HT002 1MHz - 8000MHz RF Power Meter AD8318 Module Logarithmic Detector Controller for Power Detection
Specification:
- Input Impedance: 50 Ohms
- Output Impedance: 50 Ohms (Video Impedance)
- Operating Frequency Freq: 1MHz ~ 8GHz

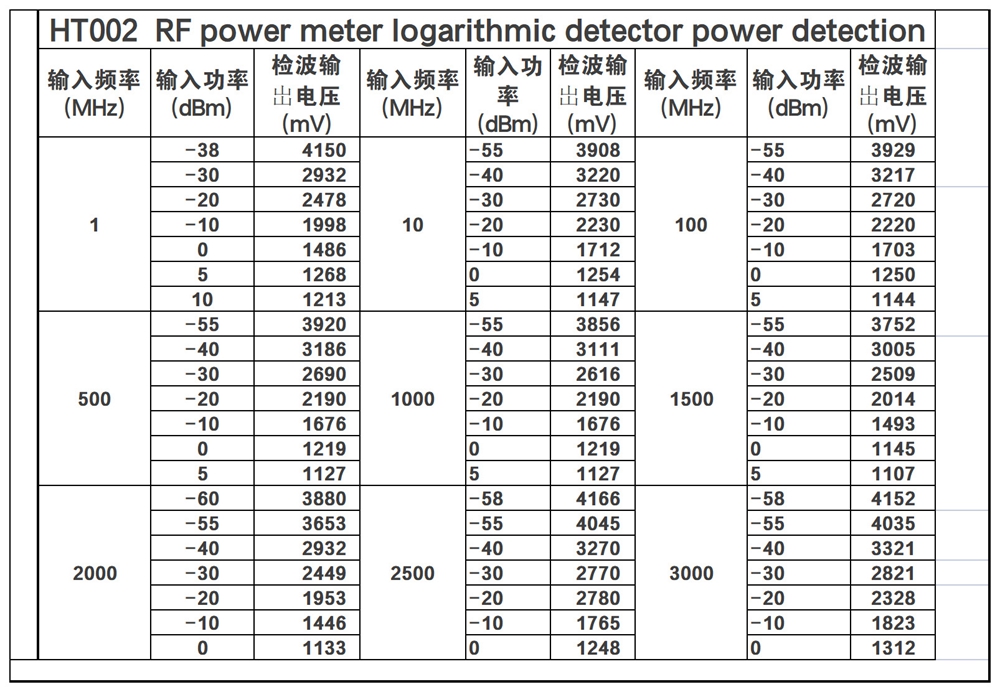

- Output Voltage Range: 2.1~0.5V (Corresponding to -65 ~ 0dBm)

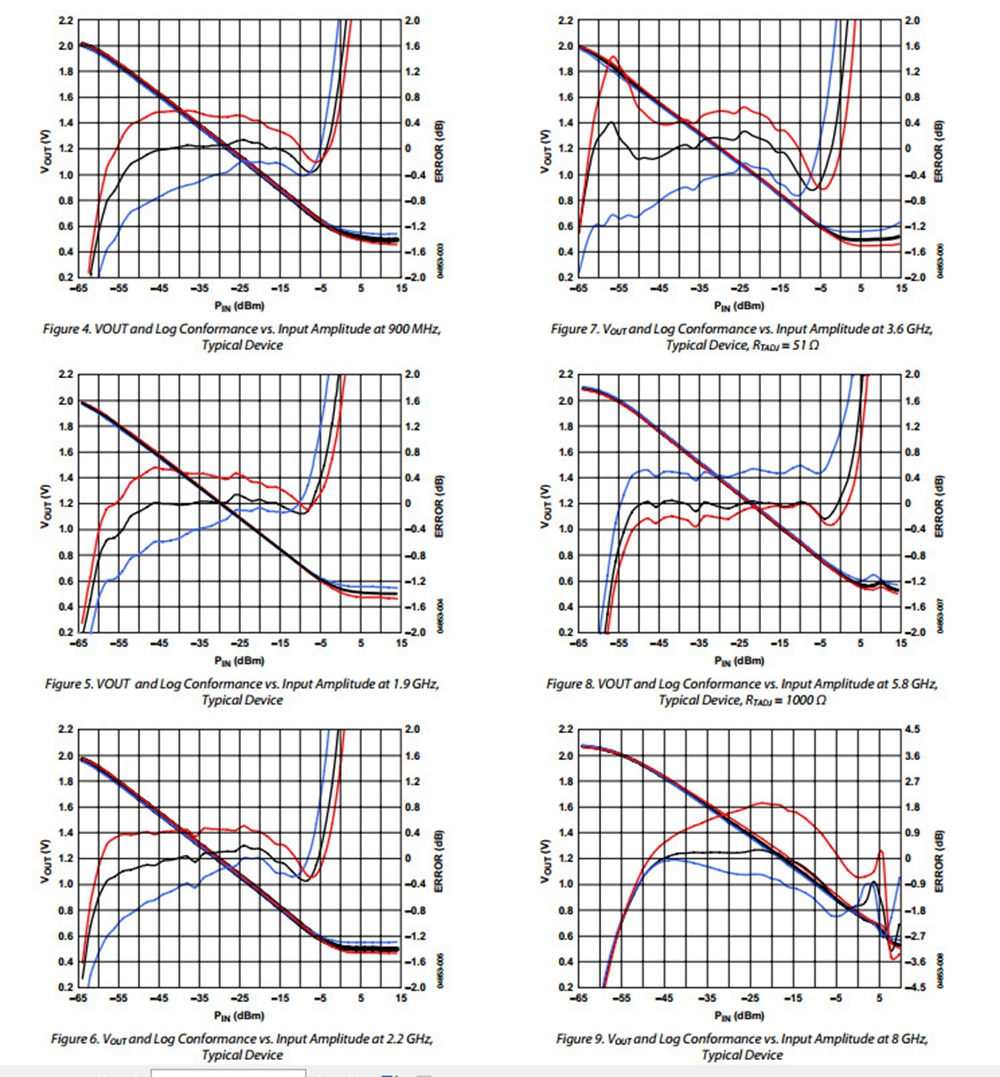

- Input/Output Ratio: ~-25mV/DBM
- Input Dynamic Range: -65 ~ 0dBm (high linear dynamic range: -60 ~ -5dBm)
- Power Supply Voltage: +7 ~ 9VDC with 5V voltage stabilization
- Working Current: 75mA

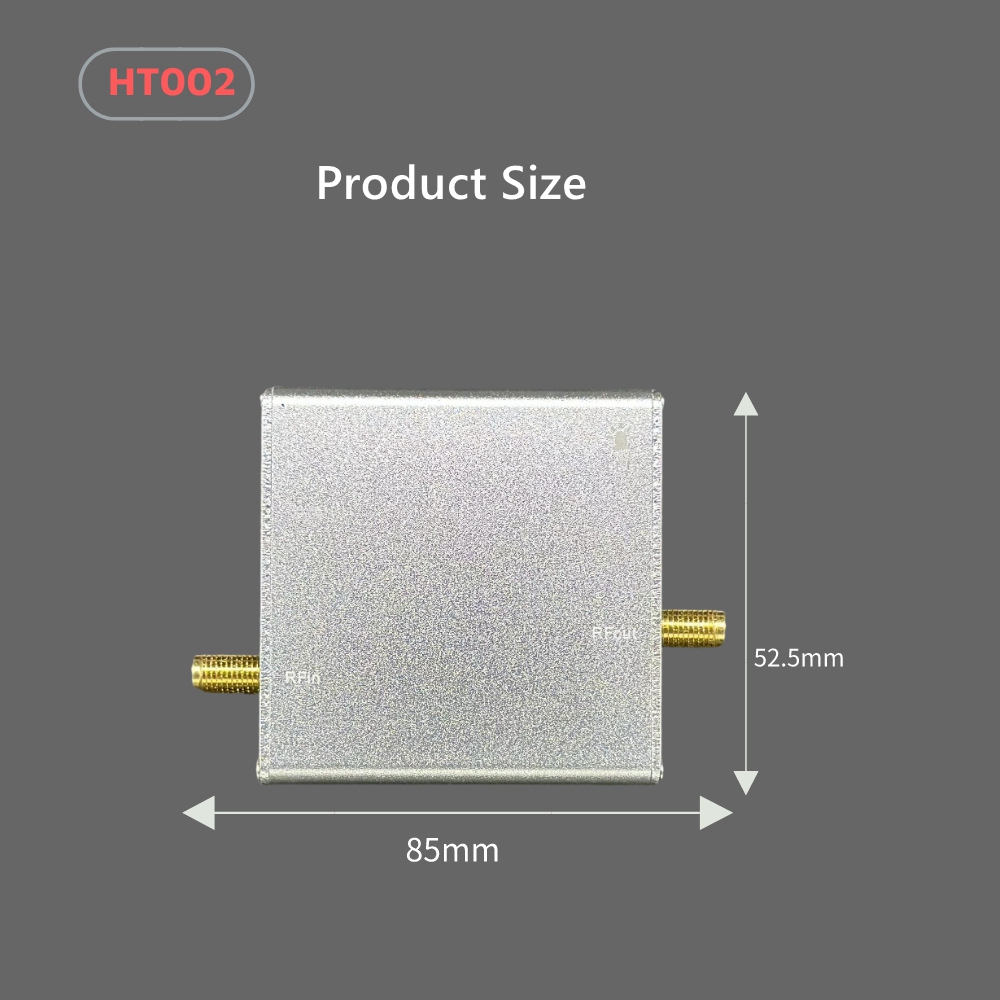

- Product Size: 85 x 52.5mm

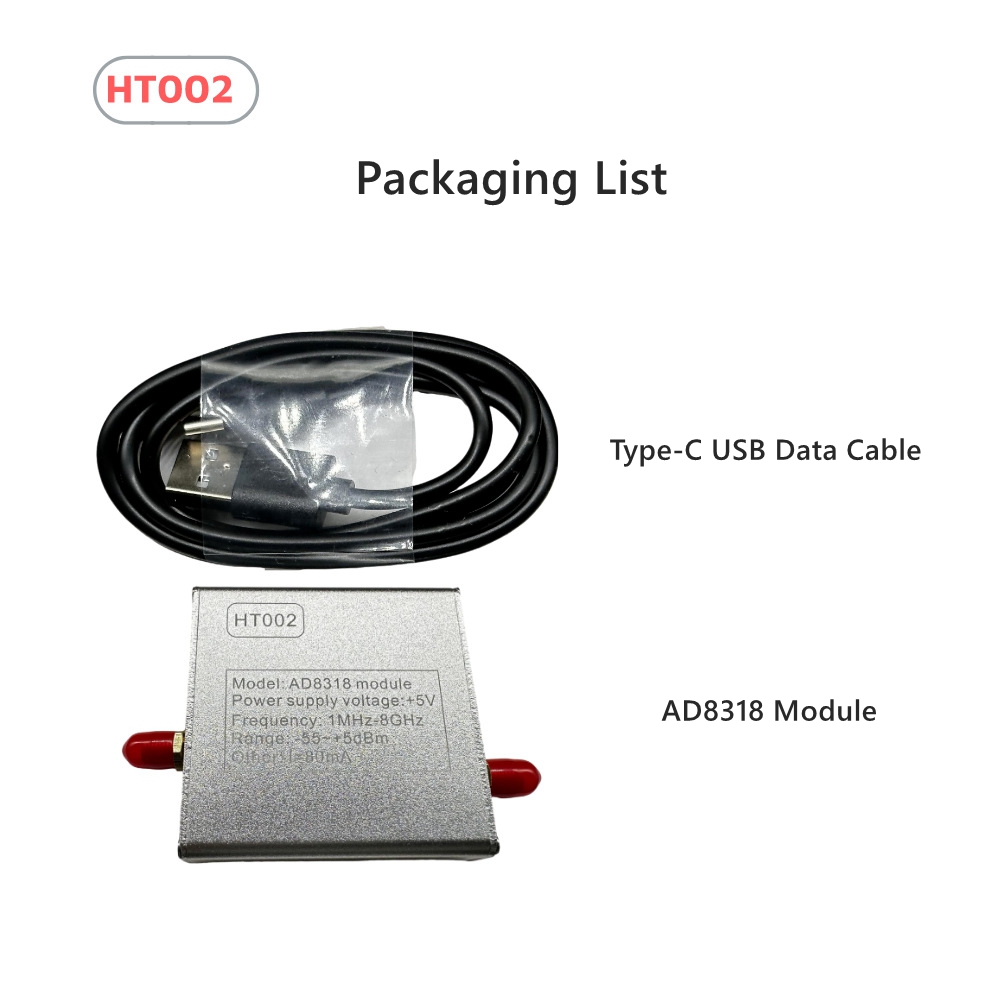

Package Included:
- 1 x HT002
- 1 x Type-C USB Data Cable
