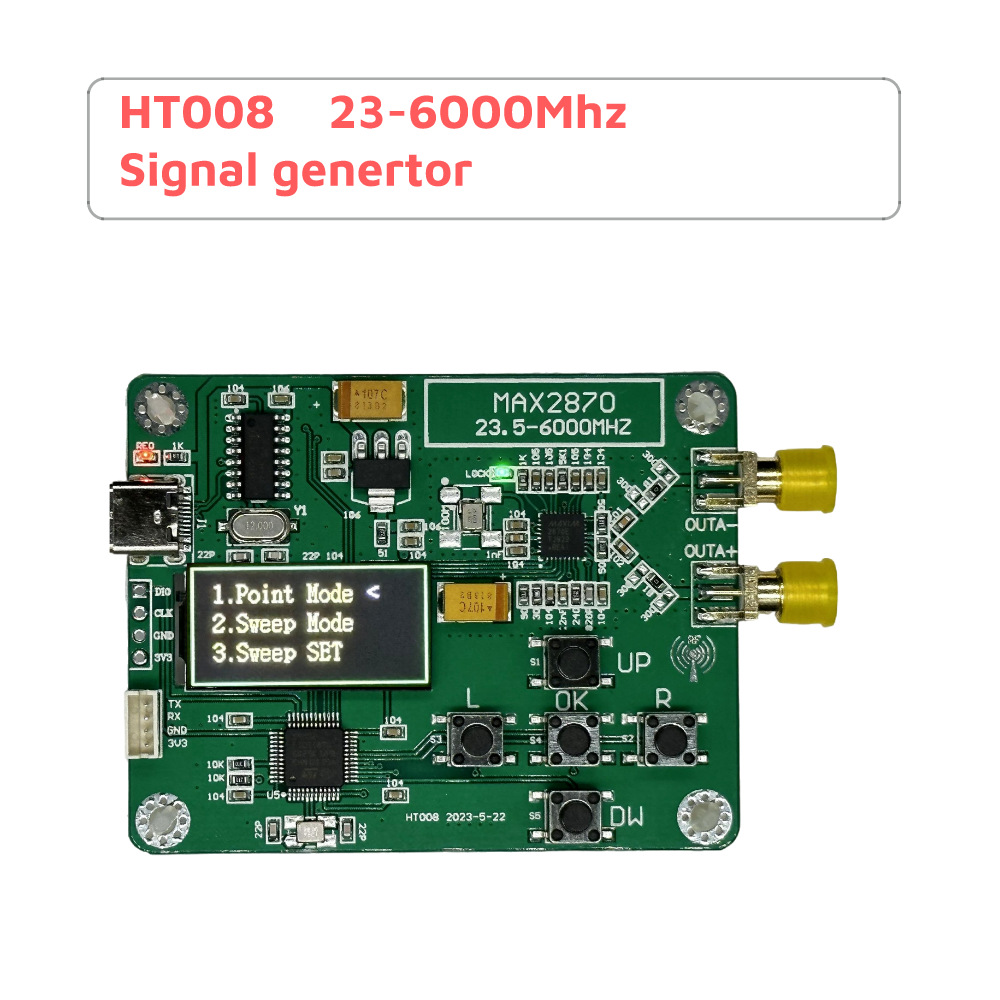

HT008 MAX2870 STM32 23.5 - 6000MHz Signal Generator Signal Source Support Point/Sweep Frequency Modes

Availability: Out Of Stock

  • Price:$40.24
  • Price in reward points: 402 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $39.44 $38.63 $37.42 $35.81 Contact US
Quantity:

HT008 MAX2870 STM32 23.5 - 6000MHz Signal Generator Signal Source Support Point/Sweep Frequency Modes

Specification:

- Frequency output range: 23.5 - 6000MHz with point/sweep frequency modes
- Minimum controlling precision: 0.001MHz
- Amplitude control: -4dB, -1dB, +2dB, +5dB
- Power supply mode: USB 5V power supply
- Controlling method:
  Adjust the frequency output through 5 onboard buttons.
  Serial port control method 1: onboard USB to serial port chip, which can be directly controlled by the computer without providing control software.
  Serial port control method 2: controlled by other hardware devices through the board serial port interface.
- Size: 80 x 53 x 8mm
- Weight: 100g

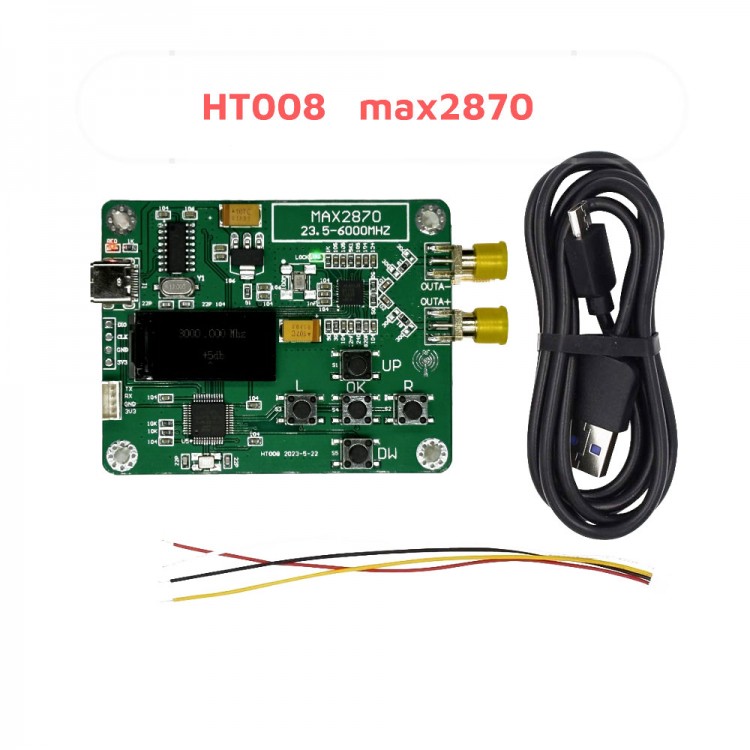

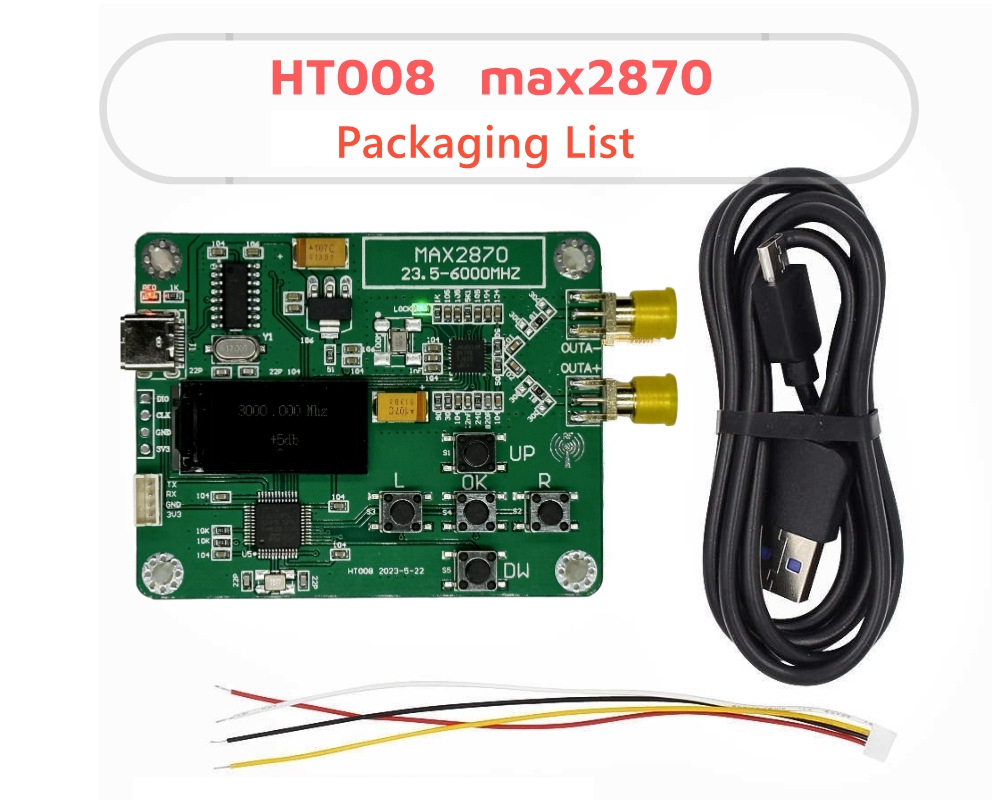

Package Included:
- 1 x Signal Generator
