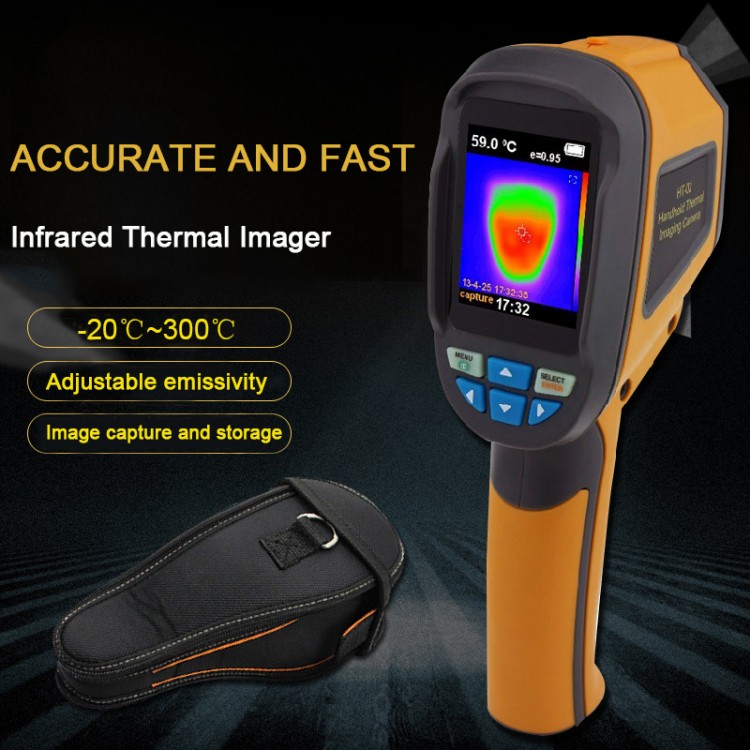

HT02 Handheld Infrared Thermal Imager Camera -20 to 300℃/-68℉ To 572℉ Resolution 60*60 3600 Pixels

HT02 Handheld Infrared Thermal Imager Camera -20 to 300℃/-68℉ To 572℉ Resolution 60*60 3600 Pixels


HT02 VS HT02D:
HT02:
- Infrared image resolution 60*60
- Total pixels 3600
- Field of view/shortest focal length: 20°*20°/0.5m (20°*20°/1.6ft)

HT02D:
- Infrared image resolution 32*32
- Total pixels 1024
- Field of view/shortest focal length: 33°*33°/0.5m (33°*33°/1.6ft)

Applications:
- Infrared imager for image catching and storage
- Suitable for medical, public security, fire protection, archaeology, transportation, agriculture, geology and other fields
- Used for transformer room line maintenance, air conditioning maintenance, automobile engine maintenance, high temperature measurement

Features:
- Durable and easy to use: IP54, dust-proof Ti9, passed 2m/6.6ft drop test
- Accurately locate hot spots: Clearly display heating problems, more accurate perception and safer measurement
-Quick troubleshooting: Highly cost-effective. Portable and ergonomic design
- Infrared thermal camera scans entire area at once, while infrared thermometer can only measure the temperature of a single point.
- Scan a large area, evenly measure the entire area or partial infrared visible light image, combined with high and low temperature catching greatly improves work efficiency
- Designed with image catching button, LED lighting, visible light camera, infrared imaging sensor
- A manual included in the package

Specifications:
- Display: 2.8" color screen
- Thermal sensitivity: 0.15℃/32.27℉
- Temperature measurement range: -20℃ to 300℃/-68℉ to 572℉
- Wavelength range: 8~14 microns
- Emissivity: 0.1~1.0 adjustable
- Palette: Iron/Rainbow/Black/White
- File format: jpg
- Adapter voltage: DC5V output
- Storage temperature: -40℃ to 70℃/-104℉ to 158℉
- Vibration resistance: 2G, IEC 60068-2-6
- Setting control: localization unit adjustment/language/date and time format/automatic shutdown
- Battery type: 4pcs 1.5V alkaline batteries (product with built-in 3V button battery)
- Infrared image resolution: HT02: 60*60; HT02D: 32*32
- Total pixels: HT02: 3600; HT02D: 1024
- Field of view/shortest focal length: HT02: 20°*20°/0.5m (20°*20°/1.6ft); HT02D: 33°*33°/0.5m (33°*33°/1.6ft)
- Temperature measurement accuracy: ±2% digital/±2℃ (±2% digital/±35.6℉)
- Image frame rate: 8HZ
- Image storage: SD card
- Focusing method: fixed
- Working temperature: 0℃ to 50℃/0℉ to 122℉
- Humidity: <90%RH
- Size: 230 x 80 x 52mm/9.1 x 3.1 x 2 inch

Package Included:
- 1 x Set of Infrared Thermal Imager
