Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $33.15 | $32.48 | $31.46 | $30.11 | Contact US |
Features:
- Full Function Multimeter: the professional multimeter has various useful functions for measuring DC/AC voltage, DC/AC current, resistance, capacitance, frequency/duty, temperature, and diode test, continuity test, non-contact AC voltage detection, live wire detecting.
- Temperature Measurement: -40~1000℃/-40~1832℉ wide test range, use the included K-type thermocouple probe to test the temperature of the target object, ℃/℉ unit switchable.
- Smart(AUTO) Measurement: this measurement mode is default when power on. In this mode, DC/AC voltage, resistance, continuity can be measured, and the meter can automatically identify the measurement signal.
- Max/Min & Relative Value Measurement: under the manual range mode, it can measure the maximum and minimum value(invalid in capacitance, frequency/duty cycle, temperature, NCV/live gear), and relative value(invalid in continuity, frequency/duty cycle, temperature, NCV/live).
- Flashlight & Data Hold: auxiliary light up the working areas under the low lit conditions, and you can press the data hold button to keep the measured value unchanged to write it down leisured.
- Low Consumption & Auto-off: powered by 3pcs 1.5V AAA batteries(not included), and if there is no operation in about 15 minutes, the tester will automatically shut down to save battery.
- Portable Pocket Size: compact designed is convenient to carry around, wrapped with a rubber sleeve to protect the multimeter once it fall from a height.
Specifications:
- DC Voltage: 99.99mV/999.9mV/9.999V/99.99V/999.9V
- AC Voltage: 99.99mV/999.9mV/9.999V/99.99V/750V
- AC/DC Current: 9.999mA/99.99mA/600.0mA/9.999A
- Resistance: 99.99Ω/999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ
- Capacitance: 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF
- Frequency/Duty: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
- Temperature: -40~1000℃/-40~1832℉
- Material: ABS
- Display: 9999 counts
- Sampling Rate: Approx. 3 times/second
- Over Range Indication: "OL"
- Environment Condition of Using: CAT.IV 600V, CAT.III 1000V, pollution level 2, altitude<2000m
- Working Temperature and Humidity: 0~40℃(<80%RH, <10℃ non condensing)
- Storage Temperature and Humidity: -10~60℃(<70%RH, remove the battery)
- Power Supply: 3 * 1.5V AAA battery (NOT included)
- Item Size: 165 * 83 * 23mm / 6.49 * 3.27 * 0.91in
- Item Weight: 249g / 8.80oz
- Package Weight: 467g / 16.48oz
- Package Size: 20.3 * 10.7 * 5cm / 7.99 * 4.21 * 1.97in

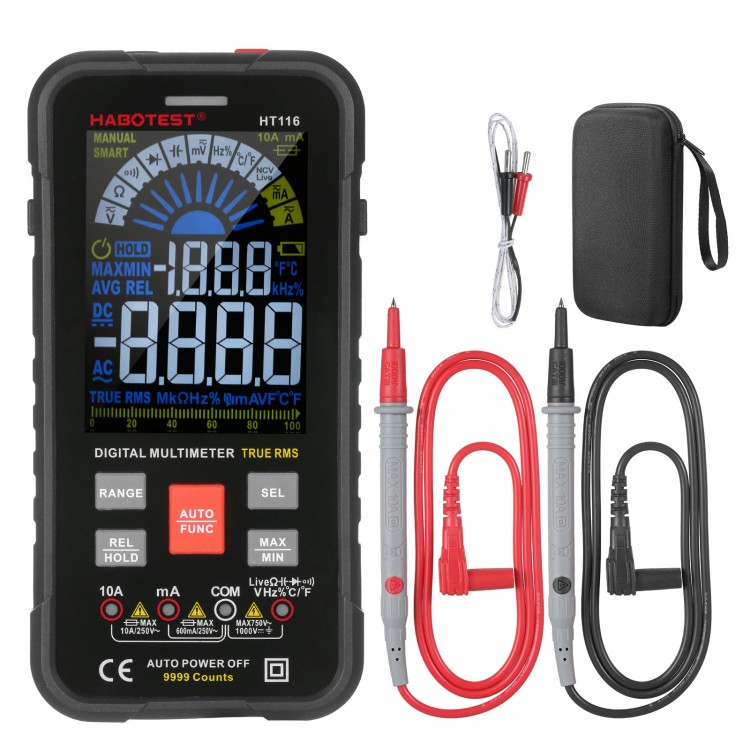

Packing List:
- 1 * Multimeter
- 1 * Pair of Probe
- 1 * Thermocouple
- 1 * Manual (English)
