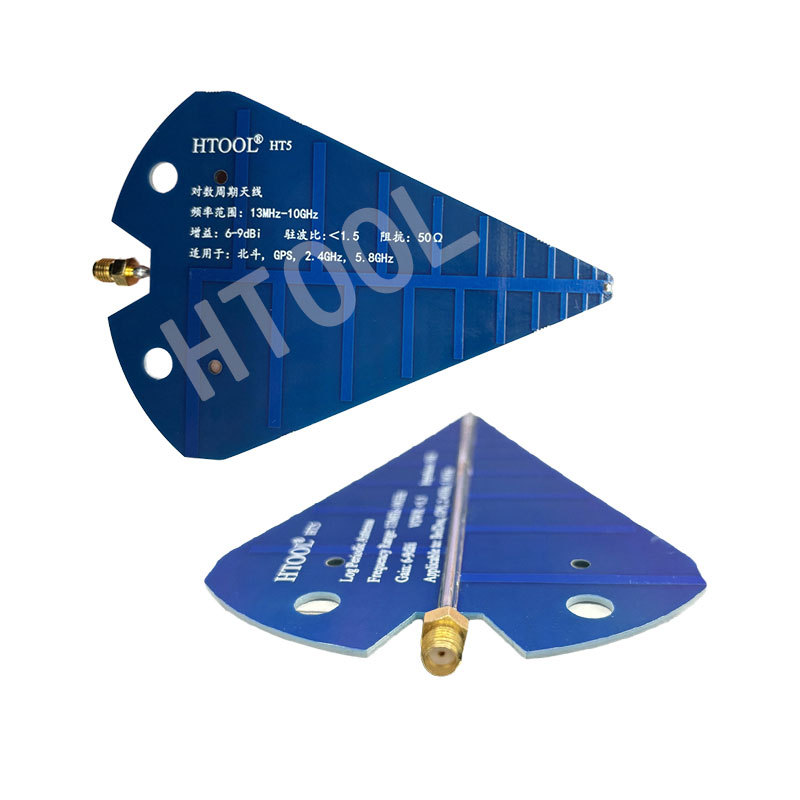

HT5 Standard Version 1300MHz-10GHz UWB Log Periodic Antenna Linear Polarization Directional Antenna for 2.4GHZ/5.8GHZ VTX
Description:
- HT5 Log Periodic Antenna is a kind of antenna widely used in wireless communication field.
- The log periodic antenna broadband test antenna can be used for communication such as Beidou, GPS, 2.4GHz, 5.8GHz, and for microwave darkroom testing. This antenna is a broadband, high gain logarithmic periodic antenna and can also be used for direction finding, spectrum analysis, signal analysis, positioning, broadband measurement, direction finding, etc. It can provide directional gain of 6-9dBi in the frequency band range of 13MHz to 10GHz. 13MHz-10GHz standing wave below 1.5, providing continuous high field strength requirements for EMC testing, making it an ideal testing antenna.
Parameter:

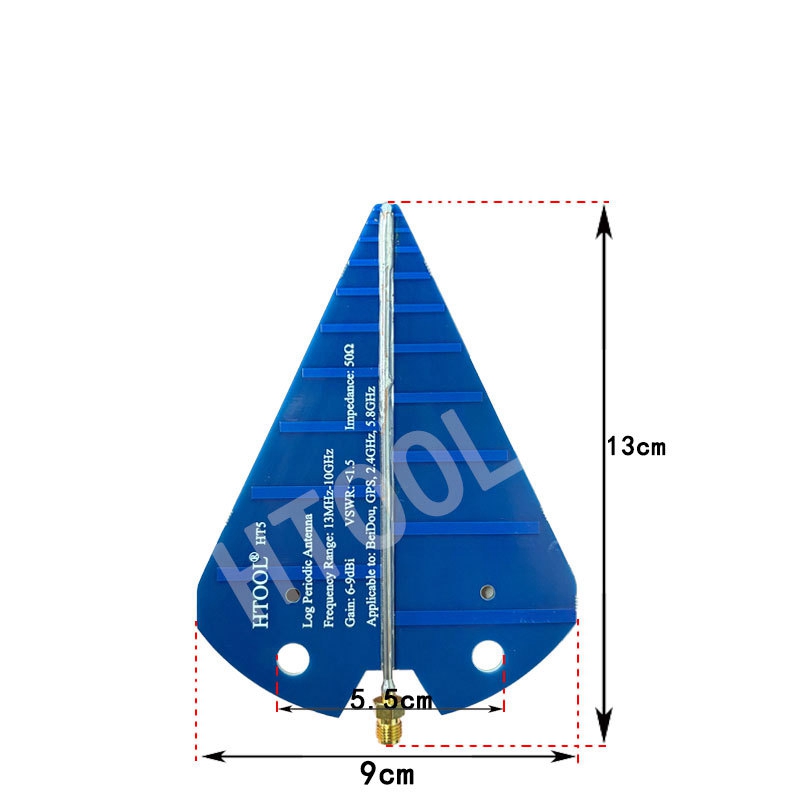

- Antenna size: 130 x 90 x 1.6mm
- Antenna bandwidth: 1300MHz - 10GHz
- Impedance: 50ohms
- Gain: 6+/-1dBi
- Maximum withstand power: 50W
- SWR: < 1.5
- Connector type: SMA female connector
Package Included:
- 1 x HT5 Antenna
- 1 x SMA male to Male Adapter
Note:

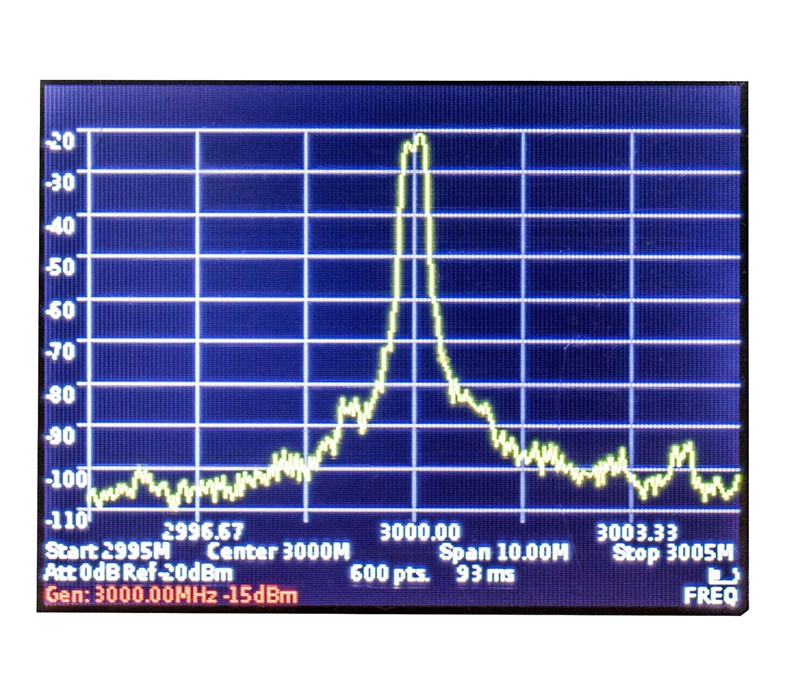

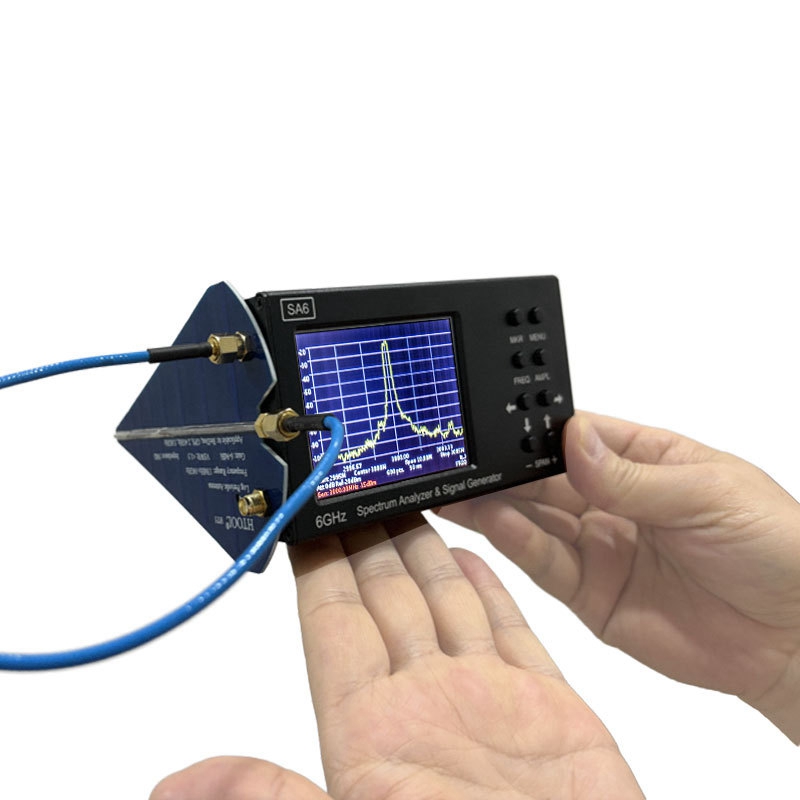

- The spectrum analyzer is not included.
- The 13MHz-10GHz on the actual product is a printing error. Thanks for your understanding.
