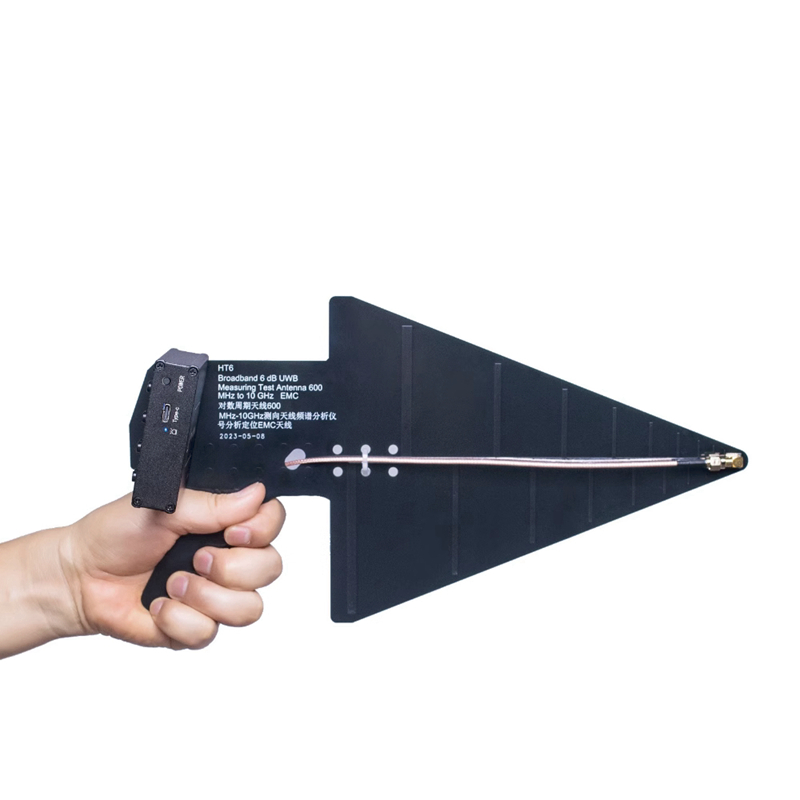

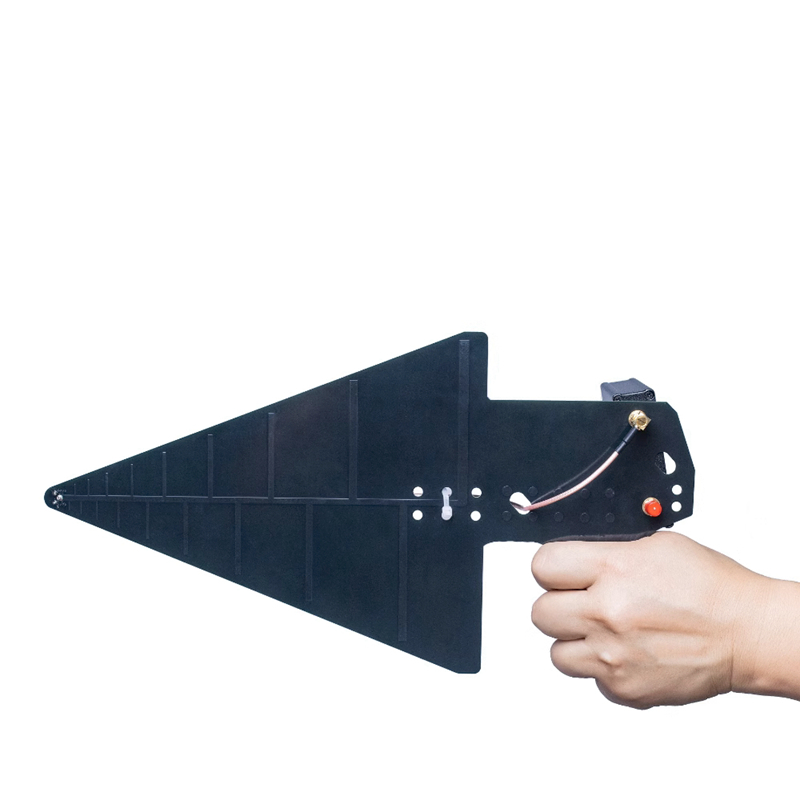

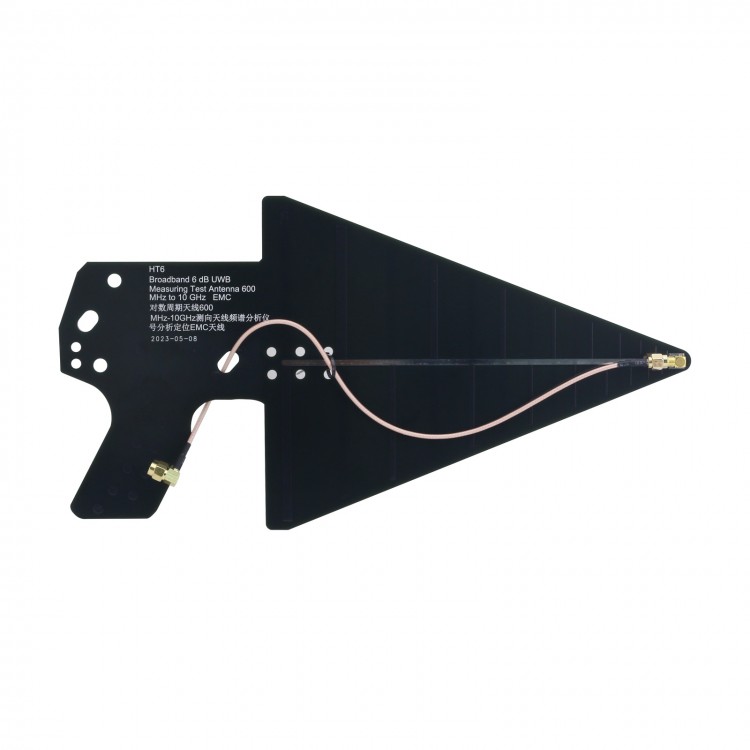

HT6 600MHz to 10GHz UWB Antenna Log Periodic Antenna EMC Antenna for SA6 Spectrum Analyzer to Test
Description:
HT6 directional passive logarithmic periodic antenna has a gain of up to 6dB. It is designed to perform radio frequency measurements (measuring the field strength and the peak (amplitude) direction of the electromagnetic radiation source).
It operates in the frequency range of 600MHz to 10000MHz. The wide antenna operating range allows measurement of signal levels for all common technologies and standards. Include:
* 2G (EDGE, GPRS on GSM 900, and GSM 1800)
* 3G (900 UMTS and 2100 UMTS)
* 4G (LTE 800, LTE 1800 and LTE 2600) and YOTA
* WI-FI 2400 (IEEE 802.11 b/g/n)
The antenna has adjustable gain over the operating frequency range. It is recommended to use a spectrum analyzer to study the electromagnetic environment. A cable for connecting a spectrum analyzer or other receiving device is included in the package.

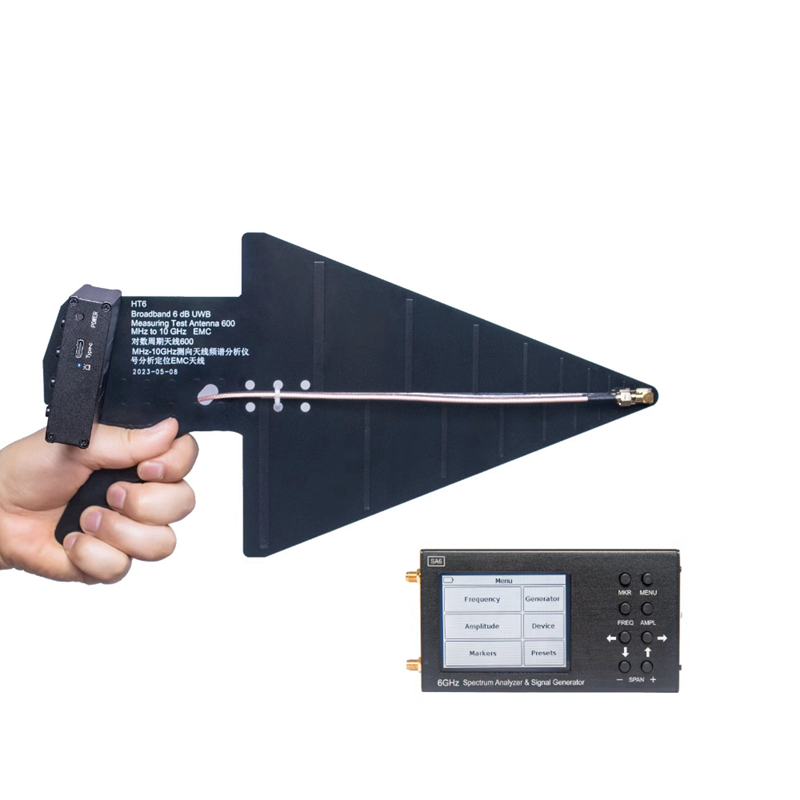

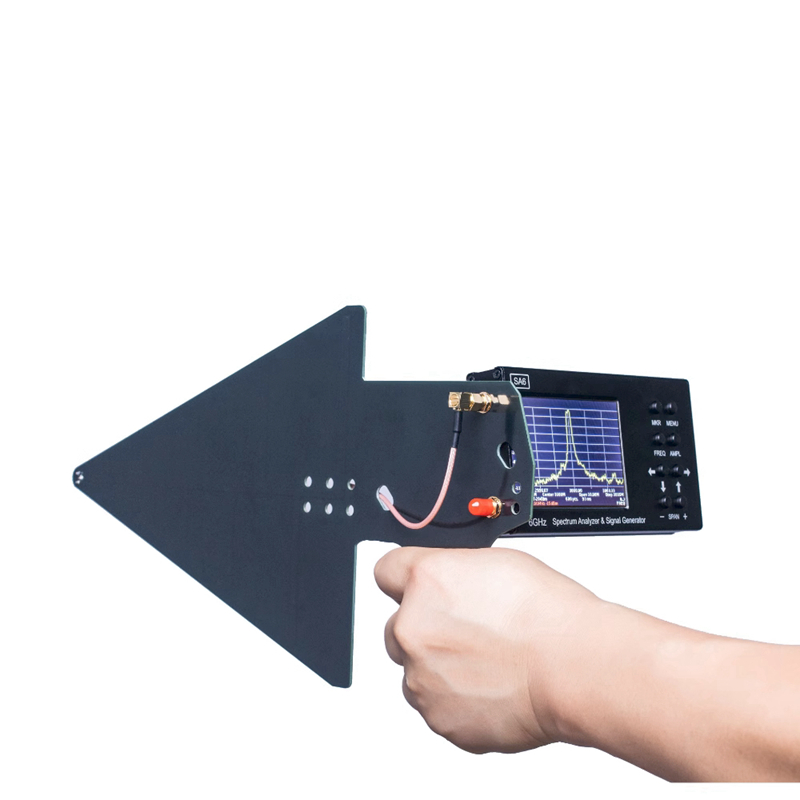

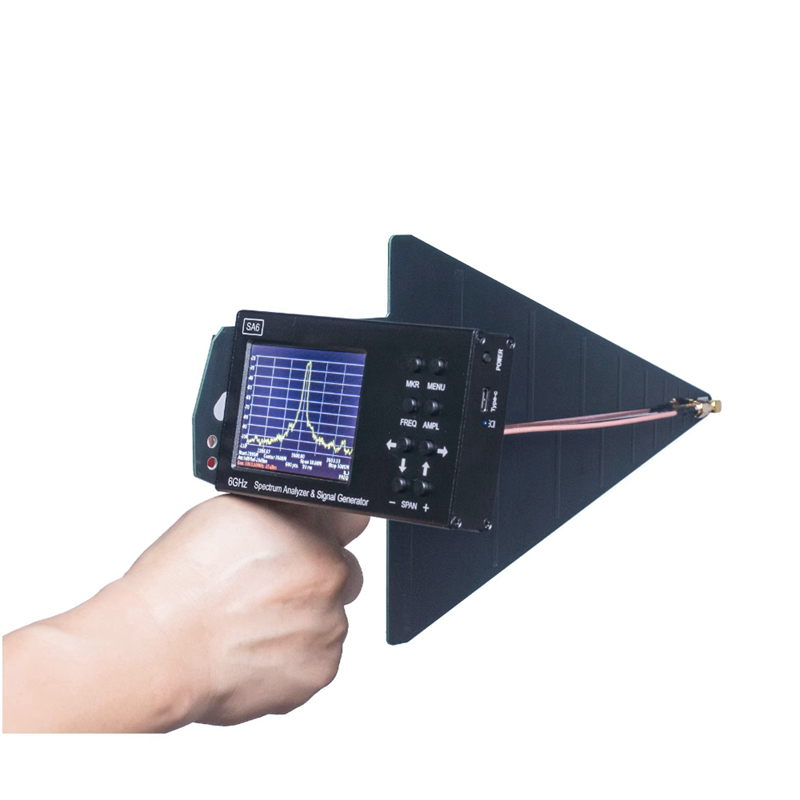

Exquisite and unique design: The HT6 antenna can be used with SA6 spectrum analyzer for easy field use.
With the help of a measurement antenna, it can be used for:
* Measurement of energy flux density
* RF environmental analysis
* Point the antenna at the base station
* Probing the source of the signal or interference
* Analysis of the working parameters of boosters and repeaters
* Create an electromagnetic field with a given density
* Measurement of various types of antenna parameters
* Measurement of electromagnetic compatibility parameters of radio-electronic equipment
* Electromagnetic environment monitoring
* Direction finding of electromagnetic radiation sources
Specifications:
* Antenna size: 400 x 185 x 20mm/15.7 x 7.3 x 0.8"
* Operating frequency: 600MHz-10000MHz (600MHz-10GHz)
* Antenna gain: 1dB to 6dB
* SWR in the operating frequency: not more than 2.2
* Polarization: linear
* Input impedance: 50 ohms
* Connector: SMA female thread
* Product weight: 140g/0.3lb
Package Included:
* 1 x HT6 Antenna
* 1 x RG316 High-frequency Cable with SMA Male Connector
Note:
* Spectrum analyzer pictured is not included.
