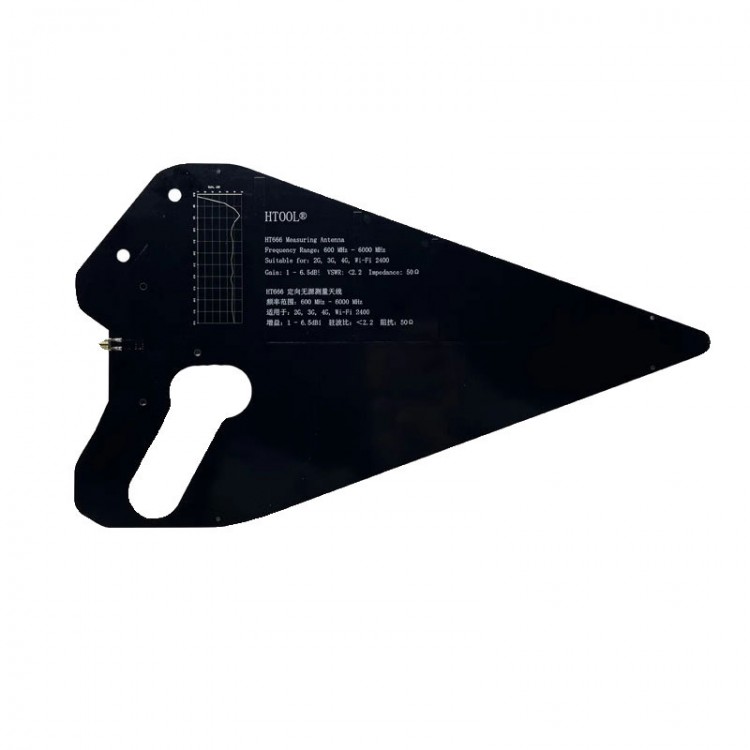

HT666 Standard Version 600-6000MHz Log Periodic Antenna for Radio Spectrum EMC Testing and Signal Oriental Receiving

HT666 Standard Version 600-6000MHz Log Periodic Antenna for Radio Spectrum EMC Testing and Signal Oriental Receiving

Features:
- Directional passive log periodic measuring antenna HT666 with gain up to 6dB.
- Designed for radio frequency measurements (field strength measurements and amplitude direction finding of electromagnetic radiation sources) in the frequency range from 600 to 6000MHz.
· 2G (EDGE, GPRS on frequencies GSM900, GSM 1800)
· 3G (UMTS 900, UMTS 2100)
· 4G (LTE 800, LTE 1800, LTE 2600), for YOTA
· WI-FI 2400 (IEEE 802.11b, g, n)
- The antenna has a regulated gain in the operating frequency range. It is recommended for the study of electromagnetic environment in a set with a spectrum analyzer.
- The antenna comes with a 30cm SMA RG316 Cable for connecting it to a spectrum analyzer or other receiving device.

Applications:
- Analyze the radio frequency environment.
- Aim the antenna at the base station.
- Detect the source of signal or interference.
- Analyze the operation parameters of amplifiers (repeaters).

Parameters:
- Operating frequency range: 600 - 6000MHz

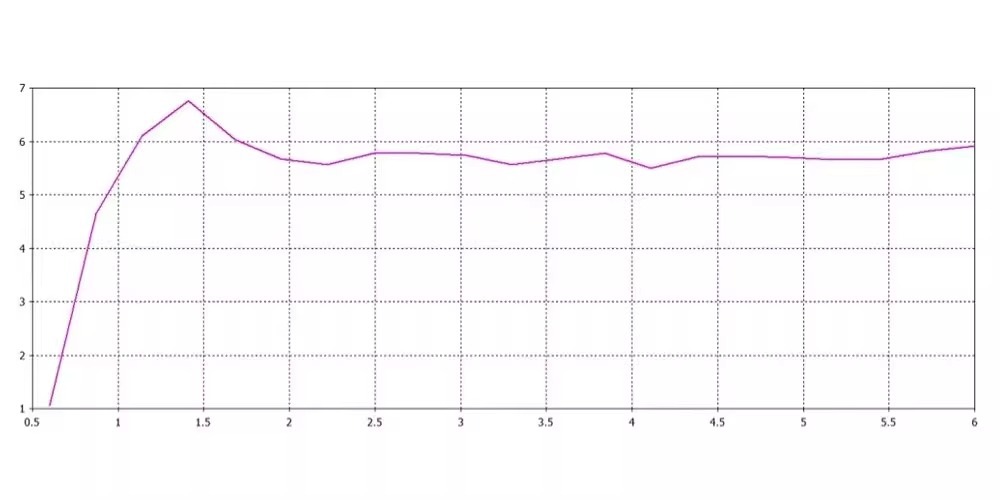

- Antenna gain: from 1 to 6.5dB

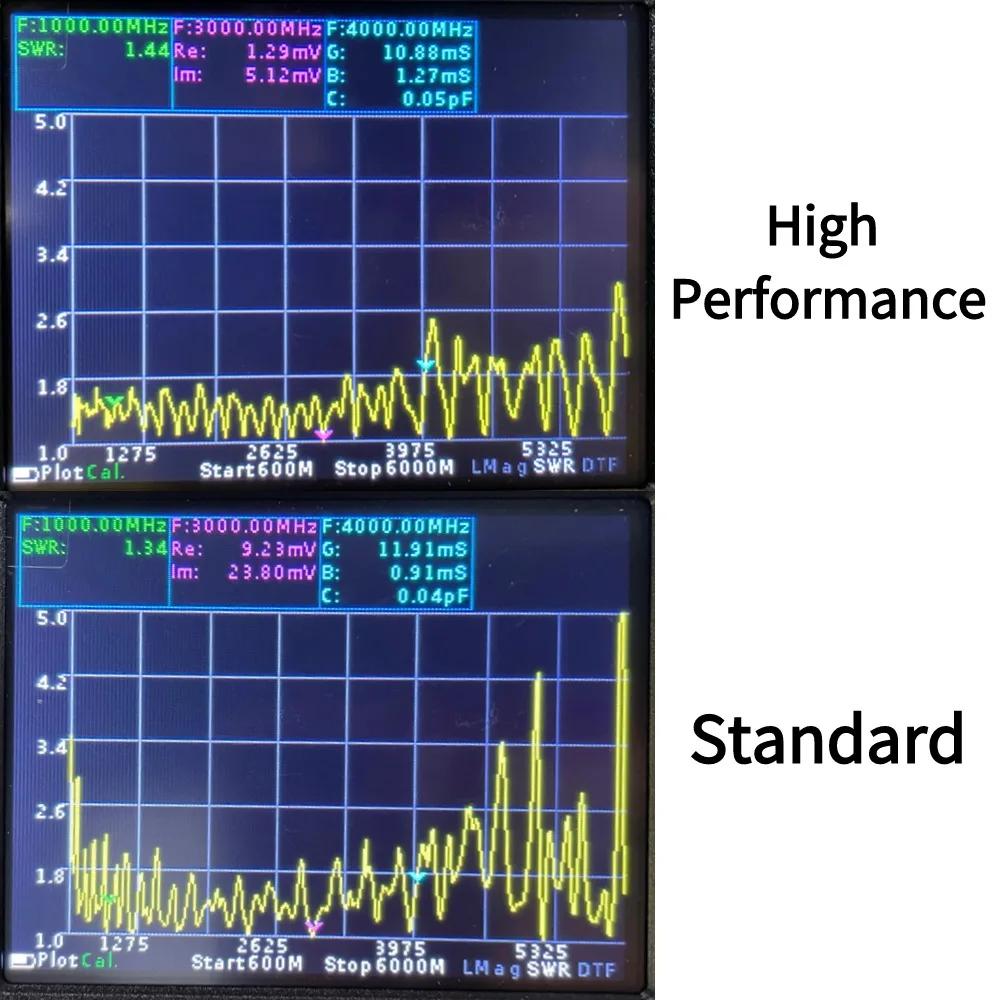

- VSWR: <2.2
- Polarization: linear
- Wave impedance: 50Ω
- Maximum input power: 10W
- Connector: SMA female
- Size: Width 20.89cm x Length 36.86cm

Communication Standard:
- Multi-band
- LTE 800, LTE 900
- GSM 900
- UMTS 900
- GSM 1800
- LTE 1800
- UMTS 2100
- WiFi 2.4GHz
- LTE 2600
- WiFi 5GHz

Package Included:
- 1 x HT666 Log Periodic Antenna
- 1 x 30cm RG316 Cable
