HTRC 80W B6V2 RC Battery Balance Charger Car Helicopter Balance Lipo NIMH Charger with Adapter

HTRC 80W B6V2 RC Battery Balance Charger Car Helicopter Balance Lipo NIMH Charger with Adapter

Description:
HTRC B6 V2 is an upgrade version of imax B6 which developed by HuiTuo HTRC.High quality, stable performance.

It is a digital intelligent multi-functional charger which support LiPo/LiIon/LiFe/NiCd/NiMH PB batteries, high power battery LiHV and smart battery I, II, III.

Max charger power 80W, discharger power 10W, max charge current 6A with high charging efficiency. Discharger current 2A

It has all the function of Imax B6 and with many new features:
*1-6s LiHV, Smart Battery I, II, III.
*Multi-Function: Charge, Balancer, Discharge, Terminal Voltage Control, Lithium Battery capacity & voltage checking, Battery Internal Resistance checking, Data storage and loading, Digital  Power.
*Maximum Safety: Charger current limit, Capacity limit, Processing Time limit, Temperature Threshold, Delta-Peak Sensitivity
*2 in 1 charging cable with XT60 Plug and Deans Plug which suit for most batteries charging

Features:
- Microprocessor controlled Delta-peak sensitivity
- High-Power and high-performance circuit
- Automatically identify the cells counts of lithium battery section
- Check lithium battery internal resistance. Let you know when a cell is going bad
- Support LiHV battery
- Support smart battery I, II, III. (Need optional smart battery charging cable)
- Maximum Safety: Low Input Voltage setting, Delta-peak sensitivity. Capacity limit, processing time limit, Temperature Threshold
- Terminal Voltage Control. User is able to adjust the end charge voltage per cell, and set a voltage which is kinder to the batteries as his will
- Individual cell balancing, cell voltage Monitoring
- Data storage and loading (Store up to 20 packs in memory)
- Battery break in and cycling
- Digital Power

Working Mode:
- Lipo/Lilo/LiFe/LiHv: balance charge, charge, fast charge, storage, discharge.
- NiMH/NiCd: Charge, Discharge, Cycle.
- PB: Charge, Discharge.

Specifications:
- Operating voltage range: DC11.0-18.0 Volt/ AC to DC adapter (DC11.0-18.0V/ 6A)
- Max. Charge Power: 80W
- Max. Discharge Power: 10W
- Charge Current Range: 0.1-6.0A
- Discharge Current Range: 0.1-2.0A
- Current drain for balancing: 400mAH/cell
- Can charge batteries (batteries not included):
  LiIon/LiPo/LiFe/ LiHV cells: 1-6 cells
  NiCd/NiMH cells: 1-15cells
  Pb battery voltage: 2~20v
  Smart Battery: I II III.
- Net Weight: 220g
- Dimensions: 133 x 85 x 27mm

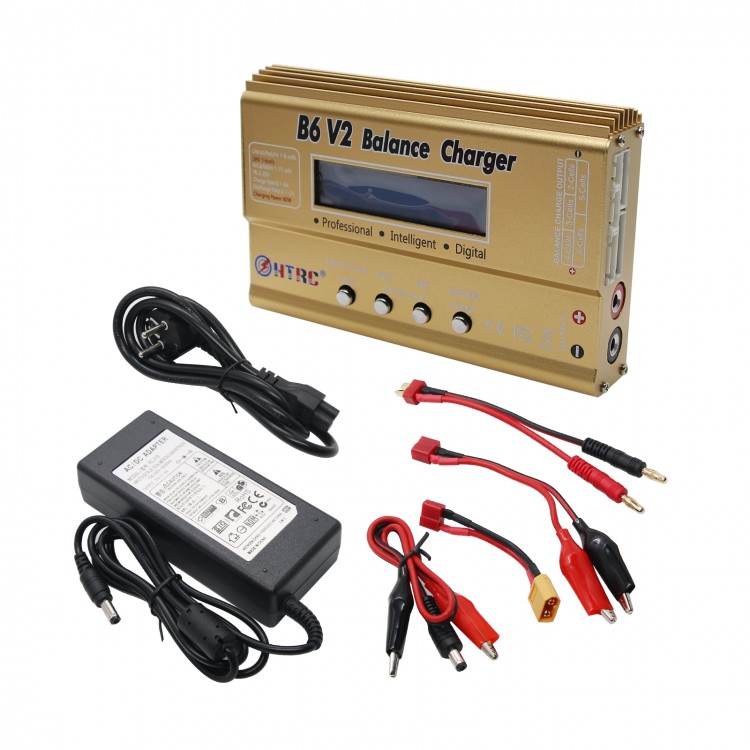

Package Included:
- 1 x HTRC B6 V2 Charger
- 1 x Charging Cable with XT60 and T-plug
- 1 x Universal Crocodile Clip
- 1 x PB charge Cable
- 1 x Manual
- 1 x 15V 6A AC Power Adapter
