HTRC AC DC 400W RC Battery Balance Charger Discharger Dual Channel for RC LiPo LiFe

HTRC AC DC 400W RC Battery Balance Charger Discharger Dual Channel for RC LiPo LiFe


Description:

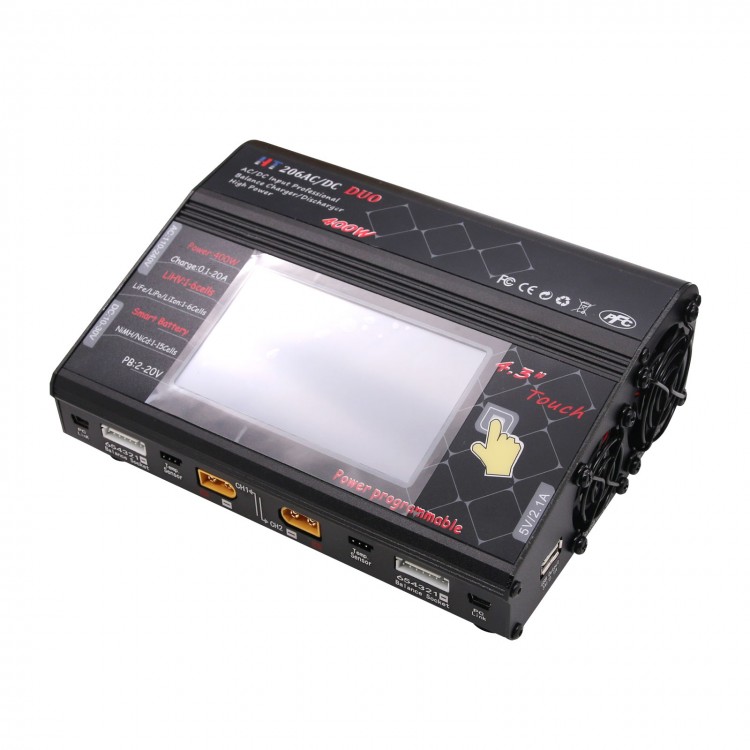

HTRC HT206 DUO is a twin-channel charger with two independent output which can charge two different kinds of batteries simultaneously.

- Full Aluminum Alloy Appearance Design, Solid & Well-made. Built-in Cooling fan for easy heat dissipation. 4.3 inch Color LCD Display Touch Screen, Easy Reading and Operation
- AC/DC Dual Input, Two Independent Output Which can Charge Two Different kinds of Batteries Simultaneously. Each Output Port Circuit Power can Reach 200W, High Power Circuit, High Charging Efficiency.
- Practical for variety of batteries.1-6s Lilon/LiPo/LiFe/LiHV, 1-15cell Nicd/NiMh, 2-20V PB battery. Smart Battery I, II, III.
- Multi-function: Balance Charge, Discharge,Terminal Voltage Control,Lithium Battery Capacity & Voltage Checking, Battery Internal Resistance Checking, Individual Cell Voltage Calibration,Data Storage and Loading,Charging Status Graphic Photo Display, Digital DC Power Supply 5-27V ,0.1-20A, USB DC Output 5V 2.1A,
- Users Could Set The Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit Which Makes the Charger Safe to Use.

Features:
- AC/DC Dual Input.
- 4.3" Color LCD touch screen display for easy operation and convenient to use.
- Full Aluminum beautiful Appearance Design, Built in cool fan, Good Cooling System.
- With rubber pads, prevent sliding and the air can circulate.
- Two independent Port which can charge two different kinds of batteries simultaneously. Each port max charging power up to 200W, max charging current up to 20A.
- Automatic identification of Li-Po batteries cells.
- Support LIHV High Power Battery and Smart Battery.
- Battery management check battery capacity, voltage and balancer.
- Memory function saves up to 8 operation data.
- 5V 2.1A USB DC power supply output.
- Built-in PFC can improve the energy consumption from main power grid evidently,
- Soft switching is also introduced can reduce radiation interference
- Support Firmware update.

Specifications:
- Input Voltage: AC110-240V/DC10-30V
- Charger Circuit Power: 200W*2
- Discharger Circuit: 25W*2
- Charger current range: 0.1-20A*2
- Discharge Current Range: 0.1-5A*2
- Digital DC power: 5-27V, 0.1-20A
- Current Drain for Balancing Port: 500mA/cell
- Can charge these batteries (Batteries not included):
  Lilon/LiPo/LiFe/LiHV: 1-6cell*2
  Nicd/NiMh: 1-15cell*2
  PB: 2-20V*2
  Smart battery: I/II/III*2
- Dimension: L19.5*W14.3*H7cm
- Net Weight: 1.072Kg

Screen Display:
- Setting: general settings such as Buzzer volume, Low input voltage, balance speed, Max charging power. Besides, user can set some cut off value according to your requirements for each channel, making sure a safety charging.
- Memory: save up to 8 operation data.
- Monitor: checking battery capacity, voltage, Internal Resistance, balancer.
- Calibration: calibrate battery cell voltage.
- Working interface:
  The working interface shows all setting data of charging.
  And the charge current and voltage will be displayed by graphic photo.

Different battery has different model:
- In Lipo/Lilo/LiFe/LiHv charging interface, there are 4 models: storage, charge, bal-charge, discharge.
- In NiMH/NiCd charging interface, there are 3 models: Cycle charge discharge
- In PB charging interface, there are 3 models: trickle charger discharge.
- In smart battery charging interface, there are 4 models: Smart battery I, II, III, and digital power.
- Digital DC power supply voltage range: 5-27V, current range, 0.1-20A.

Package Included:
- 1 x HT206 AC/DC Duo Device
- 1 x AC Cord
- 1 x DC Cord
- 2 x Charging Cables
- 2 x Charging Boards
- 1 x User's Manual
