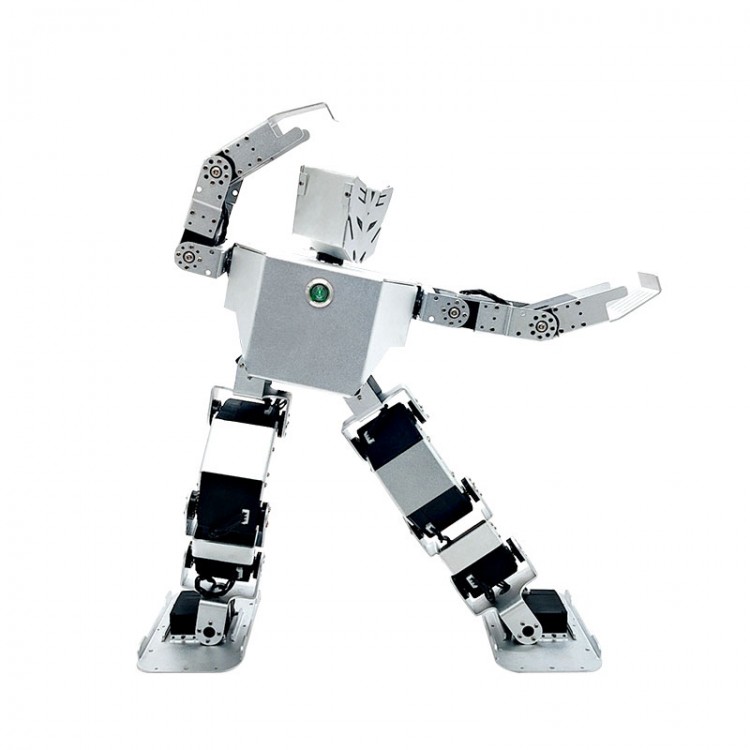

Humanoid Dancing Robot DIY Kit for Education Learning Competition Teaching Tibot Robotic Arm Set Unassembled

Humanoid Dancing Robot DIY Kit for Education Learning Competition Teaching Tibot Robotic Arm Set Unassembled

7 Smart Ways to Play:
-One sound for forwards and two for backwards
Sound sensor: detect the number of sounds within 1S

-Automatically rise after falling
Inclination sensor: detect robot attitude

-Gesture sensing to move left and right
Infrared sensor: detect where the hand comes from

-Moving head distance measurement and obstacle avoidance
Ultrasound: detect obstacles ahead

-Object tracking
Ultrasound: detecting objects

-Wood block color recognition
Grayscale + RGB: identify colors

-Sound control cool lights
Sound sensor: detect the number of sounds within 1S

5 Control Methods:
-Boot execution
After setting the power-on action, when the robot power switch is turned on, the preset action will be executed.

-WeChat control
Provide a small program, interface functions can be configured, no need to download, turn on and use, compatible with Android/Apple system.

-Infrared control
Provide an infrared remote control, facing the robot to complete basic motion control, without external equipment.

-Network control
Remotely monitor the pictures taken by the robot and control the robot in real time.

-Robotic glove control
The robotic glove detects the tilted state and realizes the control of the walking posture of the robot, such as the front, back, left, and right.

Z1 Bus Servo Controller Specification:
Weight: 22g (bare board)
Dimensions: 70mm*49mm
Hole size: 63mm*42mm
Power supply voltage: 6-8.4V
Total servo line interface: 6 channels (5 channels can be connected in series for each channel)
Online debugging: support
Offline operation: support
Storage actions: 10000+
USB free drive: support
Computer software: provide
Bluetooth module: support
PS2 handle: support
Infrared remote control: support
MP3 voice module: support
WiFi camera module: support
Low pressure alarm: support
Servo anti-reverse connection: support
Secondary development: support
Manual offline programming: support
WeChat mini program: provide
Details: provide

Programming Method:
Z1 graphical programming (Zide programming)

Debugging Method:
Wired debugging/wireless debugging

Package List:
-1 x Robot DIY Kit

Note: The product is not assembled.
