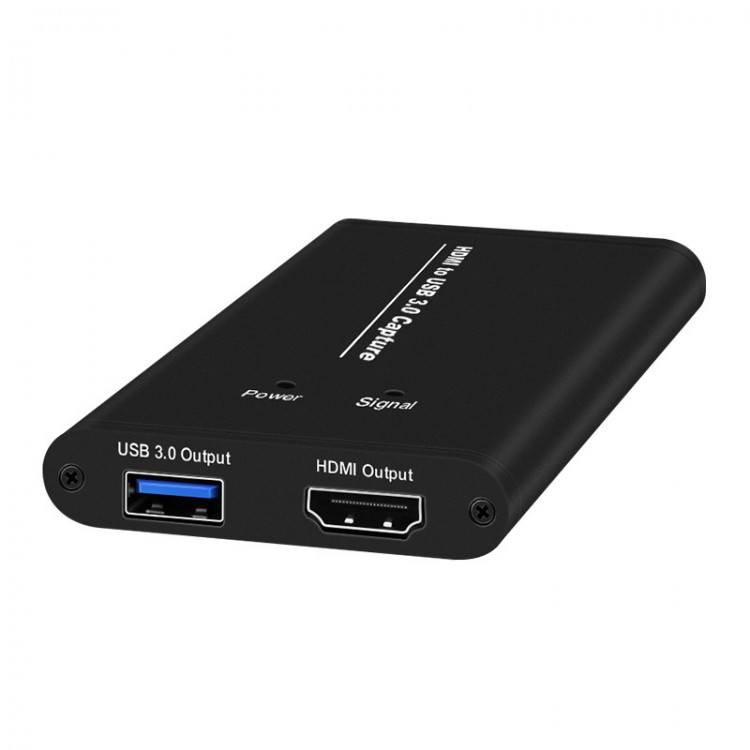

HV-HCA07 HDMI to USB 3.0 4K Video Card HDMI Video Card Live Streaming Accessory Supports Microphone

HV-HCA07 HDMI to USB 3.0 4K Video Card HDMI Video Card Live Streaming Accessory Supports Microphone

Description:
The HDMI to USB3.0 video card has the characteristics of easy portability, superior performance, good compatibility, simple installation and powerful functions. It can collect 1 channel HDMI 1080p60 input and output signal; compatible with USB3.0 interface for Windows 7, 8, 8.1, 10 and above, Linux OS, and Mac OS. It is compatible with many kinds of USB3. Chipset (for Intel, Renesas, ASMedia, Fresco Logic); connect to PC or mobile phone through USB3.0 interface, through many free third-party playback and collection software can achieve preview, recording, collection, live broadcast and other functions. HDMI video video complies with UVC and UAC standards and is easy to use.

Features:
1. It can collect single-channel high-definition HDMI video signal
2. Record video signal up to 1080p/60Hz; input support 4K/30Hz
3. Compatible with UVC video acquisition and YUV 422 video output
4.Support UAC & UVC, support 48KHz PCM audio
5. System for Win7 needs to install a driver
6. Compatible with operating systems for Windows 7, 8, 8.1, 10 or later, Linux OS, and Mac OS
7. USB3.0 with bandwidth up to 237MB/s; compatible with USB 2.0 (up to 23MB/s bandwidth)
8. It can automatically detect the input video format, and automatically adjust to the set output size and frame rate
9. Can automatically detect the input audio format and convert it to 48KHz PCM audio
10. Support loudspeaker and headphones
11. The firmware can be updated
12. Clear picture quality, delay time
13. Support microphone mix input

Connection:
- Input interface: 1 HDMI interface
- Output interface: USB3.0; *Maximum 237MB/s throughput
- HDMI Input: 4K/30Hz, 1080P/60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50/60, 480P, 576P; 1280x1024, 1280x960, 1024x768, 800x600, 640x480
- HDMI sound input: 1 LPCM sound signal

Computer system requirements:
- For Windows 10 / Windows 8.1 / Windows 7 (SP1)
- Desktop PC: For Intel Core i5-4440 3.10 GHz + for NVIDIA GeForce GTX 660 and above
- Laptop: For Intel Core i7-4810MQ + for NVIDIA GeForce GTX 870M and above; 4GB RAM (8 GB recommended)

Mobile phone requirements:
- For Android phone (newer phone models are supported)
- Only supports USB2 but not USB3 (the reason is that UVC driver for Android does not support USB3)
- If a USB2 mobile phone is for Android, a pure USB2 wire is required to be forced into the USB2 mode before it can be used
- Some USB hosts are definitely not supported and have a list of restrictions on use

Package Included:
- 1 x HDMI to USB3.0 Video Card
- 1 x USB3.0 Cable
- 1 x User Manual
- 1 x Connection and Operation Guide
