HV-HCA11 USB3.0 FHD 4K Video Card HDMI Video Card for Phone Gaming Live Streaming Recording

HV-HCA11 USB3.0 FHD 4K Video Card HDMI Video Card for Phone Gaming Live Streaming Recording

Description:
The 4K HDMI to USB3.0 video card enable easy carrying, superior performance, good compatibility, simple installation and powerful functions. It can collect 1 channel HDMI input signal; compatible with USB3.0 interface for Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS; compatible with various USB3.0 chipsets (for Intel, Renesas, ASMedia, and Fresco Logic); compatible with USB2.0. Connect to PC or mobile phone through USB3.0 interface, support many free third-party playing and acquisition software to achieve preview, recording, acquisition, live broadcast and other functions. HDMI video card complies with UVC and UAC standards and is easy to use.

Features:
- Record video signal up to 1080p/60Hz; HDMI input supports up to 4K/30Hz
- Support MJPEG and YUY2
- Support UAC & UVC protocol; support PCM audio sampling rate of 48KHz
- Support operating systems for Windows 7/8/8.1/10, Linux OS, and Mac OS
- USB3.0 with bandwidth up to 300~350MB/s; compatible with USB 2.0 (up to 40MB/s bandwidth)
- Can automatically detect the input audio format and convert it to 48KHz PCM audio
- Support firmware online upgrade to better improve its compatibility
- Clearer picture quality and RGB color range of 0~255
- Supports all third-party player software compatible with UVC and UAC protocols
- Driver-free. Just plug and play
- Support live streaming platforms, including for Kuaishou, DOUYUTV.COM, CC.163.COM, Panda TV, Longzhu.com, Huya.com, HuoMao.TV, etc.

Product Parameters:
- Item name: 4K HDMI to USB3.0 video card
- Input interface: HDMI
- Output interface: USB3.0 (compatible with USB 2.0)
- Input resolution: 4K/30Hz
- Recording resolution: 1080P/60Hz
- Material: aluminum alloy
- Dimensions: 113 x 61 x 13mm/4.4 x 2.4 x 0.5"

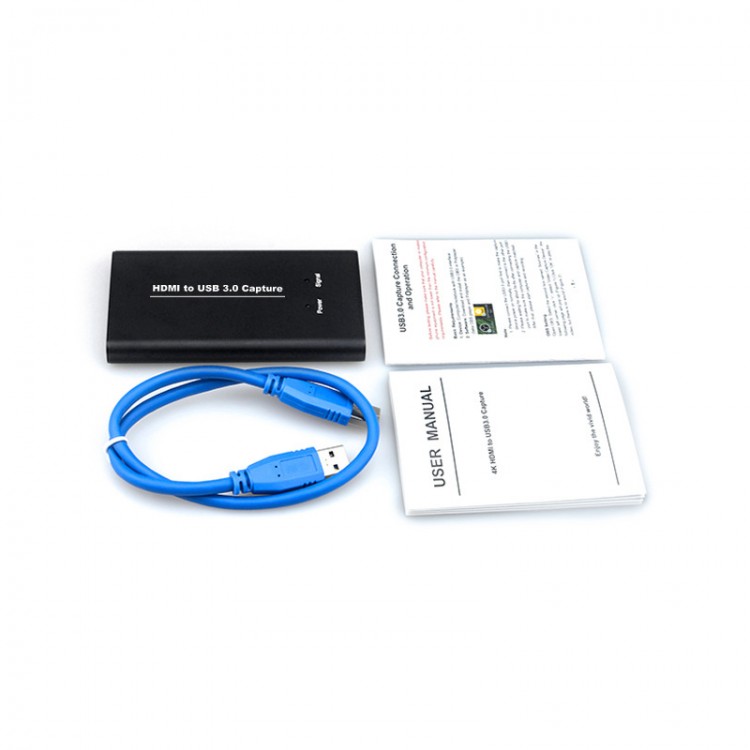

Package Included:
- 1 x USB3.0 Video Card
- 1 x USB3.0 Cable
- 1 x User Manual
- 1 x Connection and Operation Guide

More Information:
1. Connection:
- Input interface: 1 HDMI interface
- Output interface: USB3.0; *Maximum 300~350MB/s throughput
- HDMI input: 4K/30Hz, 1080P/60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50/60, 480P, 576P; 1280x1024, 1280x960, 1024x760x40
- HDMI sound input: LPCM sound signal

2. Standard:
- HDMI input format: Compatible with HDMI1.4 standard, the maximum bandwidth supports 225MHz 4K/30Hz, 12bit deep color
- Video sampling rate: HDMI: 165MHz
- Audio and Video collection: It complies with UVC (USB Video Class) and UAC (USB Audio Class) standards
- Output color space: YUV, RGB

3. Others:
- Supported Operating Systems: for Windows 7, 8, 8.1, 10 or later, Linux OS, and Mac OS
- Software Compatibility: for Adobe Flash Media Live Encoder (for Windows, OS X); for Real Producer Plus (for Windows); for VLC (for Windows, OS X, Linux); for QuickTime Broadcaster (OS X); for QuickTime Player (OS X) and etc.; for OBS and PotPlayer
- Upgrade: Firmware can be upgraded online
- Dimensions: 113 x 61 x 13mm/4.4 x 2.4 x 0.5"
- Power consumption: ≤ 2.5W
- Working temperature: 0 to 70℃
- Storage temperature: -20 to 120℃
- Storage humidity: 5%-90%

4. Computer system requirements
- For Windows 10 / Windows 8.1 / Windows 7 (SP1)
- Desktop PC: For Intel Core i5-4440 3.10 GHz + for NVIDIA GeForce GTX 660 or above
- Laptop: For Intel Core i7-4810MQ + for NVIDIA GeForce GTX 870M or above; 4GB RAM (8 GB recommended)

5. Mobile phone requirements
- For Android phone (newer phone models are supported)
- Only supports USB2 but not USB3 (the reason is that UVC driver for Android does not support USB3)
- If a USB2 mobile phone is for Android, a pure USB2 wire is required to be forced into the USB2 mode before it can be used
