| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $245.04 | $240.04 | $232.54 | $222.54 | Contact US |
HV-HE10 H.264 HDMI Loop-out HD Video Encoder Live Streaming Encoder for NVR Recording SRT RTMP ONVIF
Description:
HV-HE10 encoder is a professional HDMI audio and video encoder. It supports 1-channel high-definition HDMI audio and video collection, 1-channel 3.5MM independent audio interface collection, and 1-channel ODI loop-out. Encoding output dual stream H.264 format and audio MP3/AAC format. It can adjust encoding bit rate and control the quality of the picture. Additionally, it supports HTTP/RTSP/RTP/RTMP/UDP and other protocol transmission.
It is easy to use and there is no hardware compatibility problem.
Features:
- HDMI high-definition video encoder supports HDMI signal input and output
- Embedded hardware encoding; supports multi-protocol and multi-stream
- One-click remote restore, upgrade and maintenance
- 1080P high-definition video live broadcast: It can support real-time high-definition uncompressed picture quality up to 1920*1080P. It can handle even complex and fast-moving video quality, giving you a high-quality live streaming experience
- H.264 high-efficiency encoding format: H.264 encoding format has the characteristics of stability and efficiency, low delay, low bit rate, high-quality video picture, error recovery function, etc.
- Independent audio input for real-time commentary: 1 channel HDMI embedded audio and 1 channel 3.5mm independent audio (supports audio gain); audio can be adjusted independently
- Custom resolution: support regular resolutions, including 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i; also custom resolution output
- Support adding subtitle LOGO: add it in the background of the encoder, support Chinese and English OSD, and support adding company logo letters and symbols (support jpg, png and other formats). Added content can be displayed anywhere on the screen
- Supports multiple protocols and is compatible with multiple platforms: supports the transmission of HTTP/RTSP/RTP/RTMP/HLS/UDP unicast, multicast and other protocols. Support live streaming platforms for Mudu, Aodianyun, Lecloud, Alibaba Cloud, Panda TV, Huya, Quklive, and live.iqiyi.com
- Product size: 118 x 100 x 40mm/4.6 x 3.9 x 1.6" (LxWxH)

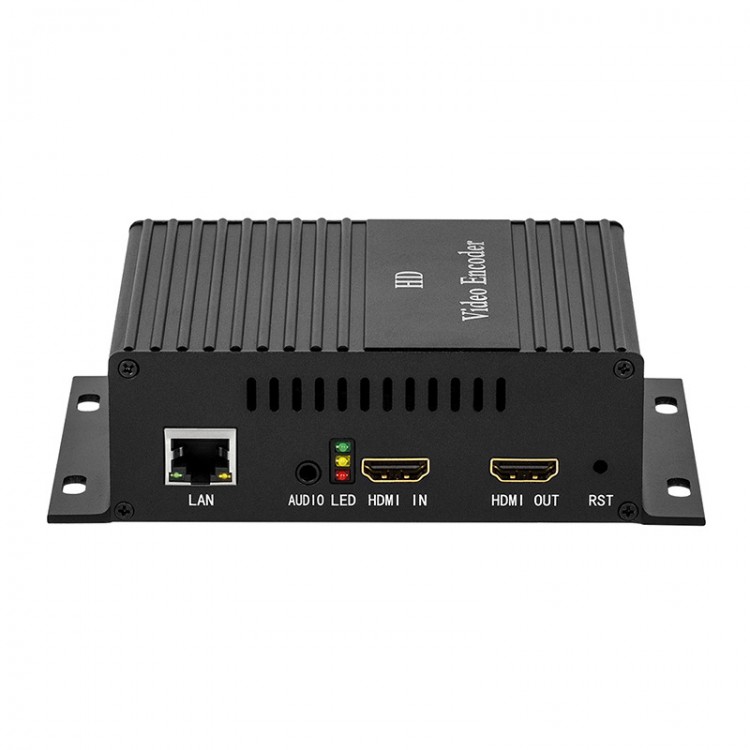

Interfaces Introduction:
- DC 12V: Power socket
- LAN: data network port
- AUDIO: Audio interface input
- LED: Status Indicator
- HDMI IN: HDMI input
- HDMI OUT: HDMI output
- RST: Reset button
Package Included:
- 1 x HD Video Encoder
