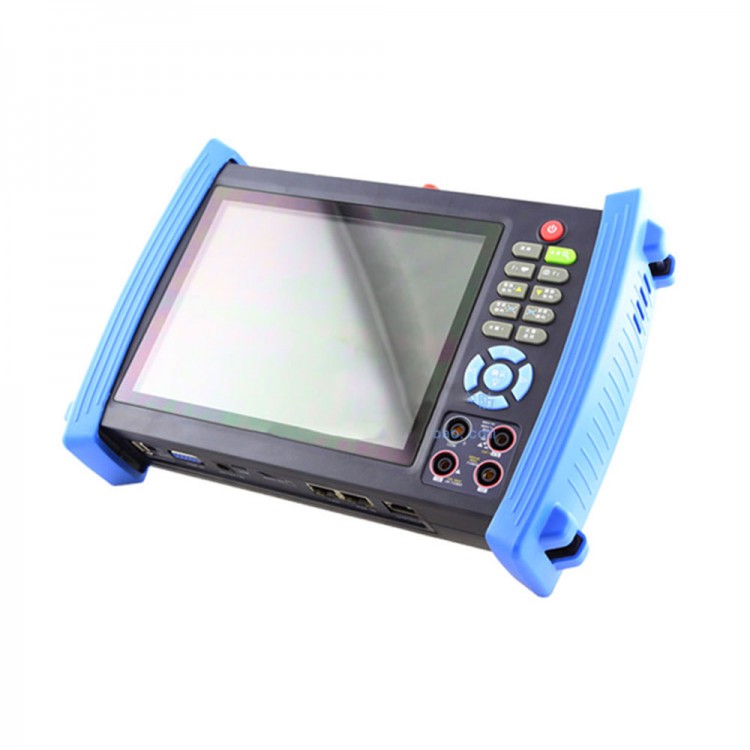

HVT-3600O 7inch LCD Screen CCTV Security Camera Tester Monitor IP Cable Scan HDMI Input PoE Test

HVT-3600O 7inch LCD Screen CCTV Security Camera Tester Monitor IP Cable Scan HDMI Input PoE Test

Description:
- More than 9 languages optional ( English, Portuguese, German, French, Spanish, Italian, Russian etc) 7inch HD LCD screen display, 800(RGB)x600
- HD SDI digital camera image input and output (*optional)
- VGA, HDMI signal input, easily and conveniently to test and set the DVR/ NVR.
- DC12V 2A power output for camera
- USB 5V 2A power out for mobile phone and other device
- LED Lamp, easy to operate at night
- Micro SD card moveable
- User-defined shortcut keys,(F1 and F2)
- LCD screen brightness/contrast/color Saturation adjustable
- Automatically adapts and displays the video format of NTSC/PAL
- Optical Power Meter, it can measure the optical power value (*optional)
- Digital multimeter, it is used for the voltage current, Resistance, Diode, Capacitance measurement (*optional).
- 10xzoom, video image can be magnified to view the details, easy to use
- Video record and playback ,Snapshot and save the current image as JPG file in the SD card
- PING testing,test IP camera or other network devices’ ethernet port whether work normally, and the IP address whether right
- Video signal PEAK level, SYNC level, COLOR BURST chroma level measurement
- Cable scan, send the specific signal, easily to find correct cable quickly from the clutter cabling system.
- IP address scan, quickly search the IP address for the connected IP camera and other network devices
- POE voltage measurement,test the PoE switch’s voltage to IP cameras, wireless AP device and other PD devices
- Device Port flicker,easy to find the connected PoE switch port by sending special signals, the connected PoE port will flicker at special frequency.
- Link monitor; check the setting IP address whether occupied.
- TDR cable tester, diagnose the location of the BNC and network cable’s short circuit and break-point (*Optional)
- PTZ address scan, search up the ID of PTZ camera.
- Network cable and Telephone cable testing, display the sequence of connection and the NOof the LAN cabl
- Support RS232/RS485/RS422, Rate 600 ~ 115200bps adjustable
- Multi-protocol. Supports more than thirty PTZ protocols. Such as PELCO-P, PELCO-D, SAMSUN
- PTZ protocol analysis, control protocol command displays to check RS485 transmission  whether is normal, easy to find the fault devic
- PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and the preset positio
- Audio input test, test the audio signal from pickup devices
- Visual fault locator , to test fiber’s bending and breakage (*optional)
- Lithium Ion Polymer Battery .The device employs advanced power control and protection circuit. The device is high power-efficient, energy saving and environmental protection. It can last 17 hours for normal use after charging for 7 -8 hour

NOTE: The "* optional" functions are the additional module based on HVT-3600. This is the model HVT-3600O, with optional function, that is HVT-3600 with Digital Multi-meter .
