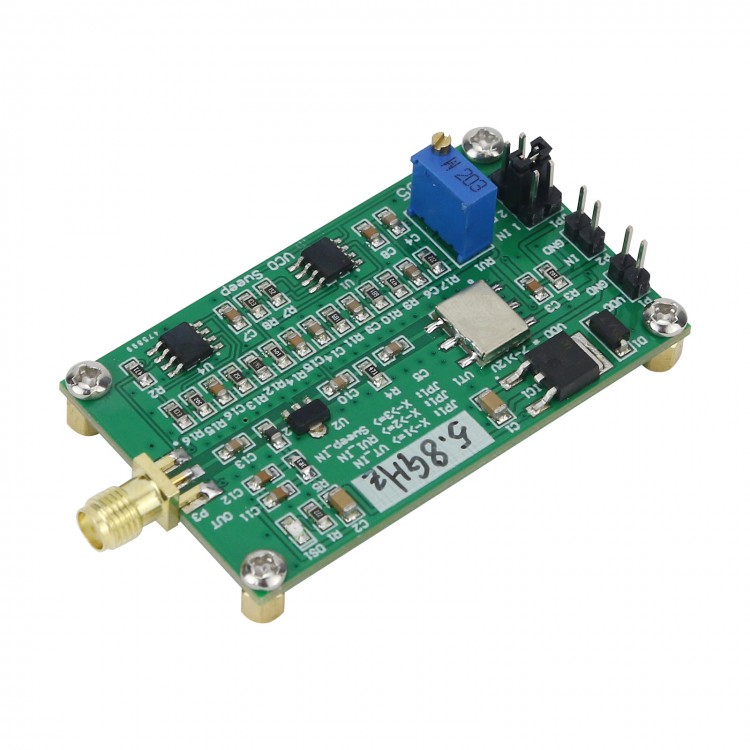

HW205 5.8GHz VCO Sweep Signal Generator Module RF Signal Source Sweep Generator With Sweep Frequency
Module Parameters:
* Output frequency range: 5725~5850MHz (5.8GHz version)
* Maximum output amplitude: <15dBm
* Working voltage: 7~12V
* Sweep frequency: about 30KHz
* Size: 60 x 35mm/2.4 x 1.4"
* N.W.: 12g/0.03 lb
Package Included:
* 1 x Signal Generator Module
Details:
P1 Interface:
VDD: power supply+
GND: power supply-
P2 Interface:
VT_IN: Input tuning voltage (VCO) signal (0~9V)
GND: power supply-
P3 Interface:
Output signal (RP SMA KE KHD female connector)
JP1 Jumper: use external or internal (potentiometer) or sweep frequency to input tuning voltage
JP1: x->1 => VT_IN
JP1: x->2 => RV1_IN
JP1: x->3 => Sweep_IN
RV1:
Internal (potentiometer) input tuning voltage
