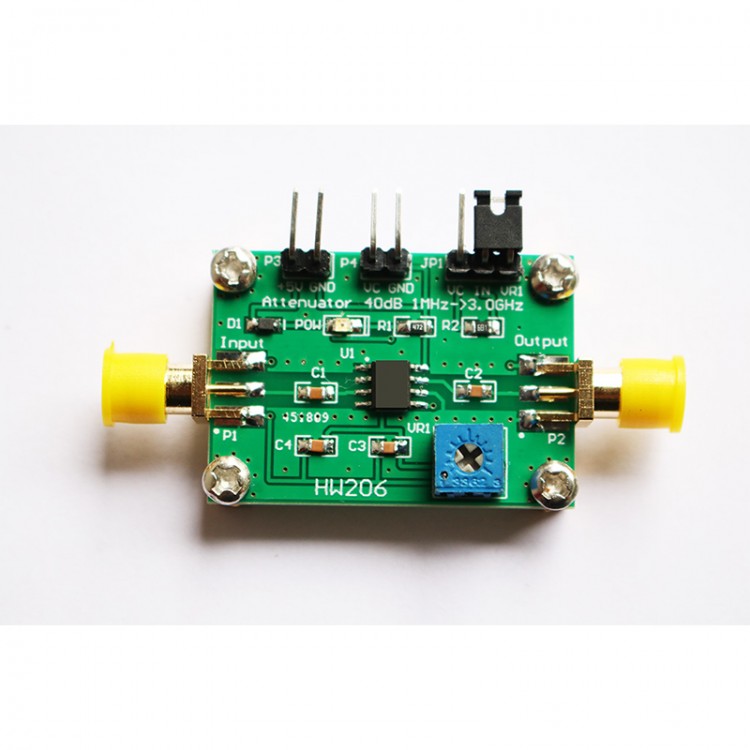

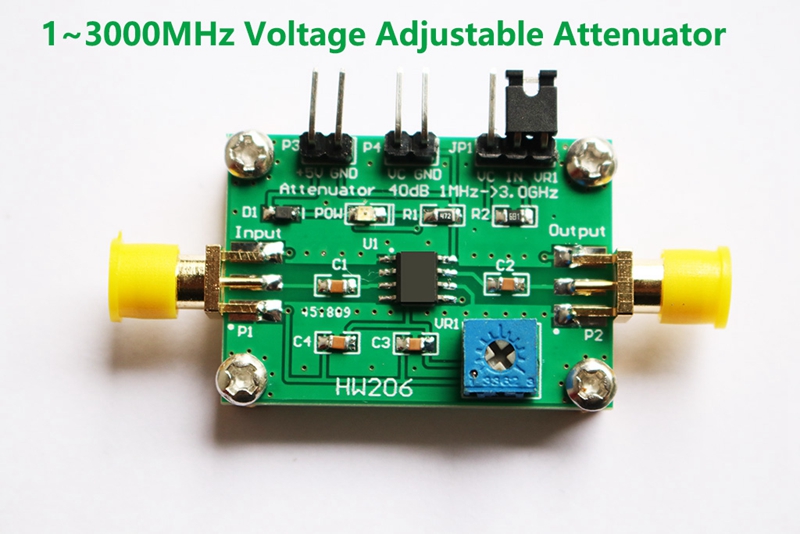

HW206 1MHz-3.0GHz Variable Attenuator Voltage Adjustable Attenuator RF Attenuator Module
Module Parameters:
- Input frequency range: 1~3000MHz (1MHz-3.0GHz)
- Maximum input voltage: 4Vpp
- Attenuation range: -40 to 0dB
- Working voltage: 5V
- Size: 42 x 26mm/1.7 x 1"
Package Included:
- 1 x Adjustable Attenuator
Detailed Introduction:
- P3 interface: VDD: power supply +; GND: power supply-
- P1 interface: input signal (RP SMA KE KHD female connector)
- P2 interface: output attenuation signal
- P4 interface: adjust the attenuation value of external input voltage
- JP1 jumper: use the potentiometer (RV1) on the circuit board or external input voltage (P4) to adjust attenuation value
- RV1: to adjust attenuation value
