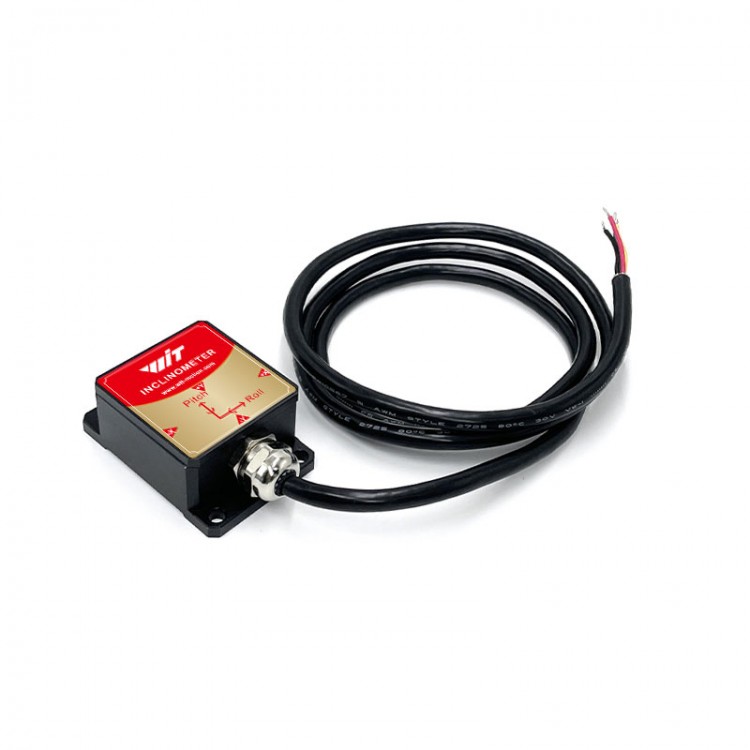

HWT905-485 High Performance Gyroscope Sensor 9-Axis Accelerometer Inclinometer Attitude Sensor Magnetometer
Specification:
- Model: HWT905
- Power supply: 5-36V for TTL/RS232/RS485; 5-24V for CAN
- Communication distance: 1 meter for TTL version, 5 meters for 232 version, 100 meters for 485 version, 300 meters for CAN version
- Working current: < 40mA
- Communication method: serial port TTL, RS232, ES485, CAN
- Output data: 3-axis (acceleration, gyroscope, angle, magnetic field)
- Angle precision:
X/Y axis: 0.05°
Z axis: 1°(without magnetic field interference after calibration)
- Range:
Acceleration: +/-6g
Gyroscope: +/-2000°/s
Angle: X/Z +/- 180°, Y +/- 90°
- Baud rate: 0.2 - 200Hz (default: 10Hz, 485 version is one-question-one-answer)
- Resolution:
Acceleration: 0.5mg/LSB (2048LSB/g)
Angle velocity: 0.061 (°/s) LSB
Magnetic field: 13nT/LSB
Angle: 0.0055°/LSB
- Applicable temperature: -40 ~ +85℃
- Retrieval Rate: 4800 - 230400
- Product size: 55 x 36.8 x 24mm, cable length of 1-meter
- Installation method: vertical or horizontal, horizontal installation by default
Package Included:
- 1 x Sensor
