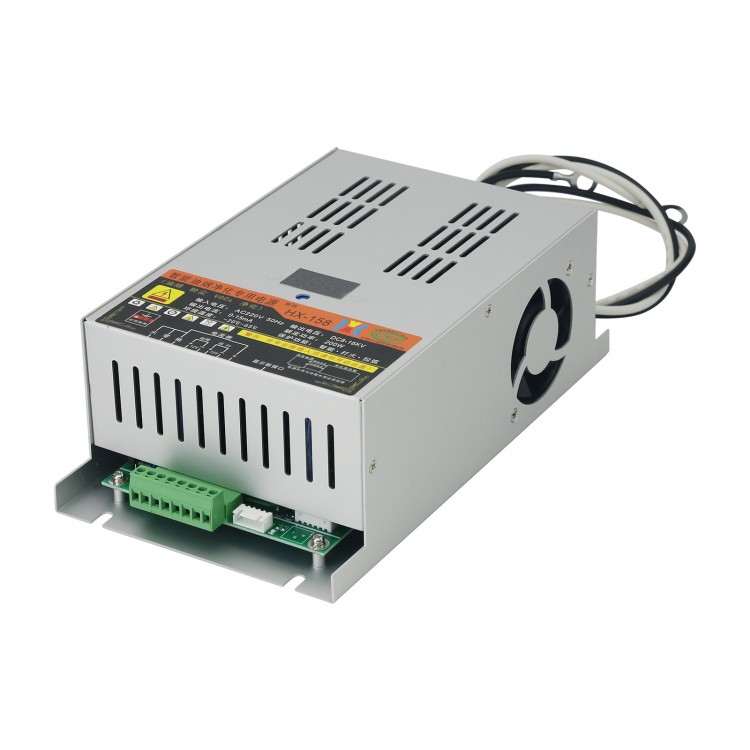

HX-200w 200W High Voltage Power Supply with DC9-16KV Output Voltage for Oil Fume Purifier Oil Mist

HX-200w 200W High Voltage Power Supply with DC9-16KV Output Voltage for Oil Fume Purifier Oil Mist

Features:
- Short circuit protection: When the power supply is short-circuited, it will work in hiccup mode and will not start, protecting customers' insulated terminals and greatly reducing the risk of fire.
- Overload protection: When the load is too heavy, the power supply will operate in constant current mode, that is, the maximum current will be kept unchanged and the output voltage will drop.
- Ignition protection: When the load ignites, the power supply will be turned off within 10ms and it will automatically start again after 200ms, ensuring purification efficiency and safety.
- Flashover protection: With anti-arc design and good flame retardancy, it is not easy to ignite or affect the stability of the line output transformer of the power supply, extending the cleaning cycle.
- Over-voltage protection: When the power supply is no-load, it will work in constant voltage mode, and keeps the maximum set voltage unchanged to protect the power supply from damage.
- After 30 times of ignition in one minute (the number of times can be set), the power supply will be automatically locked and there will be no output. After 30 seconds, it will automatically restart to work. If it is fired 30 times in one minute again, the power supply will be completely locked and will not work. After the fault is resolved, power off and restart the power supply to work.
- When electric field is shorted for 30 seconds, the power supply will be locked and there will be no output. After 30 seconds, restart the power supply. If the electric field is shorted again for 30 seconds, the power supply will be automatically and completely locked. After the fault is resolved, power off and restart the power supply to work.
- Power supply overpower usage causes the power supply to over-temperature and triggers a temperature protection switch to operate at minimum power. After the temperature drops, the power supply will automatically resume normal operation.
- It can effectively protect the power supply from damage caused by the long-term uncleaning of the electric field, and prevent the fire caused by long-term ignition caused by the dirty electric field.

Application:
- Kitchen oil fume purification equipment
- Waste gas treatment plants
- Industrial fume purification equipment
- Smokeless grills
- Household electrical appliances
- Oil fume purification all-in-one machines

Specifications:
- Power: 200W
- Input Voltage: AC220V±10%
- Input current: 1-2A
- Output current: 0-15mA
- Output voltage: DC9-16kV
- Output power: 200W
- Voltage and current display: With

Package Included:
- 1 x Power supply
