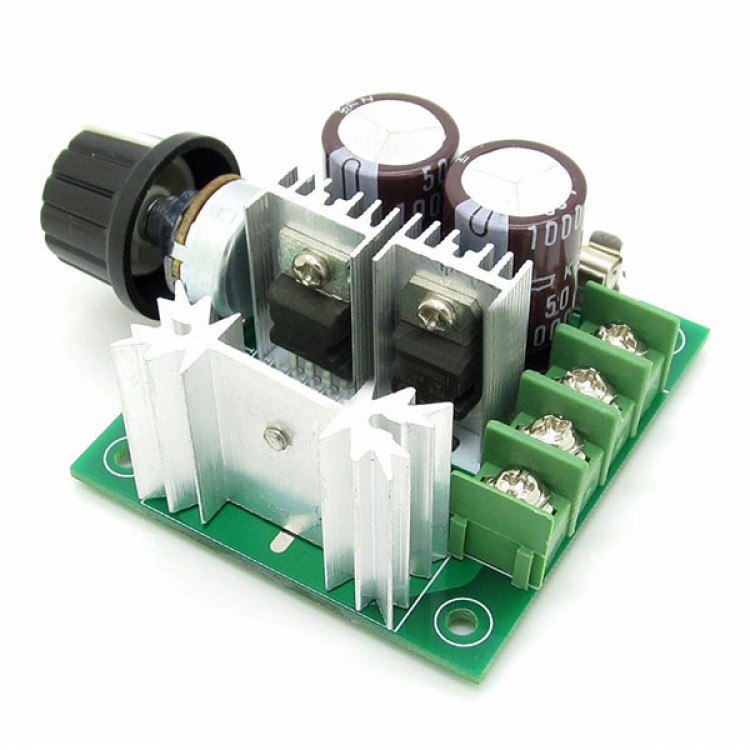

HX-PWM DC 12V-40V Universal IO PWM DC Motor Speed Control Switch

Availability: In stock, usually dispatched in 1 business day

  • Price:$9.11
  • Price in reward points: 91 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $8.93 $8.75 $8.47 $8.11 Contact US
Quantity:
Buy it now Add cart

You might like

DC Motor Speed Regulator 6V-90V PWM Module 15A Digital Controller Switch Display with Insulation Shell

DC Motor Speed Regulator 6V-90V PWM Module 15A Digital Controller Switch Display with Insulation Shell

$22.16

(0)
MACH3 CNC Motion Control Card 5 Axis CNC Breakout Board 100KHz + USB Cable for CNC Engraving 12-24V

MACH3 CNC Motion Control Card 5 Axis CNC Breakout Board 100KHz + USB Cable for CNC Engraving 12-24V

$23.77

(0)
PWM 20A Controller Switch DC 9V-60V 24V 36V Stepless PWM Variable Fan Motor Speed

PWM 20A Controller Switch DC 9V-60V 24V 36V Stepless PWM Variable Fan Motor Speed

$9.35

(0)
5 Axis CNC Kit Nema 23 Stepper Motor 57+DM542 Stepper Motor Driver+MACH3 USB CNC 5 Axis Control Card

5 Axis CNC Kit Nema 23 Stepper Motor 57+DM542 Stepper Motor Driver+MACH3 USB CNC 5 Axis Control Card

$242.55

(0)
DC±10V 0-22mA Voltage and Current Signal Generator Signal Source QH-VISG2-ED (Built-in Battery)

DC±10V 0-22mA Voltage and Current Signal Generator Signal Source QH-VISG2-ED (Built-in Battery)

$20.10

(0)
1000W 48V Electric Bike Motor Kit Electric Scooter Kit Motor + Speed Controller + Throttle Grips

1000W 48V Electric Bike Motor Kit Electric Scooter Kit Motor + Speed Controller + Throttle Grips

$152.40

(0)
58MM Metal Omni Wheel Robot Chassis Smart Car Chassis Unassembled w/ 360CPR Photoelectric Encoder

58MM Metal Omni Wheel Robot Chassis Smart Car Chassis Unassembled w/ 360CPR Photoelectric Encoder

$109.18

(0)
BJ-1002 47PCS Cordless Screwdriver Kit 3.6V 3.5N/M Rechargeable Screwdriver Set With Plastic Box

BJ-1002 47PCS Cordless Screwdriver Kit 3.6V 3.5N/M Rechargeable Screwdriver Set With Plastic Box

$44.83

(0)

HX-PWM DC 12V-40V Universal IO PWM DC Motor Speed Control Switch


Features:
- Circuit board using military grade plate!
- All the chips are imported original, not the domestic IC, disassemble, renovation comparable.
- Imported 50V1000uF large capacitance. Compared to other types of capacitance governor 100-220uF obvious advantages.
- IRF3205 power tube using the big cattle, with absolutely no worries about not moving your motor. (Parameter maximum drain current Id: 82A; maximum voltage Vds: - 75V; on-state resistance, Rds (on): 0.013ohm).
- 8500 terminal using a large current terminals, label 300V 20A!
- CCMHC technical parameters:
- Input voltage: DC 12V-40V
- Power: 0.01-400W
- Current: Rated current 8A, the largest by current 10A, quiescent current of 0.02A (standby)
- Frequency: 13khz
- PWM pulse width speed range: 10% -100%
- With a 10A fuse, with power reverse, control voltage protection function
- With high-quality potentiometers (High Quality)
- Product Specifications:
- Size: 60 * 55 * 28mm, four positioning pitch plate edge 5mm, the positioning hole diameter 3.2mm.
- Weight: 69g
- Onboard 10A fuse, the fuse is 5 * 20mm standard size

Package list:
- 1 x HX-PWM DC 12V-40V Universal IO PWM DC Motor Speed Control Switch
