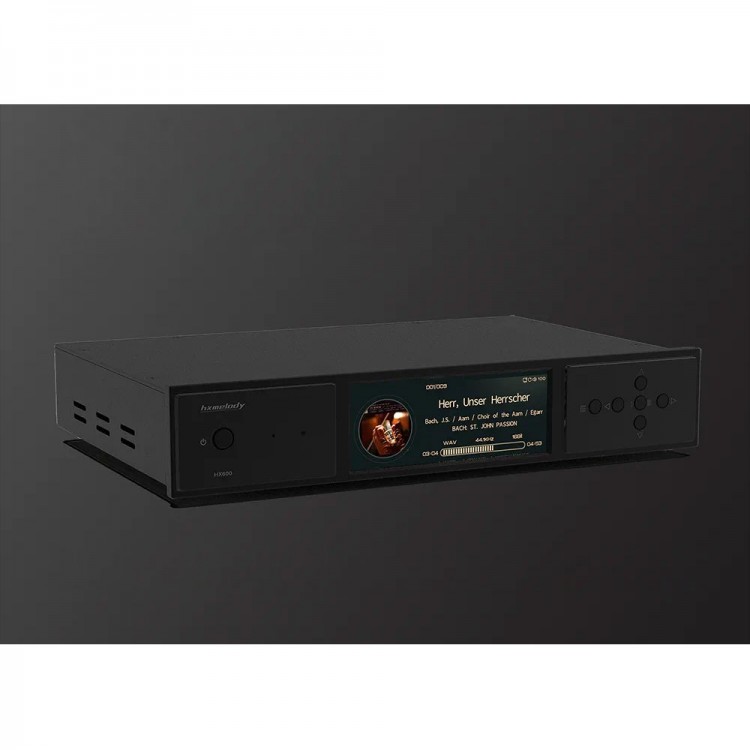

Hxmelody HX600 Black Digital Streaming Player Digital Music Streamer (without Decoding Chip)

Hxmelody HX600 Black Digital Streaming Player Digital Music Streamer (without Decoding Chip)

Description:
Extra-large and ultra-wide 6.86" OLED screen
HX600 adopts a 6.86" 24:9 ultra-wide HD OLED screen, a professionally customized interactive interface, a newly designed system UI, a dynamic playing screen, and a fast and sensitive system response, bringing you a more comfortable operating experience and visual experience.

Second-generation core audio engine
HX600 is composed of an independent octa-core high-performance processor and a core audio engine for Hifi creation, rich audio input and output interfaces, massive network streaming music content, and a unique playing system to create a more outstanding sound.

Rich interfaces to connect multiple devices
The HX600 has rich interfaces. The outputs of the version without decoding chip include coaxial, optical, AES/EBU, I2S-HDMI, USB DAC, etc., which can be used with various high-end decoders. While the version with decoding chip offers high-fidelity RCA and XLR outputs that can be used directly with active speakers or amplifier systems.

High-speed connectivity and easy control
HX600 can quickly connect to a home network via gigabit wired network or WIFI 2.4G/5G. It provides high-speed access to a NAS already set up in the network. Phones for Android/HarmonyOS/iPhone can quickly control HX600 through APP. Users can also push high-quality music to the HX600 through computers and mobile phones for playing.

PCM 1536KHz 32Bit and DSD1024 1Bit
The HX600 features a second-generation core audio engine. It supports up to PCM 1536KHz sampling frequency and DSD1024 source output. The audio engine can also achieve a latency response of 1/8 millisecond and a 3Gb audio data bandwidth, bringing you a more perfect sound quality experience.

Premium components
HX600 uses two imported transformers for Talema to supply power to digital circuit and DAC respectively, to achieve clearer musical details. Two high-precision crystal oscillators (90.3168MHz and 98.304MHz) are aimed at 44.1K and 48K frequency doubling respectively. They effectively reduce jitter for a more precise sound. The latest flagship ES9039Pro decoder chip (optional), optimized LPF analog circuit, and six op amps bring you an immersive sound experience.

Rich network protocols help you listen to a large amount of music
HX600 can access and play SMB V1/V1/V3 NAS shared disks over Gigabit wired network and WIFI5. It also supports mobile phones and computers to push high-quality music to the turntable for playing through DLNA, Roon, Airplay, Internet radio, Bluetooth, etc. It also supports connection to Tidal, Qobuz and other online music services through MConnect, so you can enjoy high-quality music at any time.

Features:
- Linux system, 10 seconds to boot, ultra-low latency output
- Octa-core Arm Cortex A53+CPLD asynchronous architecture, control, decoding (optional) and output are completed by independent cores
- Built-in latest flagship ES9039Pro, PCM 1536KHz, DSD1024 direct playing (optional)
- High-precision and low-jitter dual crystal oscillator correspond to 44.1KHz and 48KHz respectively
- Original transformers for Talema and original capacitors for WIMA
- 6.86" ultra-wide HD OLED display with dynamic UI effect brings you perfect visual enjoyment
- It supports up to PCM1536KHz and DSD1024 digital output
- Hard decoding DST64 (6 channels), support DSD to PCM output, SACD direct perfect playback
- Support dynamic display of album pictures
- High-speed USB interface supports USB2.0 and USB3.0 hard disk, USB drive, USB Bluetooth WIFI expansion, etc.
- Support external USB DAC, up to DOP256; source code can support DSD1024
- Support for DLNA, AirPlay, Roon, Bluetooth, QQ Music and other software to play music
- Download mobile App to remotely control and select songs (support for Android, HarmonyOS and IOS)
- Coaxial, optical, BNC and AES support DoP output. HDMI terminal outputs I2S and DSD source code
- USB DAC is compatible with most USB interfaces for XMOS and Amanero, whether interfaces for Amanero support source code needs to refer to the firmware version of the interfaces. Whether the DAC supports USB DOP, you need to consult the DAC manufacturer
- APP enables intelligent control: The APP is compatible with systems for IOS/Android/HarmonyOS. In addition to basic playback controls, you can also make asynchronous system settings, browse music catalogs and play streaming music. It is very convenient to select songs, control playback and set up the system

Format Parameters:
- WAV: Stereo, 44.1KHz-1536KHz, 8Bit-64Bit (to 32Bit output); Support WAV DTS (built-in two-channel downmix, source code output 7.1 channels)
- APE: Stereo, full specification support, 16/24Bit
- FLAC: Stereo, full specification support, 16/24Bit
- AIFF: Stereo, 44.1KHz-1536KHz, 8Bit-64Bit (to 32Bit output)
- ALAC: Stereo, full specification support, 16/24Bit
- AAC: Stereo, LC|LD|HE|HEv2 Profile
- MP3: Stereo, 320Kbps, CBR and VBR
- WMA: WMA9, WMA10 Pro and WMA lossless
- DTS: Built-in binaural decoding, support downmix, 7.1 channels can be output from source
- CUE: Support WAV, APE, FLAC, DTS and other automatic tracks; Support Unicode, UTF-8, ANSI and other encodings
- DSD: DFF|DSF|SACD ISO (both compressed and uncompressed); Uncompressed support for DSD64|128|256|512| 1024; Compression supports DST64 six-channel channels; It can switch DOP and source code output, and supports conversion to PCM output

Package Included:
- 1 x Digital music streamer
- 1 x Accessory box
- 1 x Remote control
- 1 x Wifi & bluetooth antenna
- 1 x Power cable
- 1 x User manual

Note:
- It should be used with an external decoder.

FAQ:
1. What is the maximum external hard drive it supports? Can I connect a decoder to the USB port?
Answer: Connect a USB mobile hard disk through any USB port of the main unit, and the capacity is unlimited. It can also be linked to multiple hard disks and USB drives at the same time. Each of the 4 USB ports of the machine can be connected to an external USB decoder. For decoders that do not support DSD, the unit can also convert to PCM output to decoders to improve higher peripheral compatibility.

2. How do I change the contents of the built-in storage?
Answer: There is about 12G of storage space inside the unit. With the network configured, go to: Main Menu - > System Settings -> Disk Sharing-> hxmelody disk, an IP address will appear on the screen, and then on the computer: start, run. For example:, you can access this disk, add or remove songs from it.

3. How to download mobile phone APP:
Answer: For iPhones, search for hxmelody in the app store to download. Address to download for Android/HarmonyOS cellphone: http://hxmelody.com/app/hx600_app/hxmelody.apk

4. What does natively supported Internet radio mean?
A: Internet radio is hundreds of radio stations obtained through the network, and Internet radio has good sound quality and is not affected by the weather.
