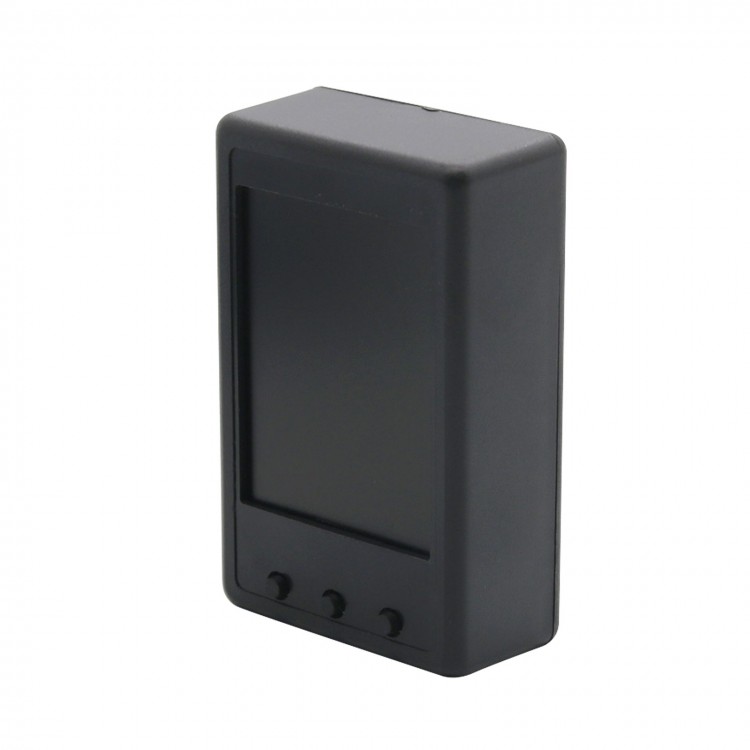

HY-18 Infrared Thermal Imager Handheld Thermograph Camera Infrared Temperature Sensor with Shell

HY-18 Infrared Thermal Imager Handheld Thermograph Camera Infrared Temperature Sensor with Shell

Description:
MLX90640BAB Field of view angle 55*35 degrees (small angle, suitable for long distance measurement). Provide PC software(We will provide download links on 5.27.) to directly display temperature imaging graphics. The module contains a single-chip microcomputer, the serial port directly outputs 768 temperature data, and usb turns ttl directly to the computer to see the data.

The product has a USB data transmission interface, and the new firmware version automatically outputs data to the USB interface by default. Can directly connect to the computer software to display images (computer software baud rate 460808Hz), you can also use the corresponding serial port assistant, computer to save image data.

The original I2C interface of mlx90640 is retained, and the sensor chip can be directly operated by an external MCU (PS is connected to GND).

1. Using the MLX90640BAB sensor, the sensor is factory calibrated
2. Built-in 1000ma rechargeable lithium battery, charging with mciro usb interface
3. With screenshot function, you can pause the picture for analysis
4. With the screen color corresponding to the temperature adjustment function, you can set the temperature to display different colors.
5. With USB data transmission interface, later upgradeable system, free update internal system, default system version 1.0.

Specifications:
- Display: 2.4inch color display, 320*240
- Resolution: 32 x 24
- FOV/Shortest focal length:55°*35°
- Temperature range: -40°-+300°
- Measuring accuracy: ±2°
- Image frequency: 8HZ
- Emissivity: 0.1-1.0/Adjustable
- Focus mode: Fixed
- Operating temperature: 0℃-50℃
- Storage temperature: -40℃-70℃
- Humidity: <90%RH
- Size: 80*50*26mm
- Weight: 220g

1. ε=0.95 current emissivity (object emissivity)
2. T=31.9 master chip temperature
3. Electricity
4. The lowest temperature
5. The center of the field of view
6. The highest temperature point
7. The color shift value/Magnified multiple
8. The temperature value corresponding to the leftmost end of the color-bar
9. The corresponding temperature value in the middle of the color-bar
10. The temperature value corresponding to the right end of the color-bar
11. The center of the field of view temperature
12. The maximum temperature in the field of view
13. The minimum temperature in the field of view
14. Infrared sensor temperature
15. Power on / off / menu / OK / stop button
16. Plus button
17. Minus button

Package Included:
- 1 x Infrared Thermal Imager

Download User Manual:
http://myosuploads3.banggood.com/products/20190715/20190715041427EnglishUserManual.pdf

Download Firmware:
myosuploads3.banggood.com/products/20190715/20190715041835FirmwareDownloadandUpdate.rar

Downlaod PC Software:
myosuploads3.banggood.com/products/20190715/20190715015834mlx90640ENv1.01.rar
