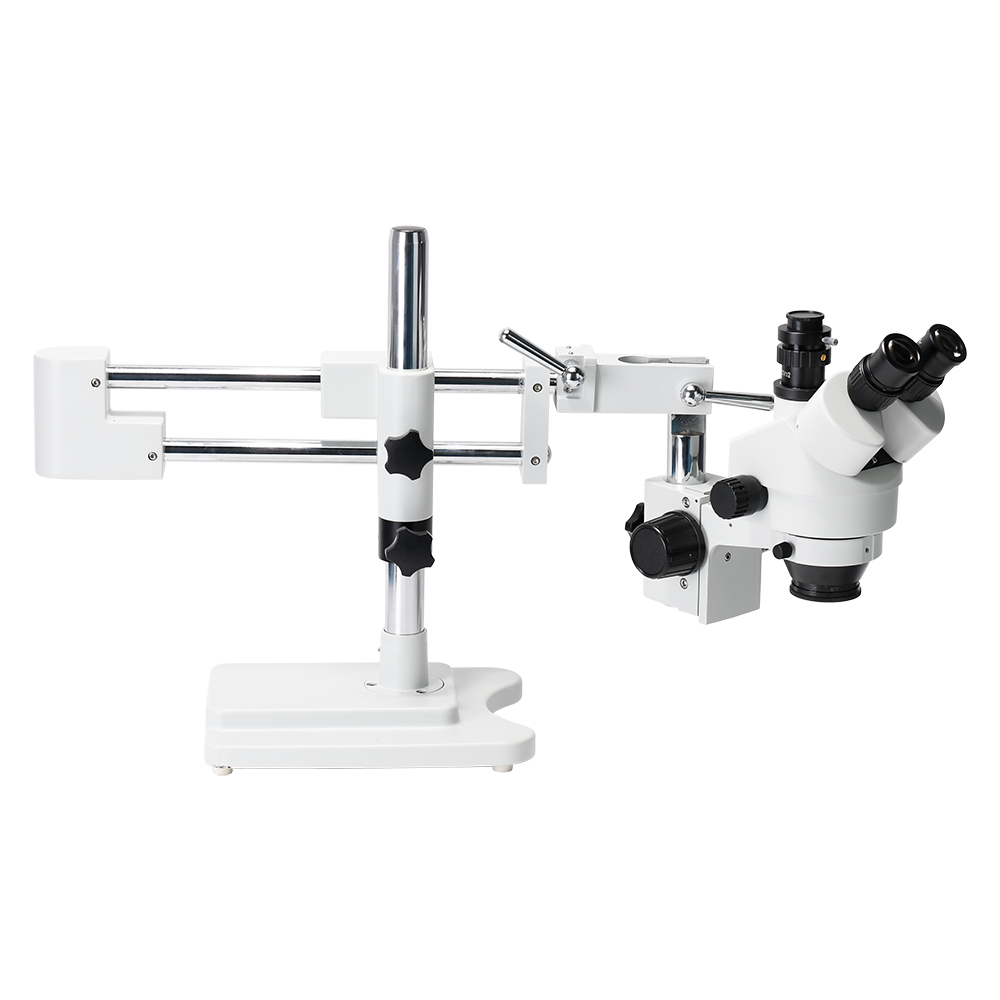

HY-2307 14MP Trinocular Microscope Camera Simul-Focal Double Boom Stand Trinocular Stereo Zoom Microscope

HY-2307 14MP Trinocular Microscope Camera Simul-Focal Double Boom Stand Trinocular Stereo Zoom Microscope

Features:
- An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light
- 7X-45X super wide zoom magnification power
- Bright cool light 144-LED illumination system
- High resolution with great flatness and contrast, giving sharp and clear images
- Binocular head with 45 degree inclined 360 degree swiveling eye tubes
- Sharp stereo erect images with a wide field of view
- Crystal clear original true color microscope images
- Dual eye tubes with adjustable diopters
- Large working distance
- Sturdy all-metal table stand
- Accurate alignment reduces eye strain for longer periods of viewing
- Full optical glass elements
- Precise ground glass lenses
- Full metal chrome-plated mechanical components
- Adjustable interpupillary distance
- Rubber eye-guards included
- Expand the scope of operations, any orientation and angle observed the objectives.
- Vertical Pillar: 380mm (height); 32mm (diameter)
- Horizontal moving: 235mm
- Base size: 210 x 260 x 40mm
- Steel gears on focusing holder
- Standard size focusing holder - will fit scope heads with diameter of 76mm

144 Bright White LED Bulbs:
- 100,000 hours of life
- Intense and focused shadow-free illumination
- The brightness of 0-100% adjustable, high brightness
- Variable intensity control
- Power input: 100 - 240V, 50 - 60HZ
- Suit for the of the lens: 30mm - 63mm

Camera Specification:
- Item type: microscope camera
- Model: HY-2307
- Sensor: 14MP CMOS
- Optical format: 1/2.9inch
- Pixel size: 1.335μm x 1.335μm
- Interface: HDMI-compatible (Type A). USB (Type B). small memory card
- Image: 14MP
- Video resolution: 2K at 30FPS; 1080p at 60FPS
- HDMI-compatible resolution: 1920 x 1080p 60FPS
- HDMI-compatible scale: support 4:3, 16:9, 16:10 screen
- USB2.0 (Drive Free): 1920 x 1080 at 30FPS; 1280 x 720 at 30FPS; 640 x 480 at 30FPS
- Small memory card: up to 128GB (not included)
- AWB: AWB color correction/automatic/manual
- R.G.B value setting independent
- Exposure: automatic/manual. AE value can be set
- Cross line: 8 lines, color, width, position can be set
- Scale line: 2 lines
- Dotted line: 2 lines, color, width, position can be set
- Sharpness contrast color gain: support
- Mono negative film: support
- Mirror: horizontal and vertical mirror
- Language: English/Simplified Chinese/French/Spanish/Japanese/German and other languages
- Digital zoom: support
- Infrared remote control: support
- Voltage input: DC 12V
- Power supply voltage: AC100-240V for input; DC12V for output
- Power consumption: maximum 0.15W, 12V, 0.12A
- Lens interface: C/CS port
- Remote control battery: 1 x CR2025 button battery (delivered without battery)

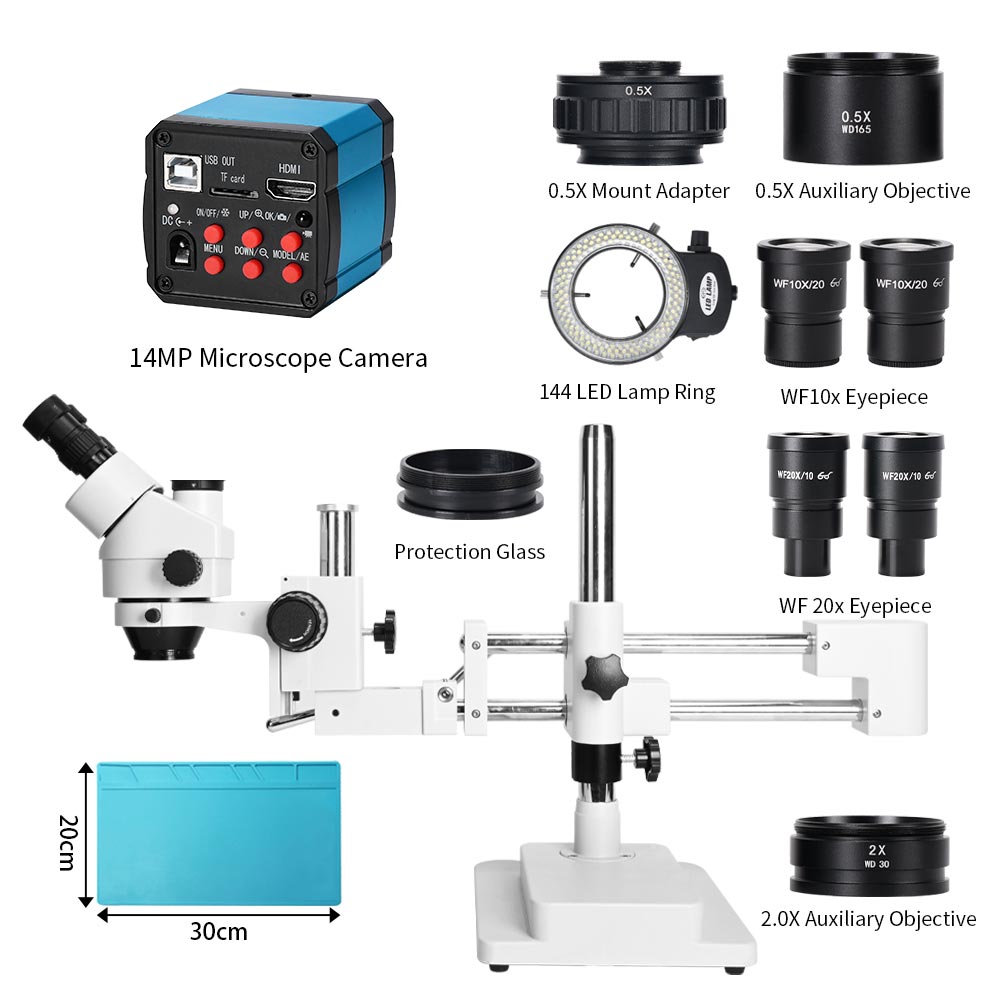

Package Included:

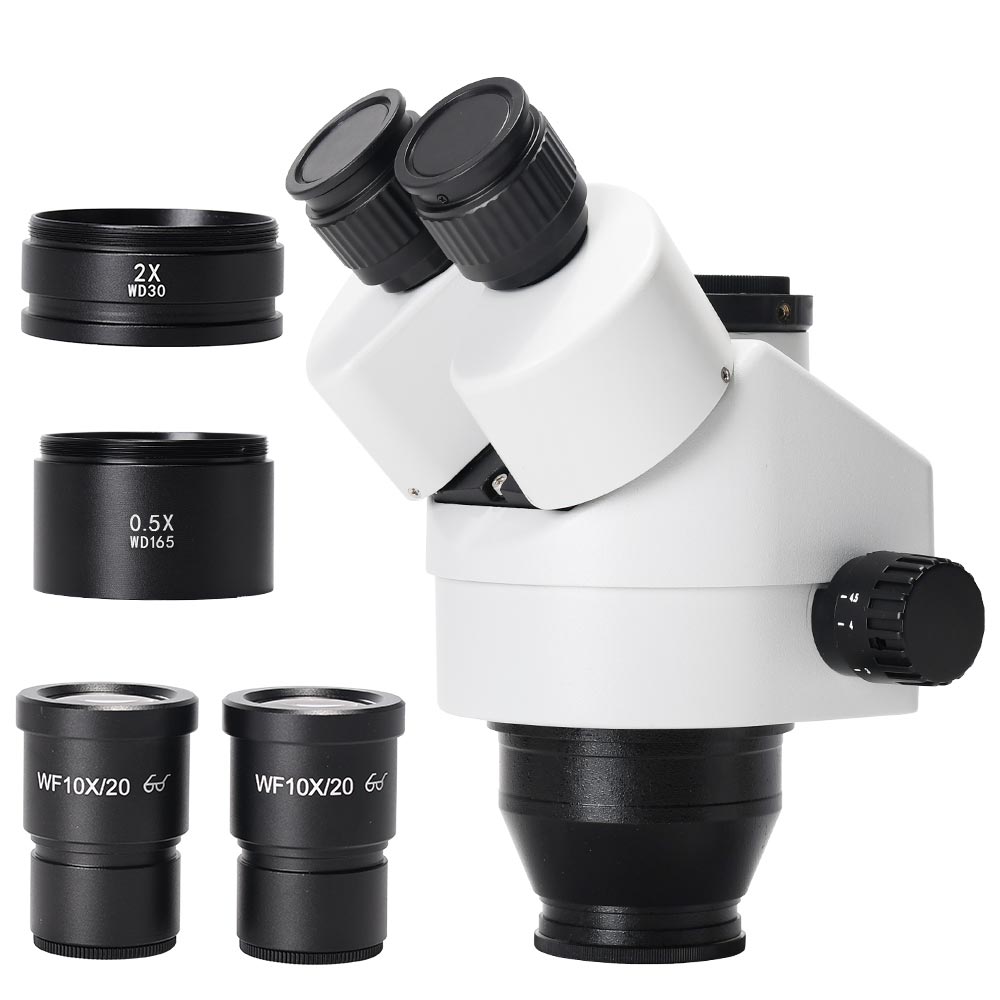

- 1 x Trinocular Stereo Zoom Head
- 1 x Pair of Super Wide-field 10X20MM Eyepieces
- 1 x 144-LED Ring Light
- 1 x Double Boom Microscope Bracket
- 1 x Focusing Rack
- 1 x 0.5X C-mount Adapter
- 1 x Pair of Eye-Guards
- 1 x Dust Cover
- 1 x Microscope Camera
- 1 x Power Adapt
- 1 x IR Remote Control
- 1 x HDMI-compatible Lines
- 1 x Paper Manual

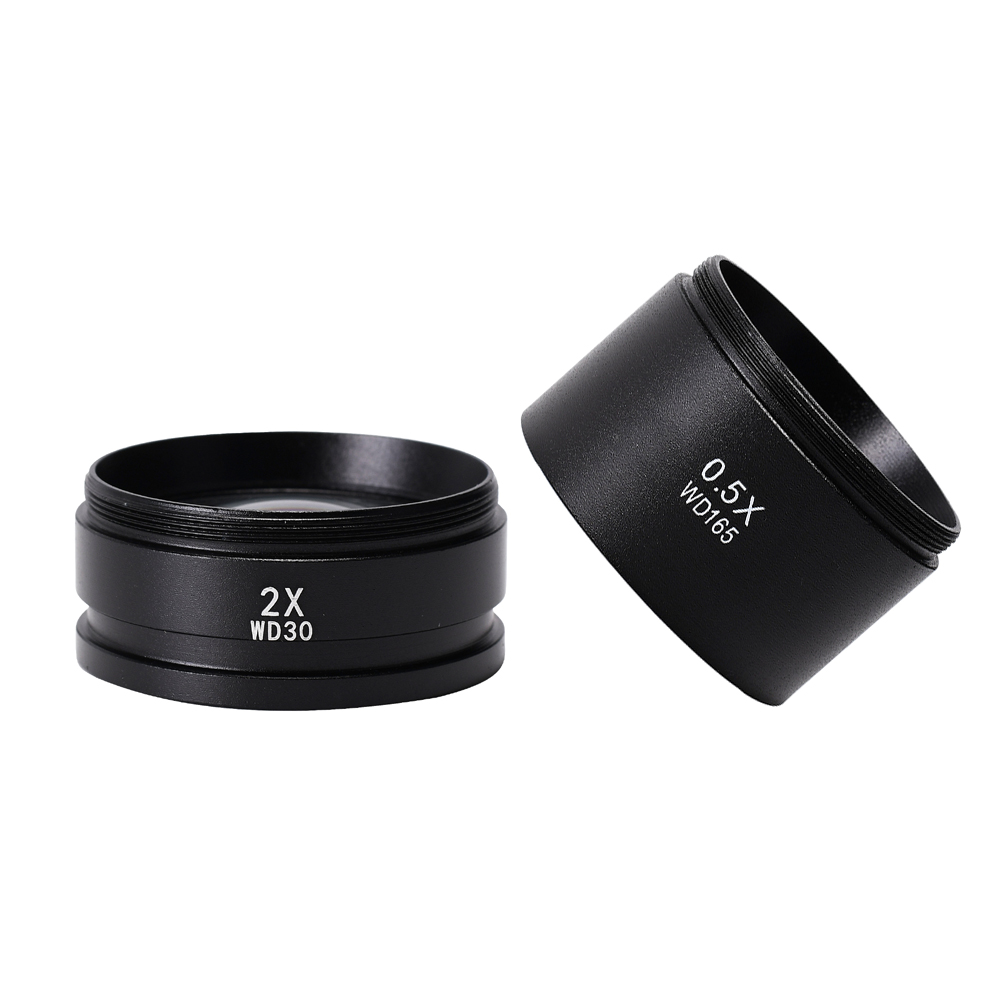

- 1 x 0.5X Microscope Auxiliary Objective Lens (Working Distance 165 mm)
- 1 x 2.0X Microscope Auxiliary Objective Lens (Working Distance 40 mm)
- 1 x High Temperature Resistant Working Pad

Note:
- The button battery is not included.
