HY-2307 Industrial Microscope Camera 14MP HDMI/USB Output Support TF Card for Mobile Phone PCB Repair
Features:
- HDMI 14MP
- Built-in adjustable crosshair set
- Support TF card to store image and video
- USB port for measuring function
- DC 12V transformer
- Red menu buttons for easy operation
- Adopted image sensor 1/2.3"
- 60fps transmission speed
- Wireless remote control
Specifications:
- Model: HY-2307
- Image Sensor: 14MP 1/2.3" Sensor
- Pixel Size: 1.43 x 1.43μm
- Frame Rate: 60fps
- Photo Resolution: 4320x3240; 1920x1080 (For TF card storage)
- Video Format: MP4, MOV (For TF card storage)
- Video Resolution: 1920x1080@60fps
- USB Video Resolution: 1920x1080@30fps
- White Balance: Manual, automatic white balance
- Built-in Crosshair: 4 colors available. 4 vertical and 4 horizontal movable lines
- TF Card Port: Support TF card up to 32G (8G/16G recommended)
- Digital Magnification: 5X digital zoom
- USB Port: Standard USB2.0
- Freeze: Freeze/Thaw Function
- OSD: Simplified Chinese, Traditional Chinese, English & Russian
- Exposure: Support EV value adjustment (Exposure Compensation)
- Color:R/G/B adjustable
- Lens: For C or CS connector
- Camera Ports: Standard HDMI port, USB2.0 output port, power supply port and port for TF card.

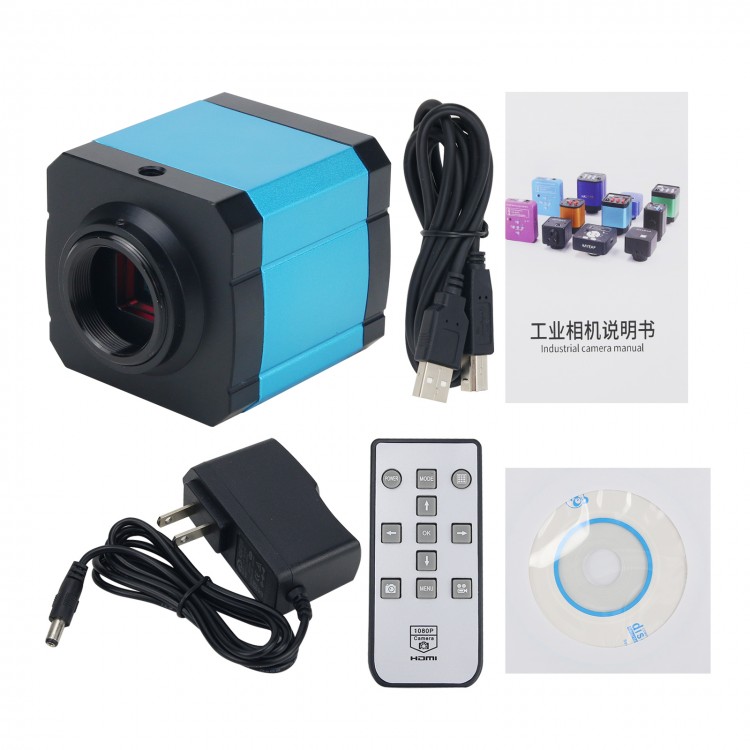

Package Included:
- 1 x 14MP Industrial Microscope Camera
- 1 x Remote Control
- 1 x Power Supply
- 1 x Disc (with measuring software)
- 1 x USB Data Cable
Note: Batteries and TF card are not included in the package.
