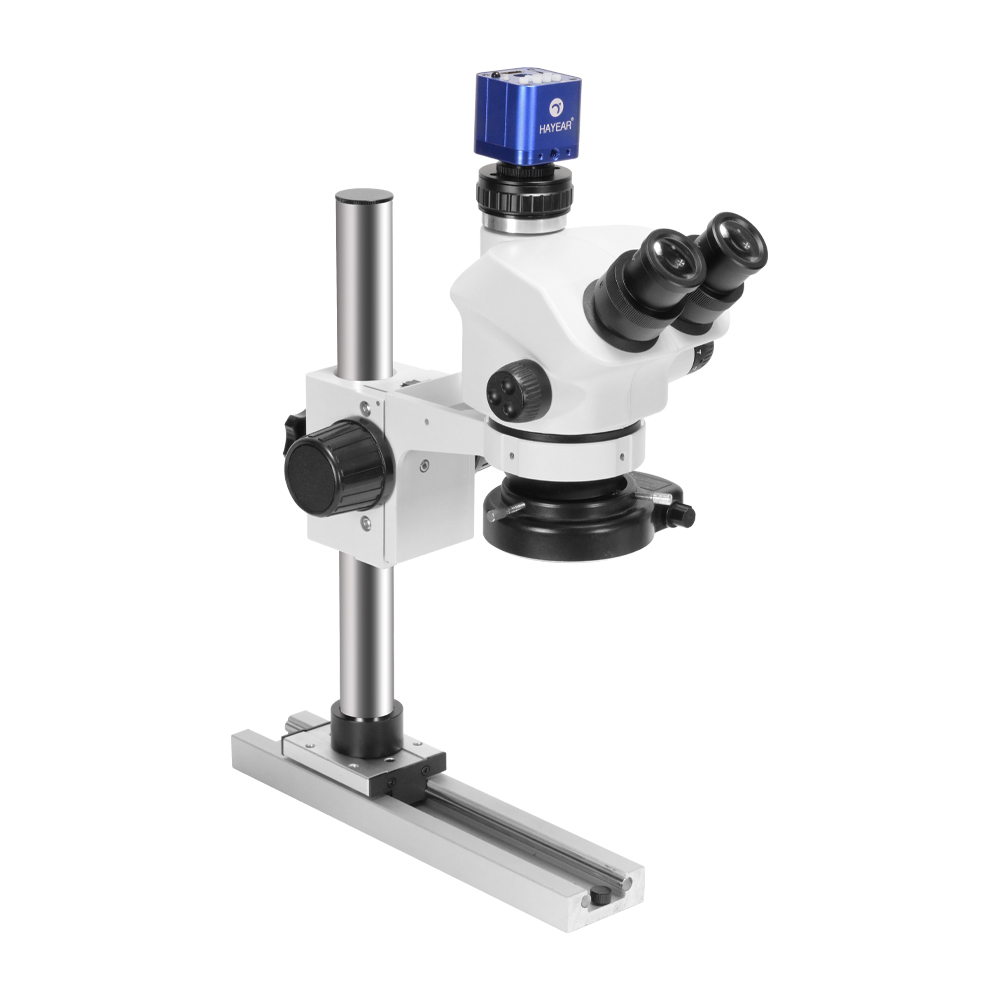

HY-5100-HG7045 7-50X Slide-rail Base Microscope Stand Digital Camera Stereo Trinocular Lens for Cellphone Repair Soldering Tools

HY-5100-HG7045 7-50X Slide-rail Base Microscope Stand Digital Camera Stereo Trinocular Lens for Cellphone Repair Soldering Tools

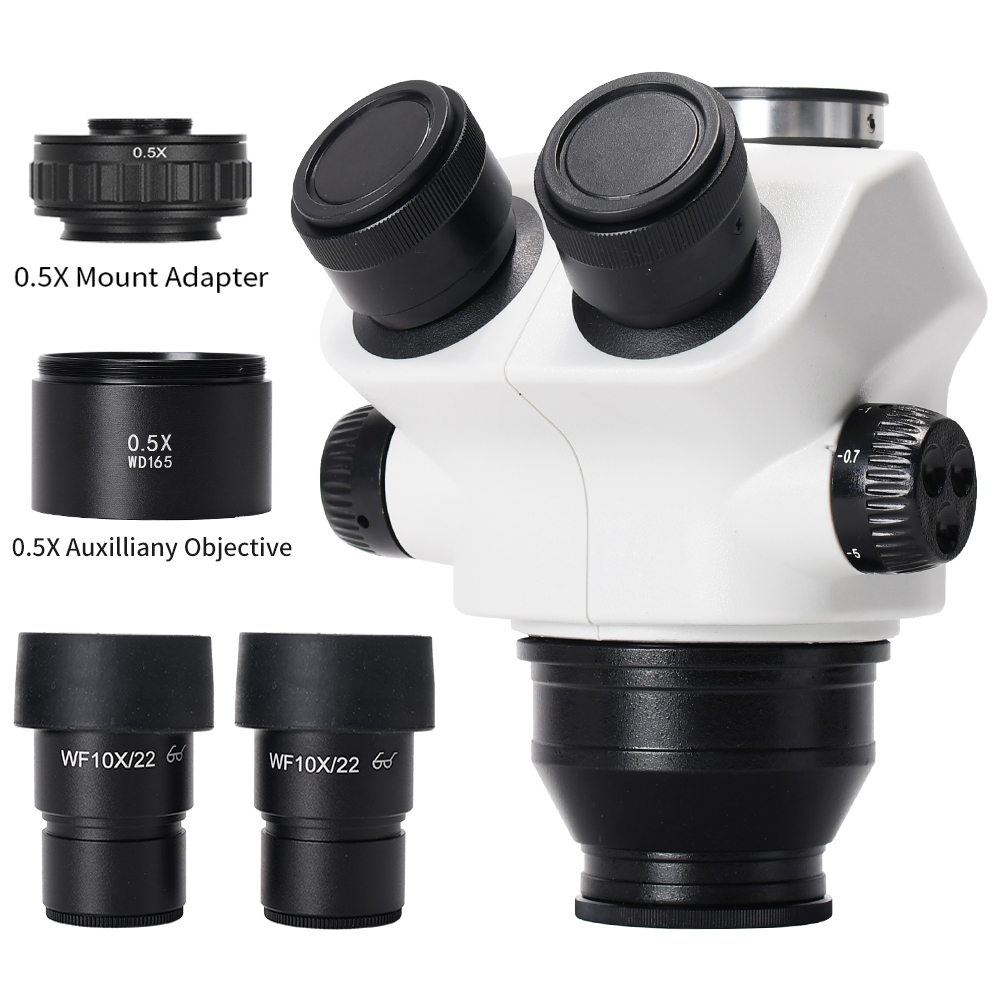

Trinocular Stereo Specification:
- 7X to 50X continuous zoom magnification power
- 45-degree Inclined Trinocular Simul-Focal head with SUPER WIDEFIELD High-eyepoint eyepieces
- Wide-field WF10X eyepieces with 22mm Field of View
- Objective: 0.7-5X
- Zoom range: 6.5:1
- Trinocular port: 25mm photo port
- Interpupillary distance: 2-1/8" to 3" (54-76mm)
- Field of view: 1-1/4" (33mm)
- Working distance: 7X-50X (100mm); Use 0.5x objective lens 3.5X-22.5X (165mm)
- Head mounting size: 3" (76mm) diameter
- Trinocular port for adding photo or video capability
- High resolution with great flatness and contrast
- Sharp stereo erect images over a wide field view
- Crystal clear original true color images
- Large working distance
- Accurate alignment ensuring a fatigue-free viewing
- Full optical glass elements
- Precise ground glass lens
- Adjustable interpupillary distance
- Bracket hole: 76mm
- Spin angle: horizontal±15°

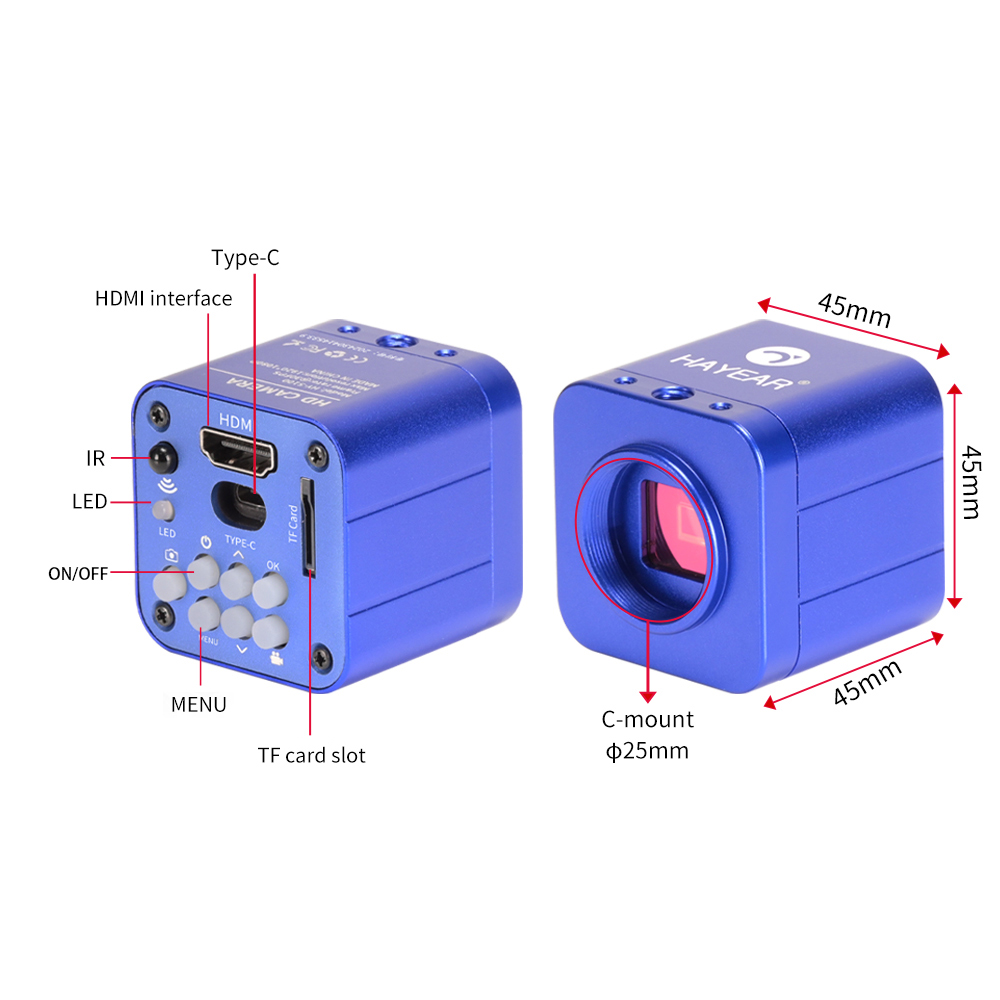

Microscope Camera:
- Module: HY-5100
- Sensor: 24MP CMOS
- Optical format: 1/2.9inch
- Pixel size: 2.85μm x 2.85μm
- Interface: HDMI-compatible (Type A). USB (Type B). Small memory card
- Photographic image resolution: 16MP (4K: 4680 X 3456)
- HDMI-compatible resolution: 1920 x 1080P
- HDMI-compatible scale: support 4: 3, 16: 9, 16: 10 screen
- USB2.0 (Drive Free): 1920 x 1080 at 30FPS; 1280 x 720 at 30FPS; 640 x 480 at 30FPS
- Small memory card: up to 128GB (not included)
- AWB: AWB color correction/automatic/manual
- R.G.B value setting independent
- Exposure: automatic/manual. AE value can be set
- Cross line: 8 lines, color, width, position can be set
- Scale line: 2 lines
- Sharpness contrast color gain: support
- Mono negative film: support
- Language: English/Simplified Chinese/French/Spanish/Japanese/German  and other languages.
- Digital zoom: support
- Infrared remote control: support
- Voltage input: DC 12V
- Power supply voltage:
  Input: AC100 - 240V
  Output: DC12V
- Lens interface: C/CS port
- Remote control battery: 1 x CR2025 button battery (delivered without battery)

144 Bright LED:
- Variable lighting direction
- Variable power control
- Strong and concentrated shadowless lighting
- 100,000 hours of life
- Power input: 100-240V, 50-60HZ, automatic switching
- The inner diameter of the ring light: approx. 27mm / 1.1in
- Overall outer diameter: approx. 45mm / 1.8in
- Working distance: approx.27 ~ 120mm / 1.1 ~ 4.7in

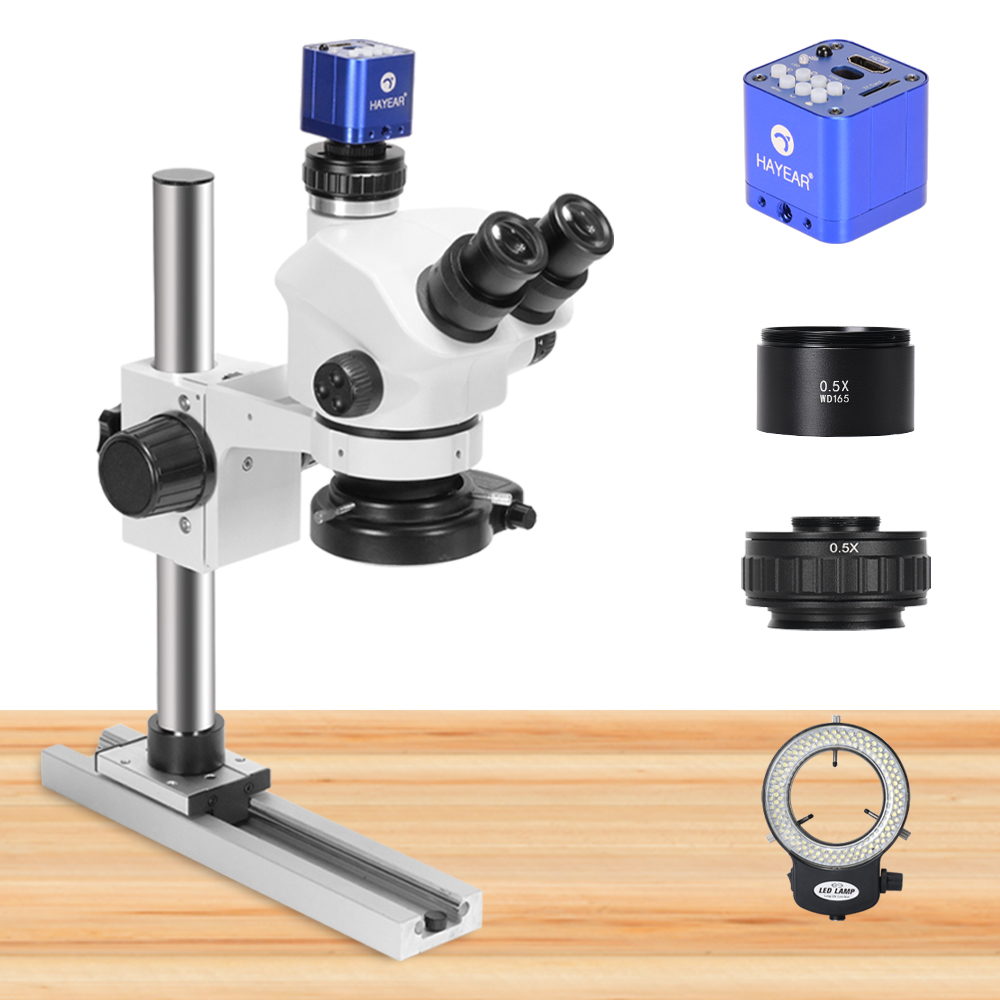

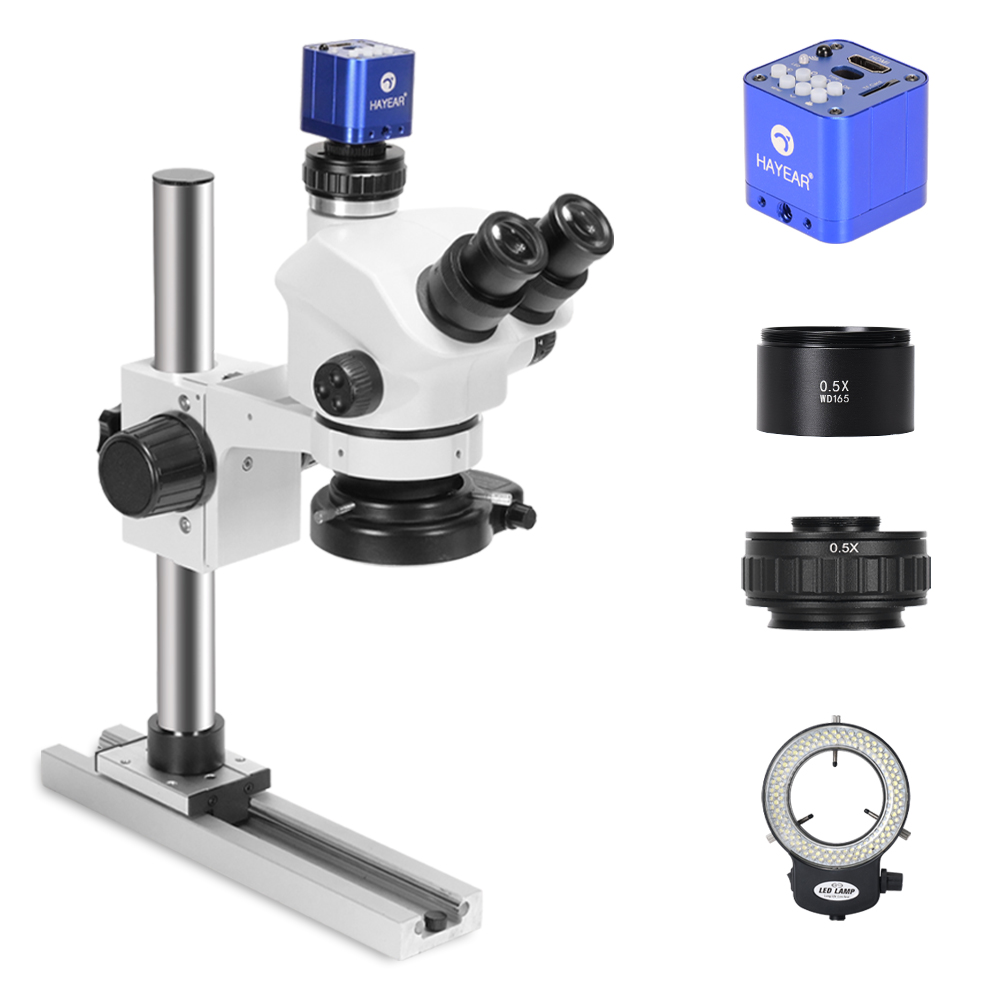

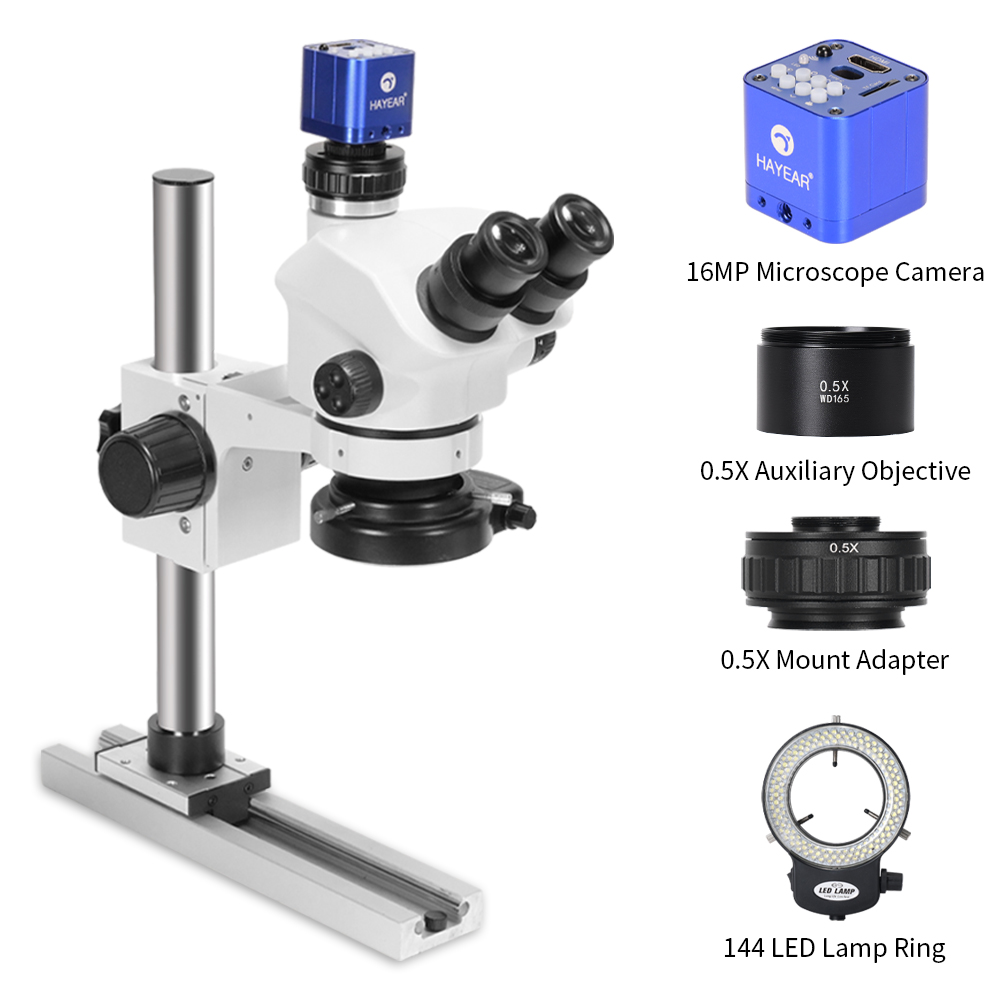

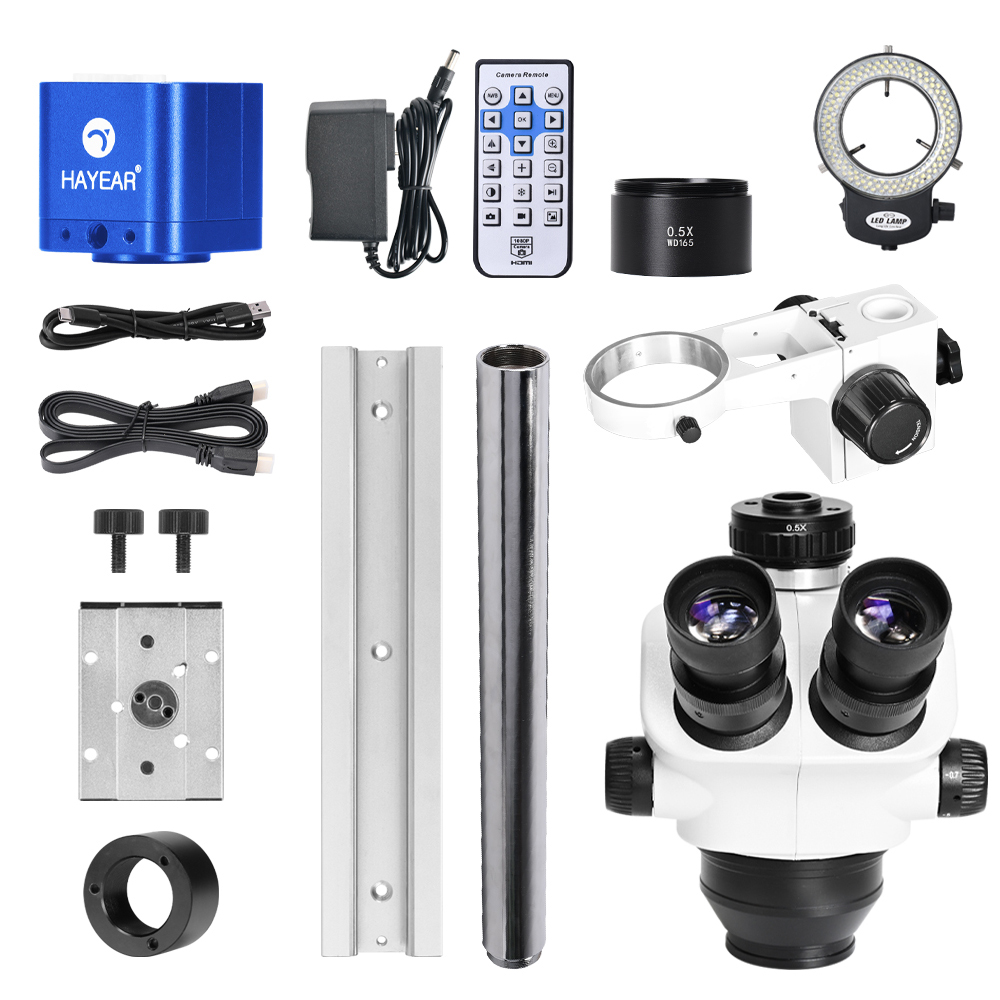

Package Included:
- 1 x Microscope Camera
- 1 x IR Remote Control
- 2 x Power Adapter
- 1 x Trinocular Stereo Zoom Head
- 1 x Pair of Super Wide-field 10X22MM Eyepieces
- 1 x 144-LED Ring Light

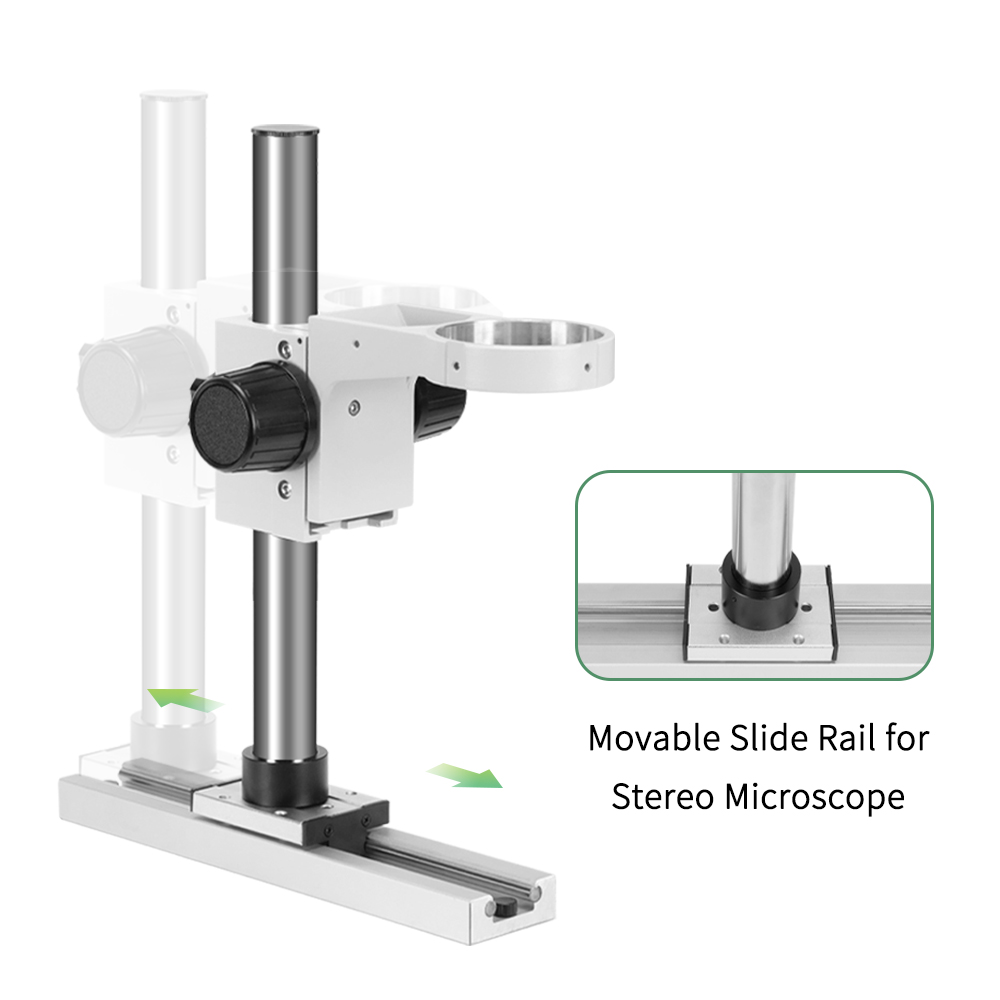

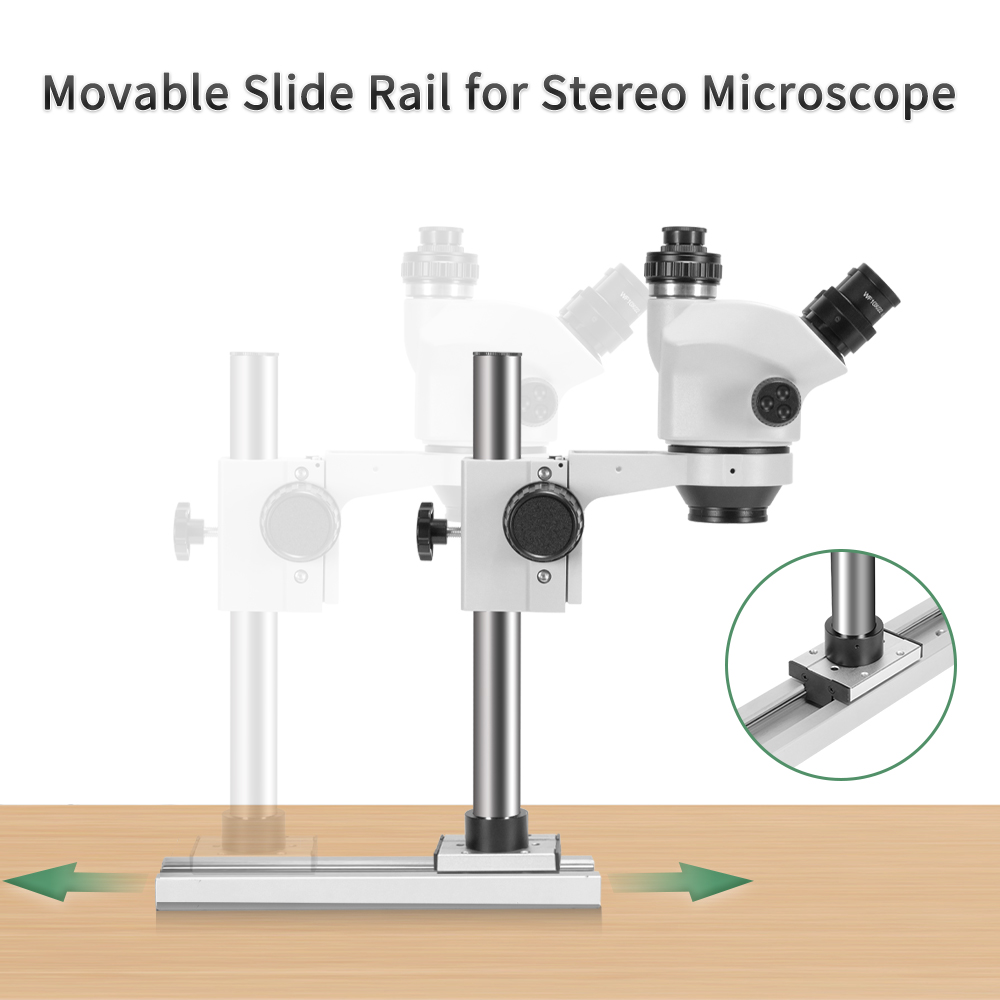

- 1 x76mm Slide Rail Base Bracket
- 1 x Simul-Focal Adapter
- 1 x Pair of Eye-Guards
- 1 x Dust Cover
- 1 x Paper Manual

Note:
- Battery is not included.
