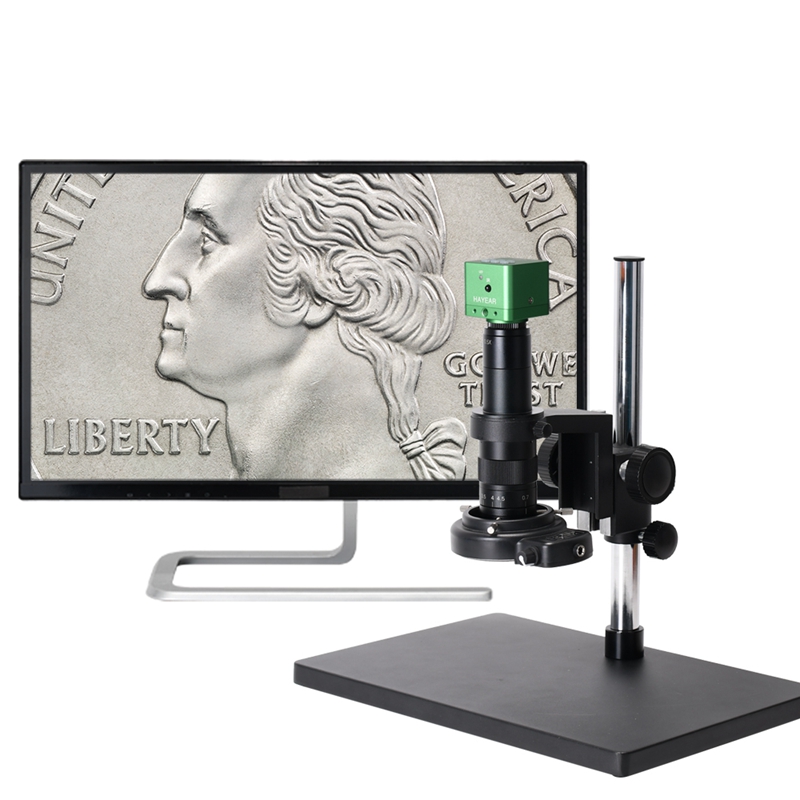

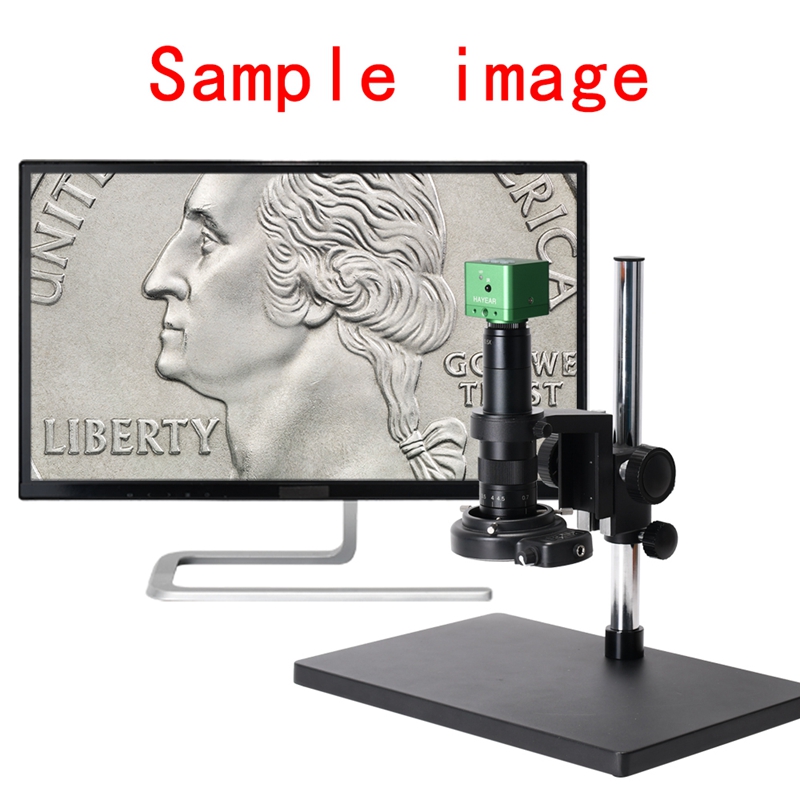

HY-6210-10A 4K USB HDMI Digital Video Monocular Microscope Industrial Camera 180X C-Mount Soldering Phone Repair Tool

HY-6210-10A 4K USB HDMI Digital Video Monocular Microscope Industrial Camera 180X C-Mount Soldering Phone Repair Tool

Features:
- Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.
- Especially suitable for observing the surface micro-structure of large objects.
- Using highquality materials, strong and durable, has a long service life.
- HD camera with 41 megapixel for CMOS sensor 1/1.8 inch, with HDMI USB port.
- Strict quality control and quality assurance, high safety factor, can be used with peace of mind.

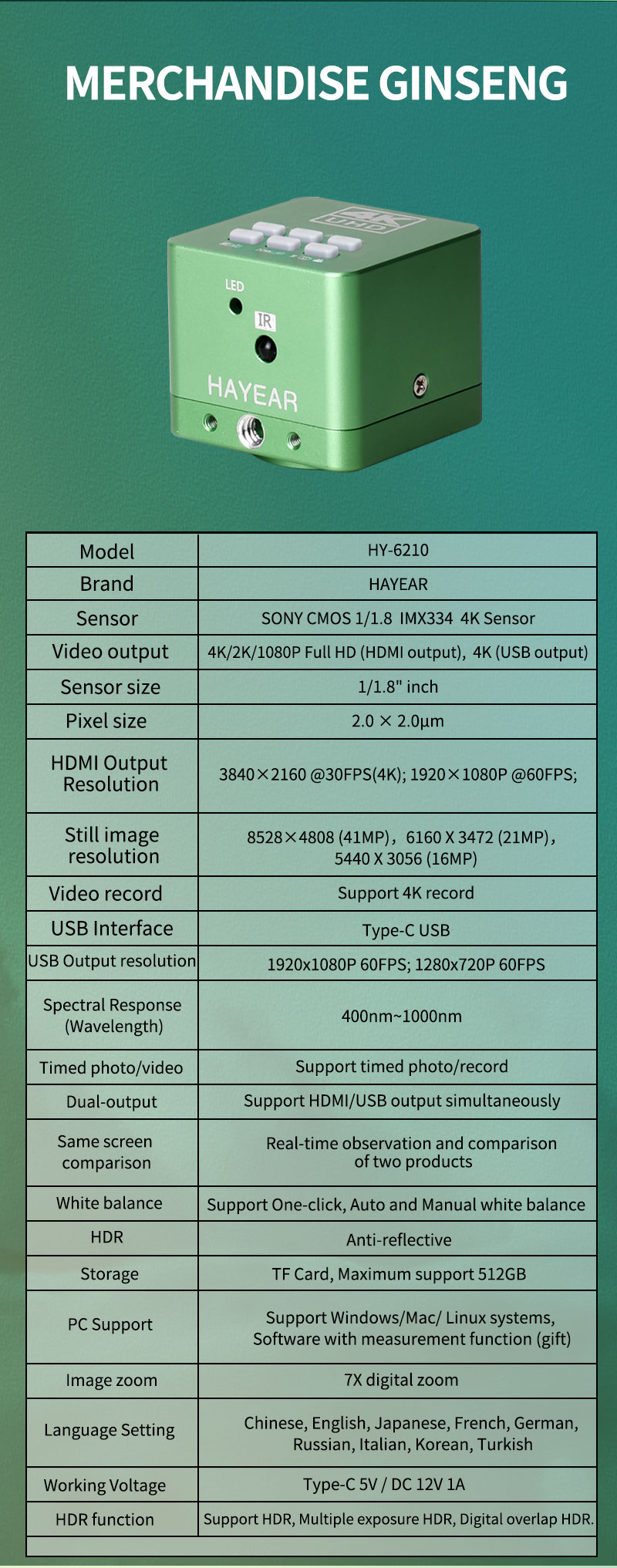

Specification:

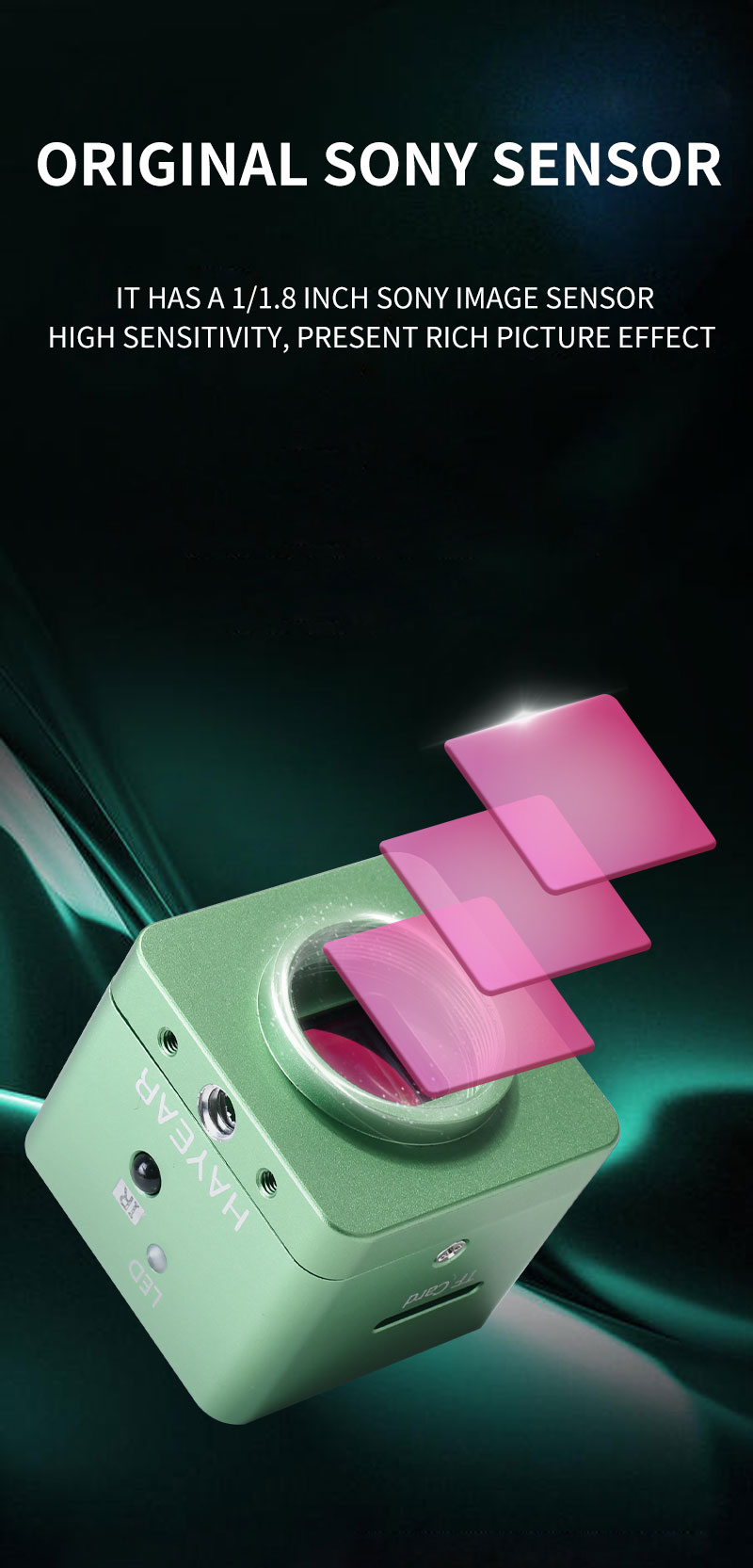

- Sensor: For CMOS IMX334 Sensor
- Optical Format: 1/1.8inch
- Pixel Size: 2.0μmx2.0μm

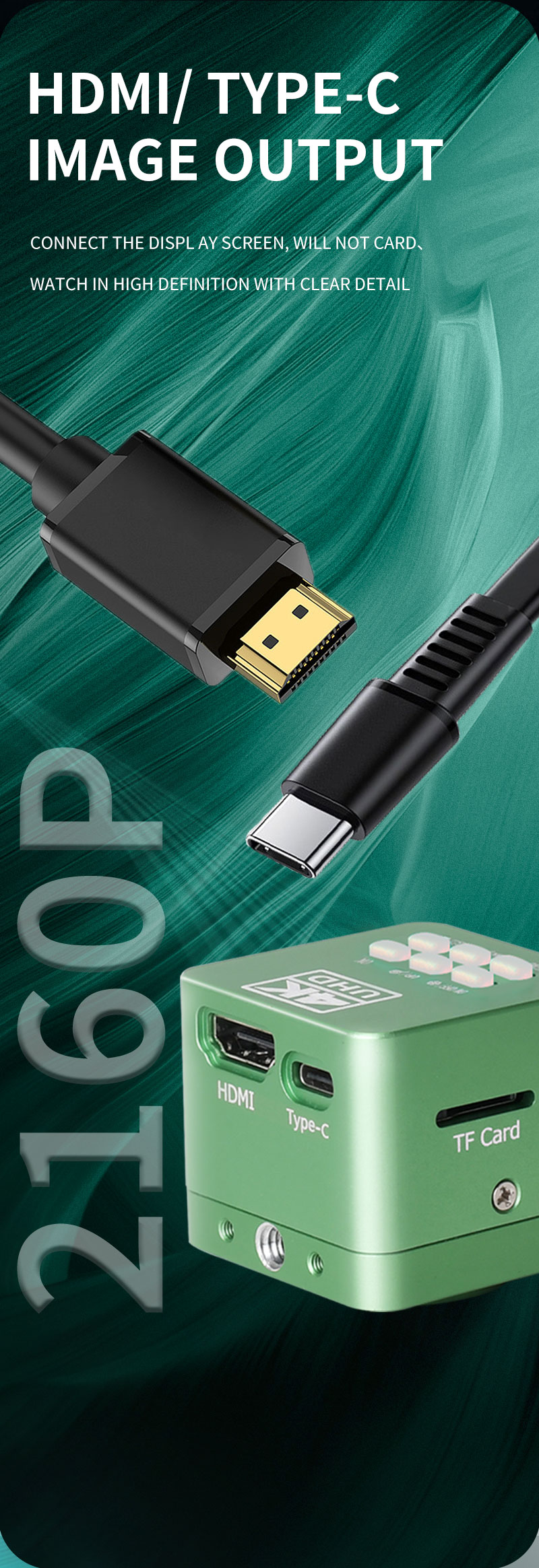

- Interface: HDMI (Type A). USB (Type B). Small memory card
- HDMI Image Resolution: 41MP
- HDMI Video Resolution: 4K:3840x2160P 30FPS 2K:1920x1080P at 60FPS
- HDMI Scale: Support 4: 3,16: 9 screen
- USB2.0 (Drive Free): 1920 x 1080 at 60FPS 1280 x 720 at 60FPS
- Small Memory Card: Up to 512GB (not included)
- AWB:AWB color correction/automatic/manual
- R.G.B value setting independent
- Exposure: Automatic/manual. AE value can be set
- Cross Line: 8 lines, color, width, position can be set
- Scale Line: 2 lines
- Dotted Line: 2 lines, color, width, position can be set
- Sharpness Contrast Color Gain: Support
- Mono Negative Film: Support
- Mirror: Horizontal and vertical mirror
- Language: English/Simplified Chinese/French/Spanish/Japanese/German And other languages.
- Digital Zoom: Support
- Infrared Remote Control: Support
- Voltage Input: DC 12V
- Power Supply Voltage: Input: AC100-240V
- Output: DC12V
- Power Consumption: Maximum 0.15W 12V, 0.12A
- Lens Interface: C/CS port
- Remote Control Battery: 1 x 2302 button battery (not included)

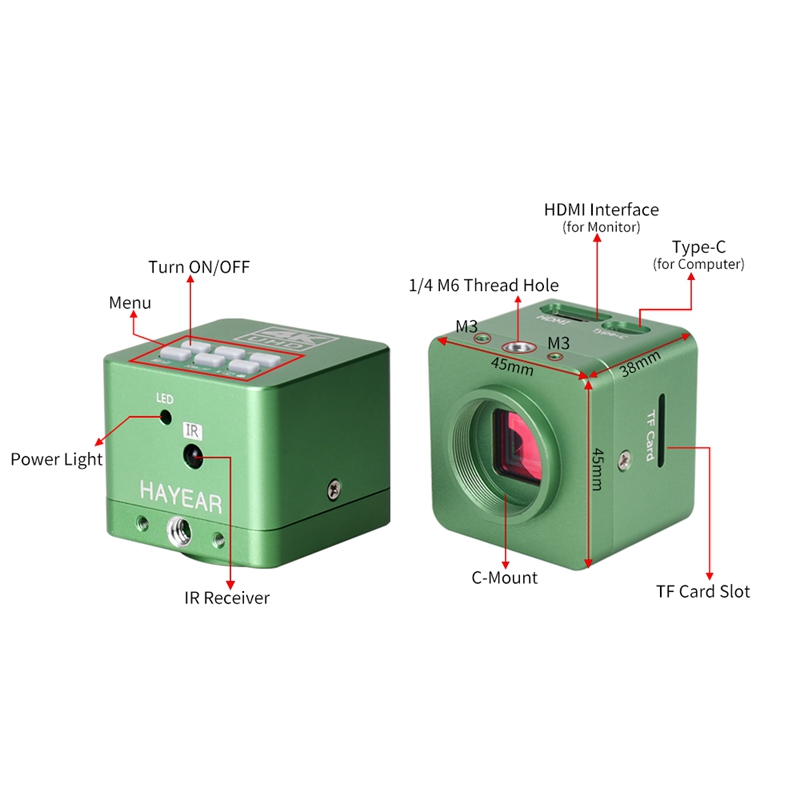

- Camera size 45 x 45 x 38MM (L x W x H)
- Package size 210x145x80MM (L x W x H)

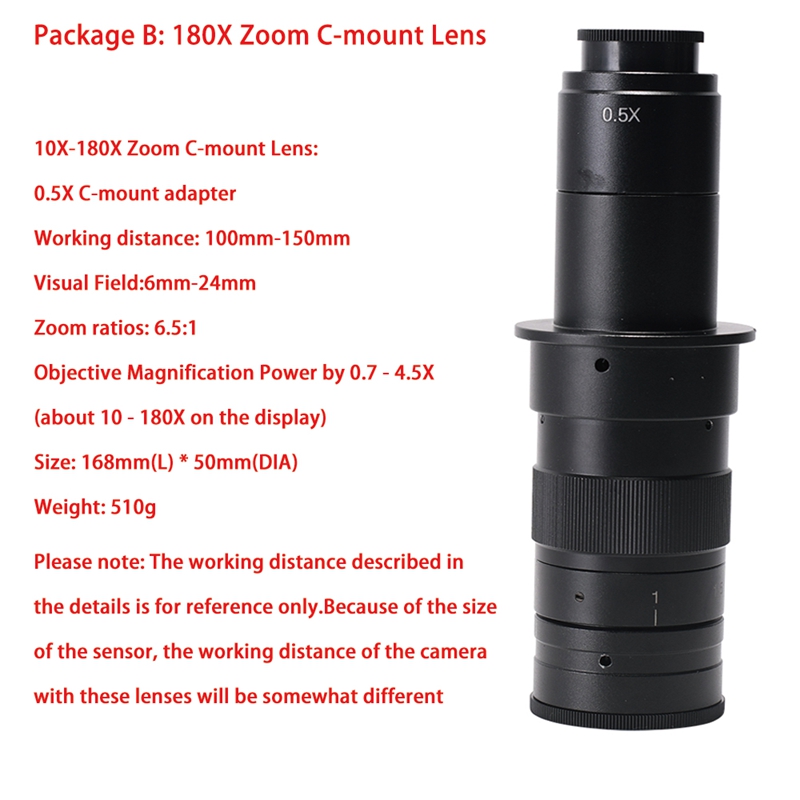

180X C lens:
- Working Distance: Approx.95mm / 3.7in
- Zoom C mount lens
- 0.5X Type C adapter
- Scaling Ratio: 6.5: 1
- Objective lens magnification 0.7-4.5X (approximately 10-180X on the screen)
- Size: L x DIA = 180 x 50mm / 7.1 x 2in (180X maximum working distance approx.11.5cm / 4.5in)

144 LED Adjustable Compact Microscope Ring Light:
- Provides intense and focused shadow-free illumination
- 144 bright white LED bulbs
- Lighting direction changeable
- Variable intensity control
- Intense and focused shadow-free illumination
- 100,000 hours of life
- Power input: 100-240V, 50-60HZ, auto switching
- Inside diameter of the ring light: 1.0” (27mm)
- Overall outside diameter: 1.77” (45mm)
- Working Distance: 27mm-45mm

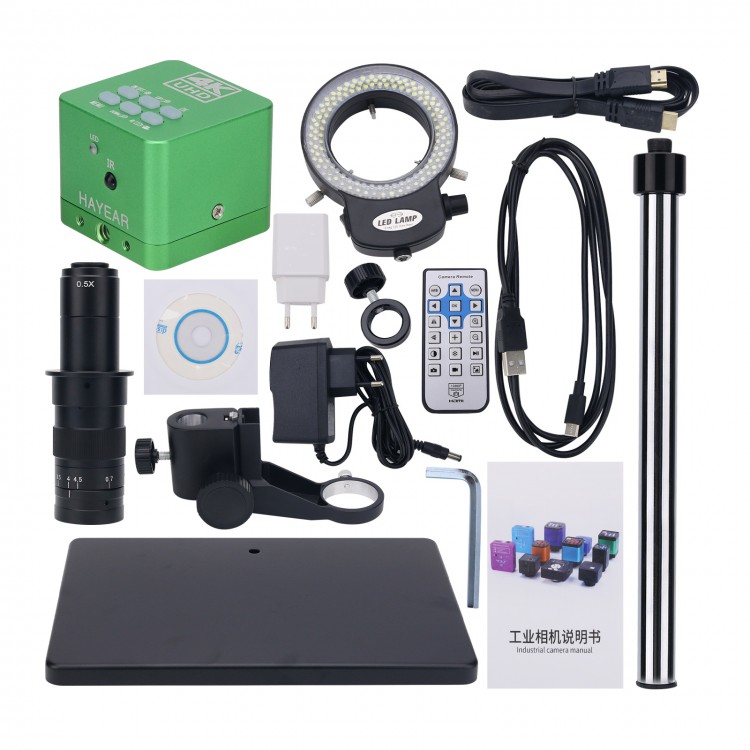

Package Included:
- 1 x Microscope Camera
- 1 x 180X Lens
- 1 x 144 LED Microscope Ring Light
- 1 x Stand
- 1 x Power Supply
- 1 x Remote Control
- 1 x USB Cable
- 1 x HDMI Cable
