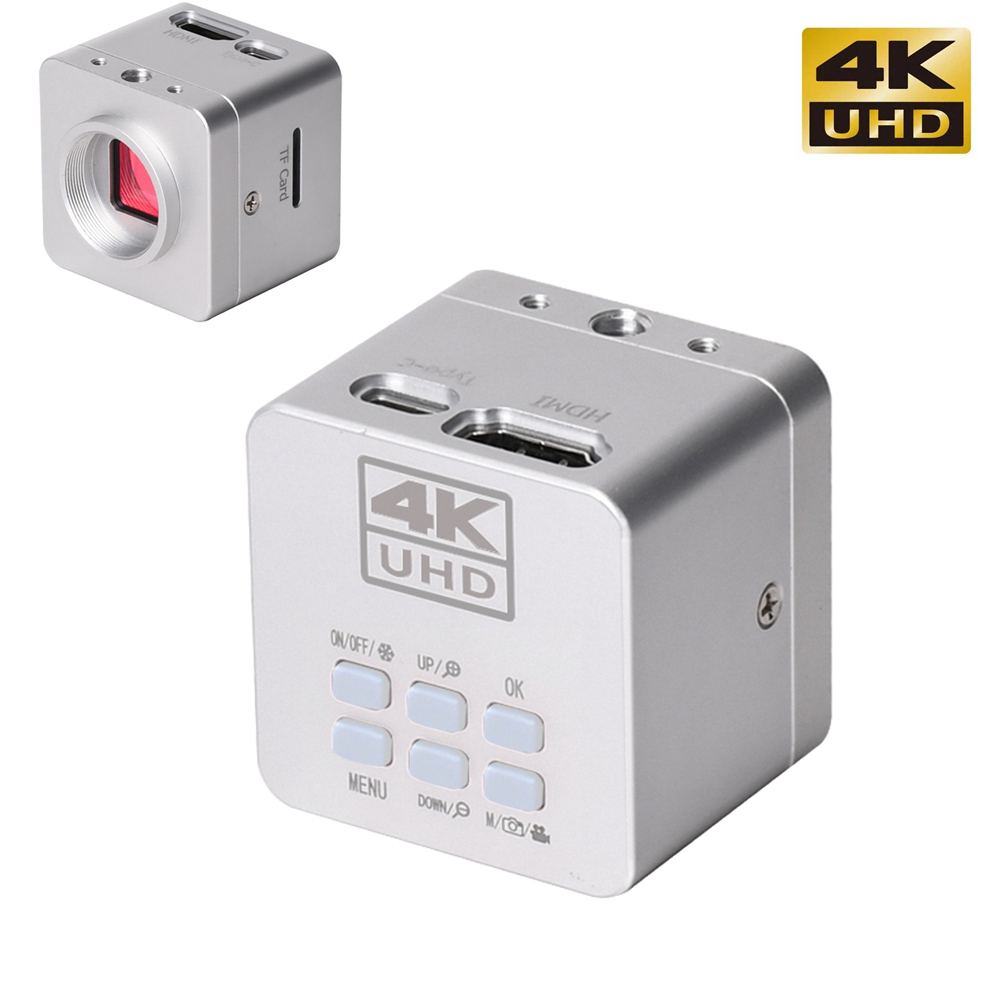

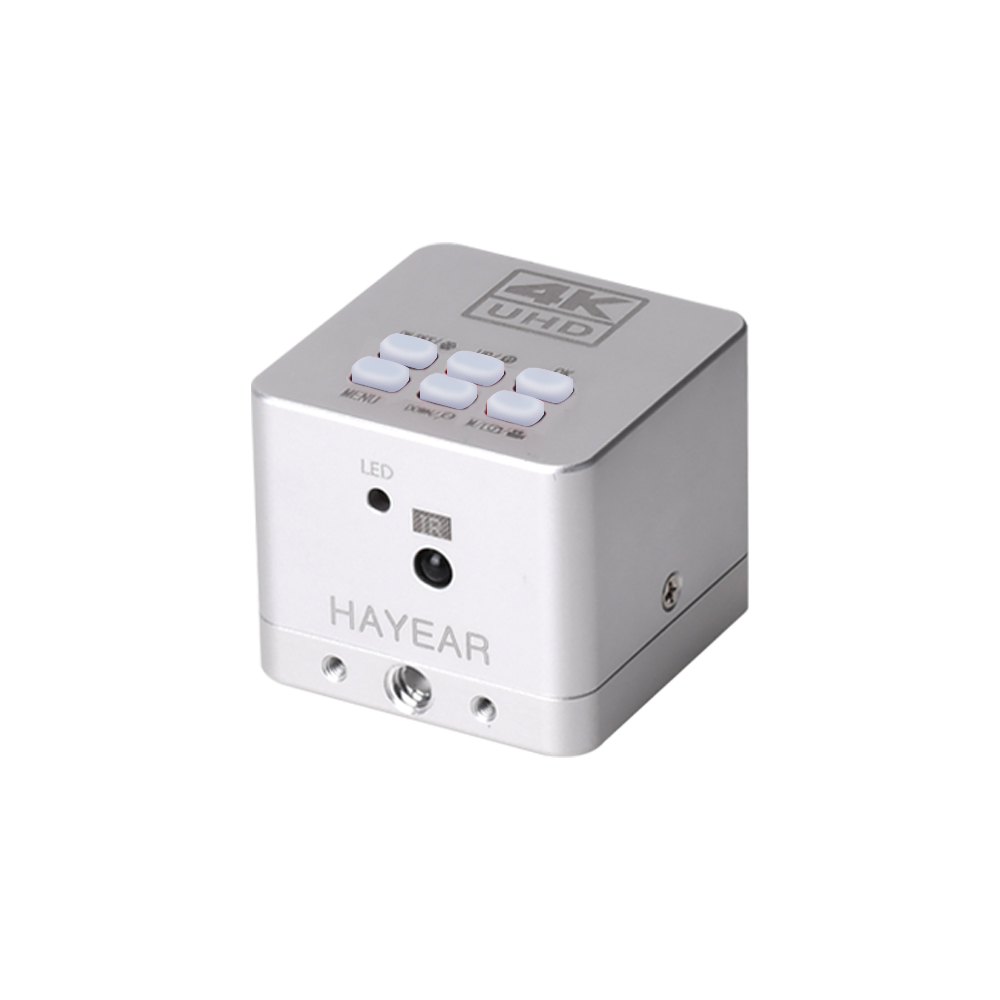

HY-6210 Silvery 4K UHD Microscope Camera Electronic Eyepiece Industrial Camera for Cellphone Repair and Soldering

HY-6210 Silvery 4K UHD Microscope Camera Electronic Eyepiece Industrial Camera for Cellphone Repair and Soldering

Specification:
- Sensor: for SONY IMX334
- Real-time output resolution: 4K/2K/1080P
- Sensor Size: 1/1.8inch
- Pixel Size: 2.0 x 2.0μm
- Image Resolution: 8528 x 4808 (41MegaPixel)
- HDMI Resolution: 3840 x 2160 at 30FPS(4K); 1080P at 60FPS
- USB Resolution: 1920 x 1080 at 30FPS, 1280 x 720 at 30FPS
- Image Format: JPEG
- Wave Length[nm]: 400nm~1000nm

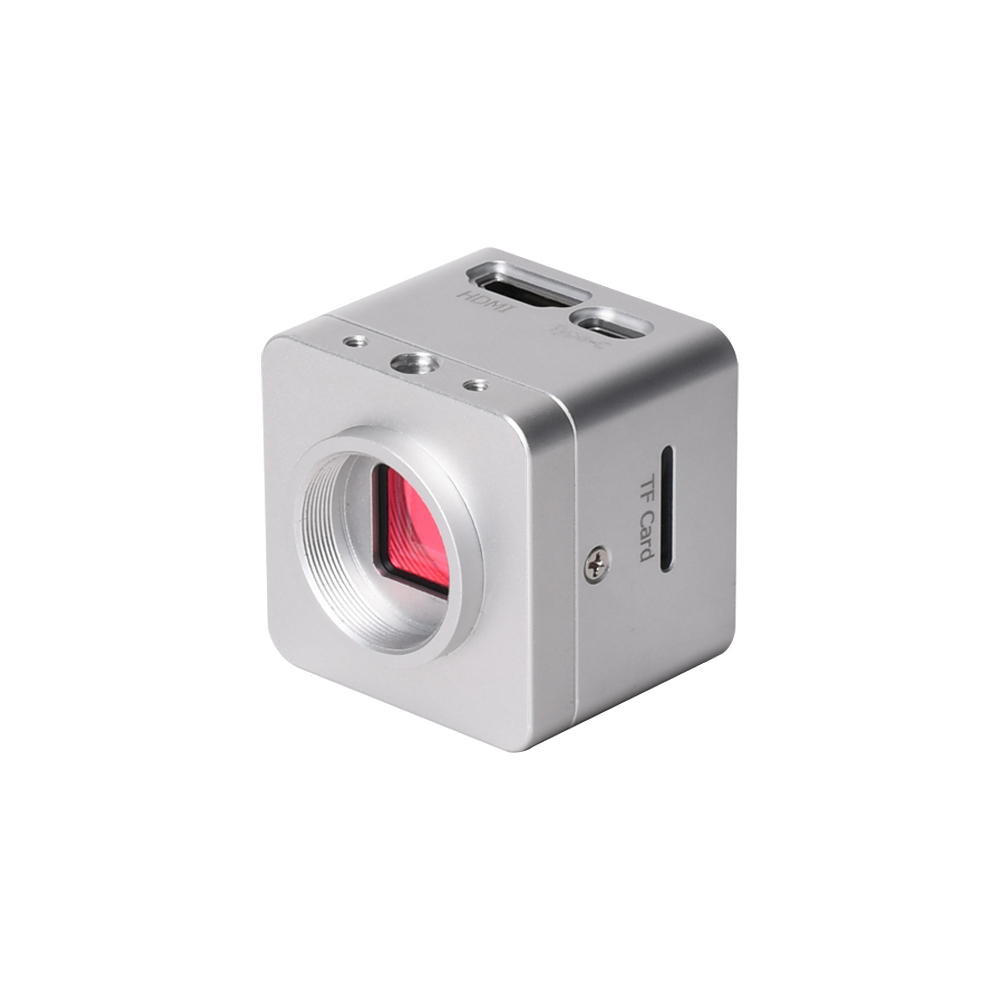

- Lens Type: C/CS Mount
- Storage: TF Card, Maximum support 512GB (TF card is not included)

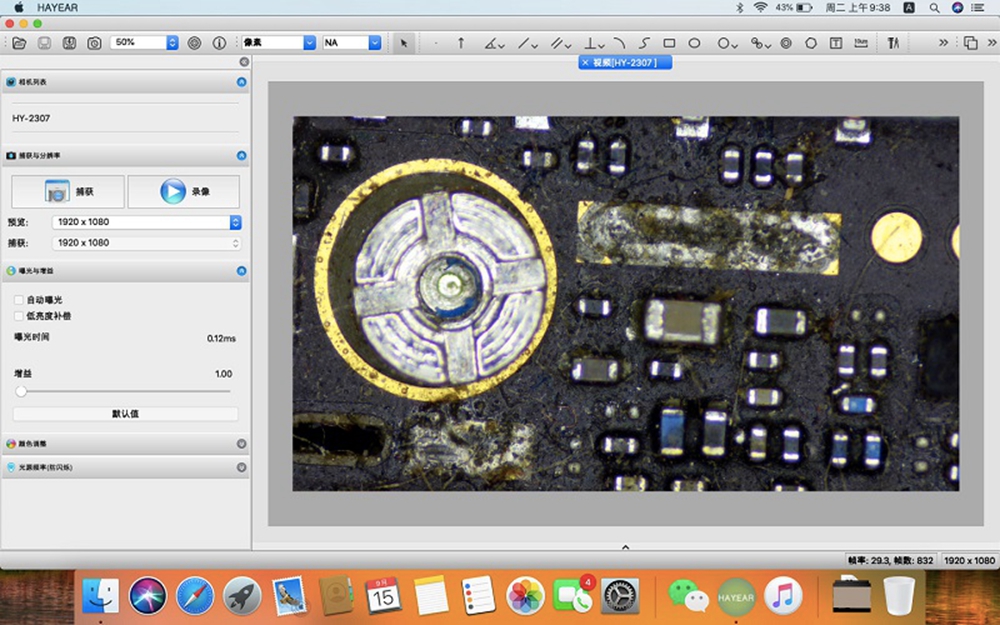

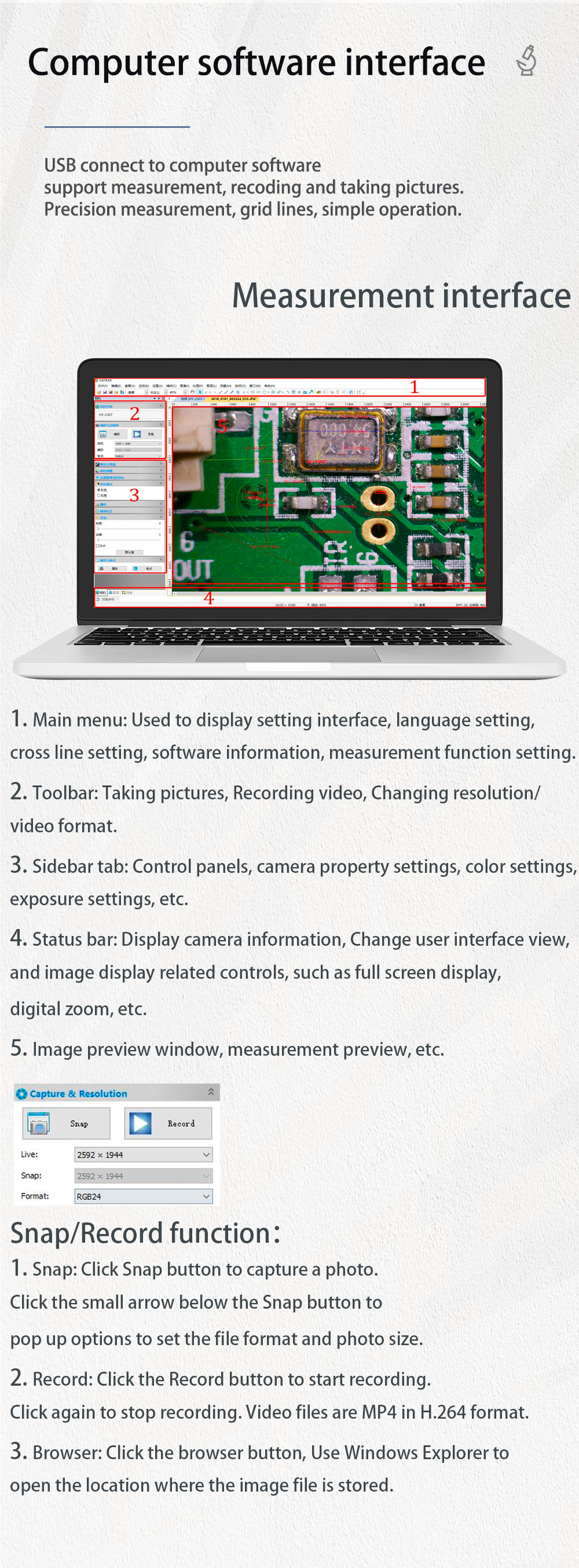

- PC Support:Windows / Mac / Linux, PC Software with Measuring Function

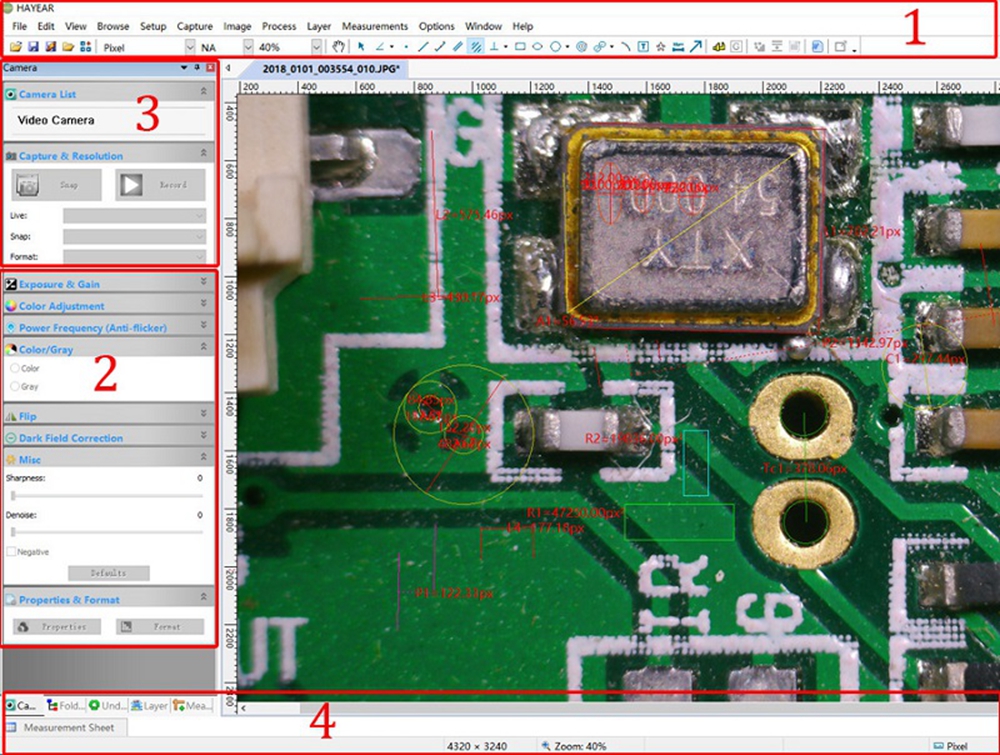

- Image Measurement: Support HAYEAR Measurement
- Language: Chinese, English, Japanese, French, German, Russian, Italian, Korean, Turkish

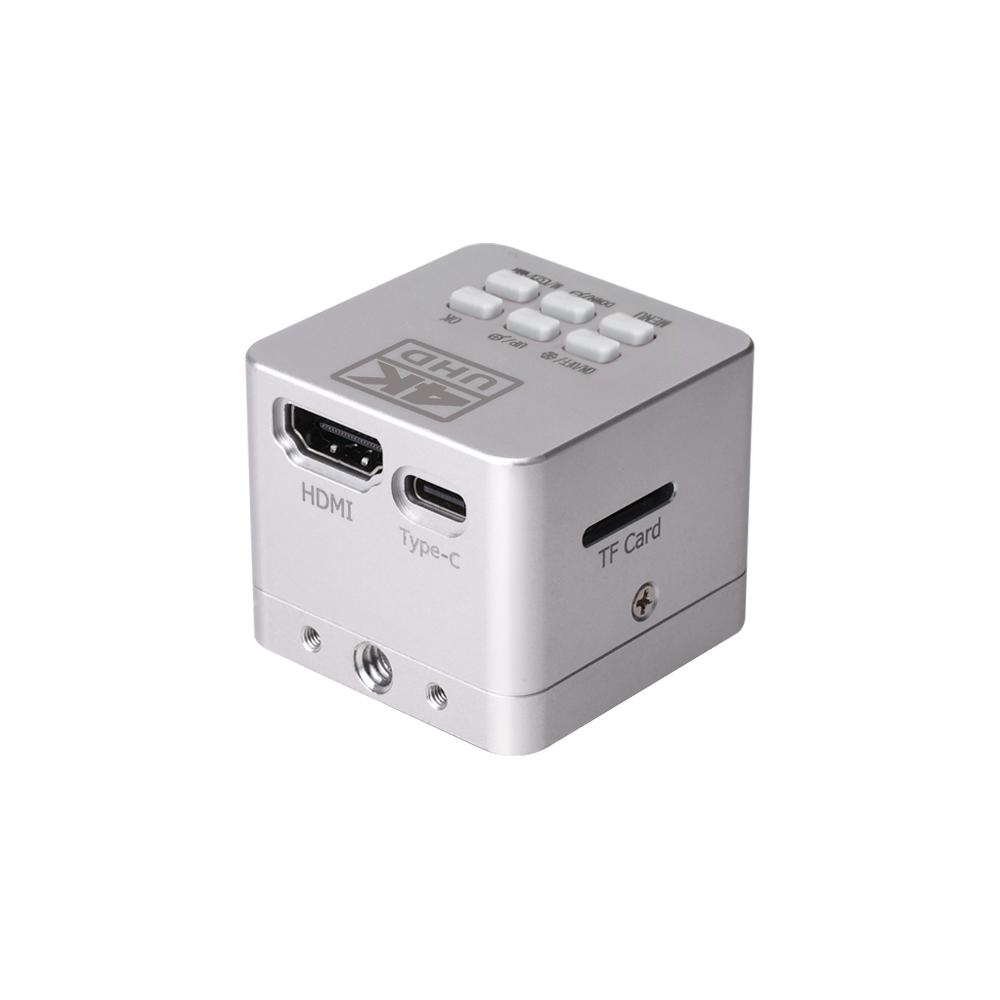

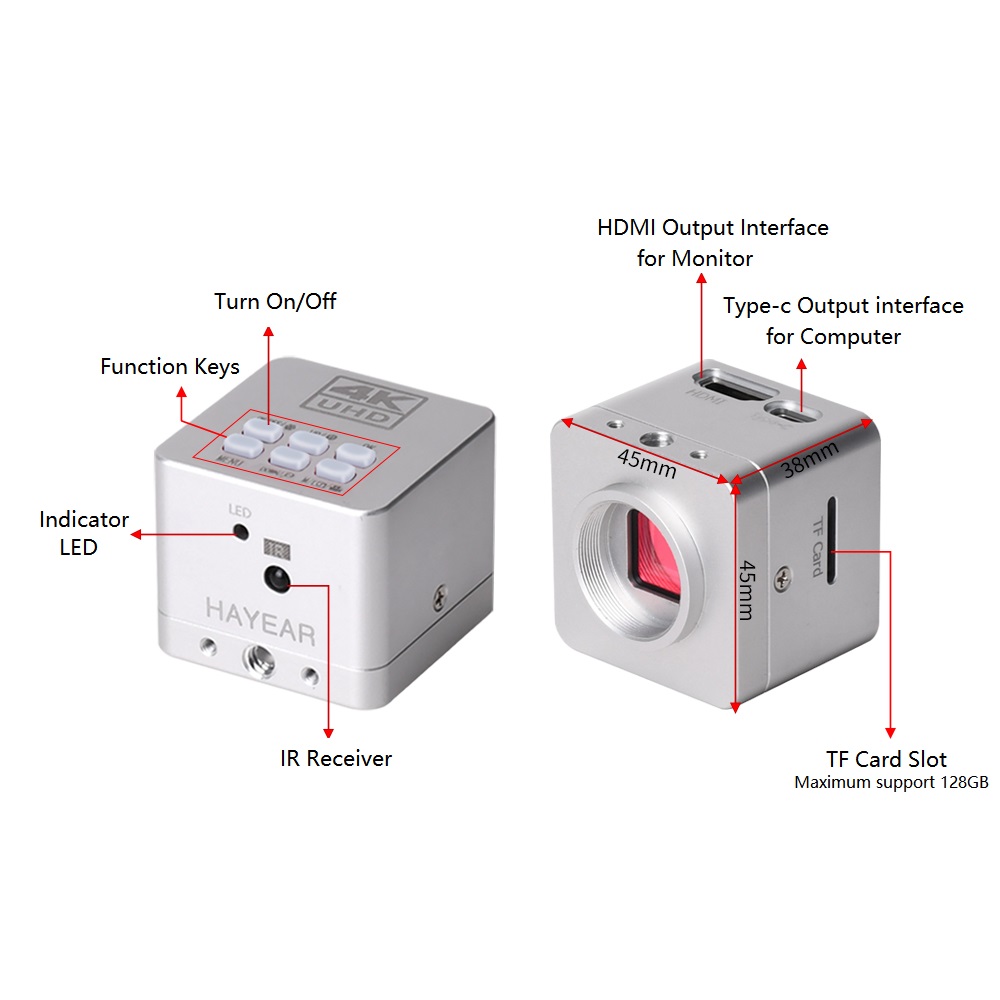

- Output Interface: HDMI / USB Type-C 2.0 interface
- HDR Function: Support HDR,Multiple exposure HDR, Digital overlap HDR

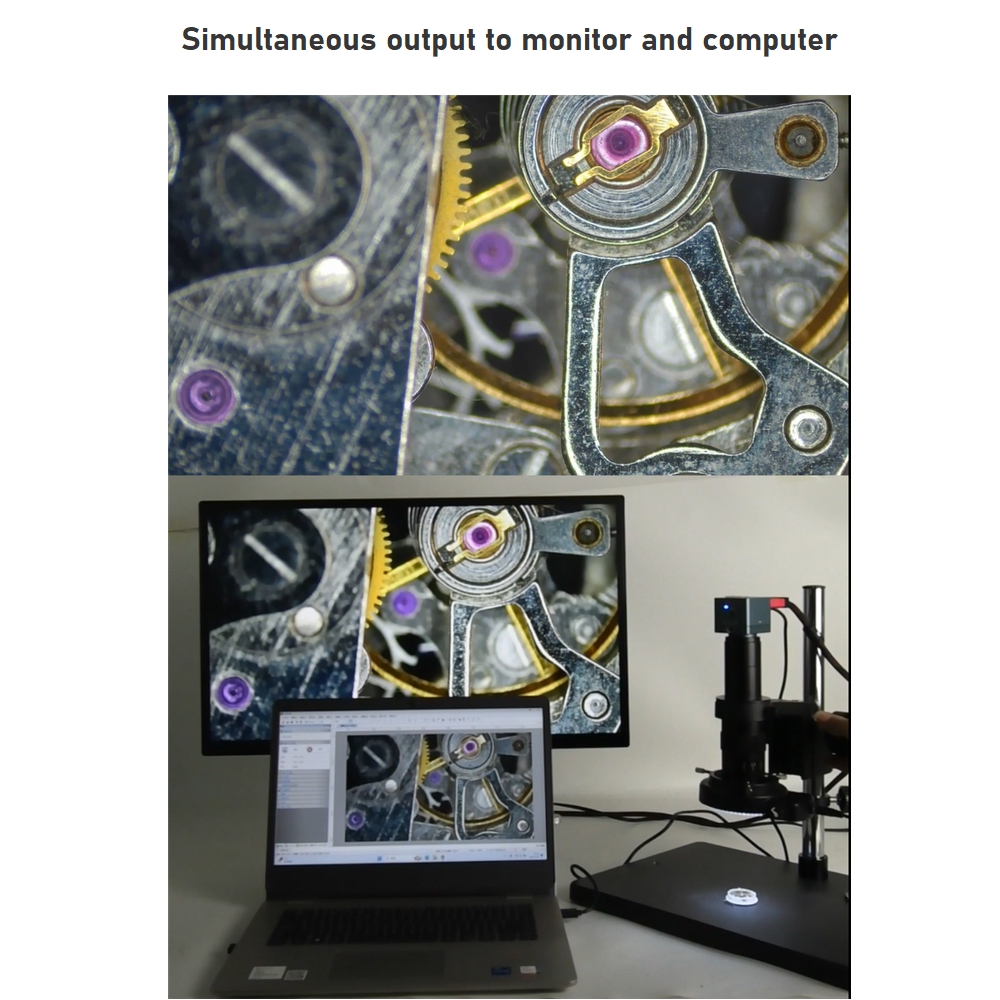

- Video output interface: HDMI/USB dual interface can output image simultaneously
- Timer function: Support taking pictures/video recording at specified time
- Comparison on the same screen: Real-time observation and comparison of two products
- White Balance: Support One-click, Auto and Manual white balance
- Image Zoom: 7x digital zoom
- Transverse and vertical line: Support multi-color, 5pcs of transverse lines/vertical lines, movable - Different color,5 horizontal line, 5 vertical line, any positions
- Exposure: Auto/Manual, value adjustable
- Encode: H.264 /H.265 (High Profile)
- Video format: Video format
- Input Voltage: Type-C 5V / DC 12V 1A
- Size: 45×45×53mm

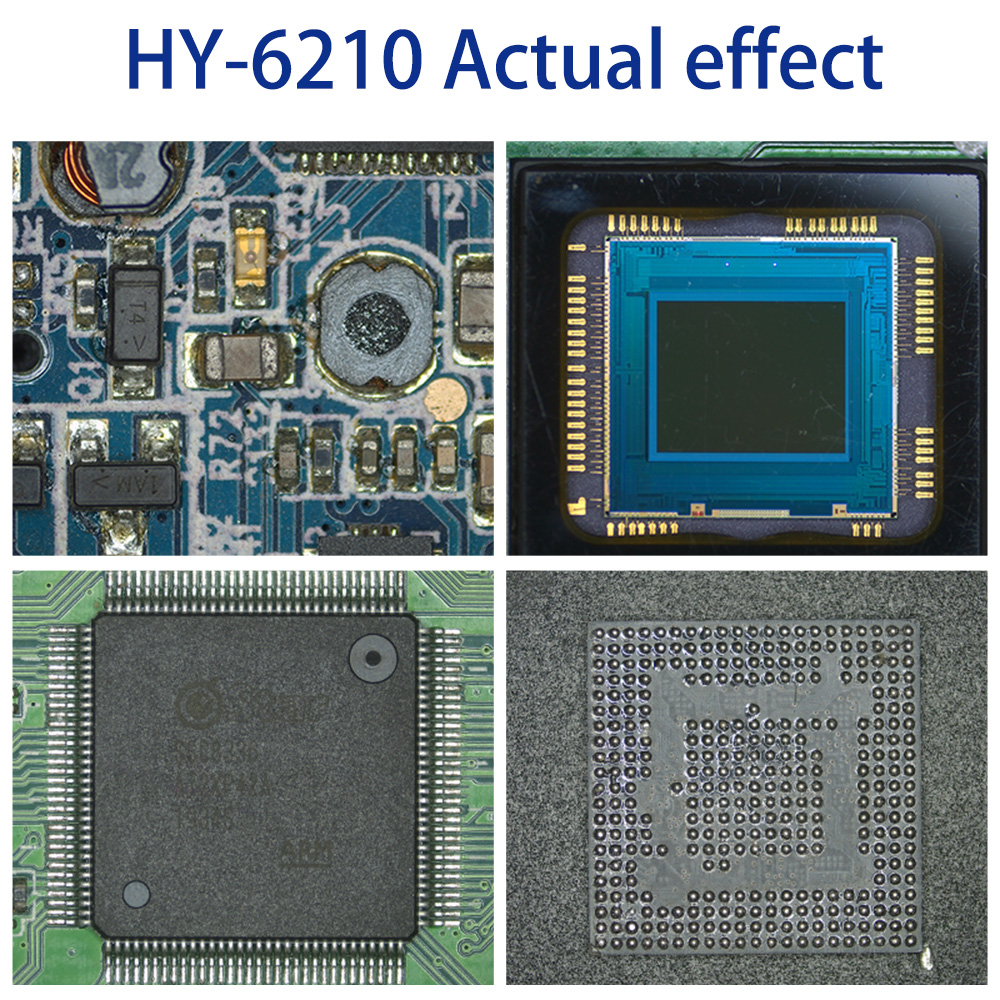

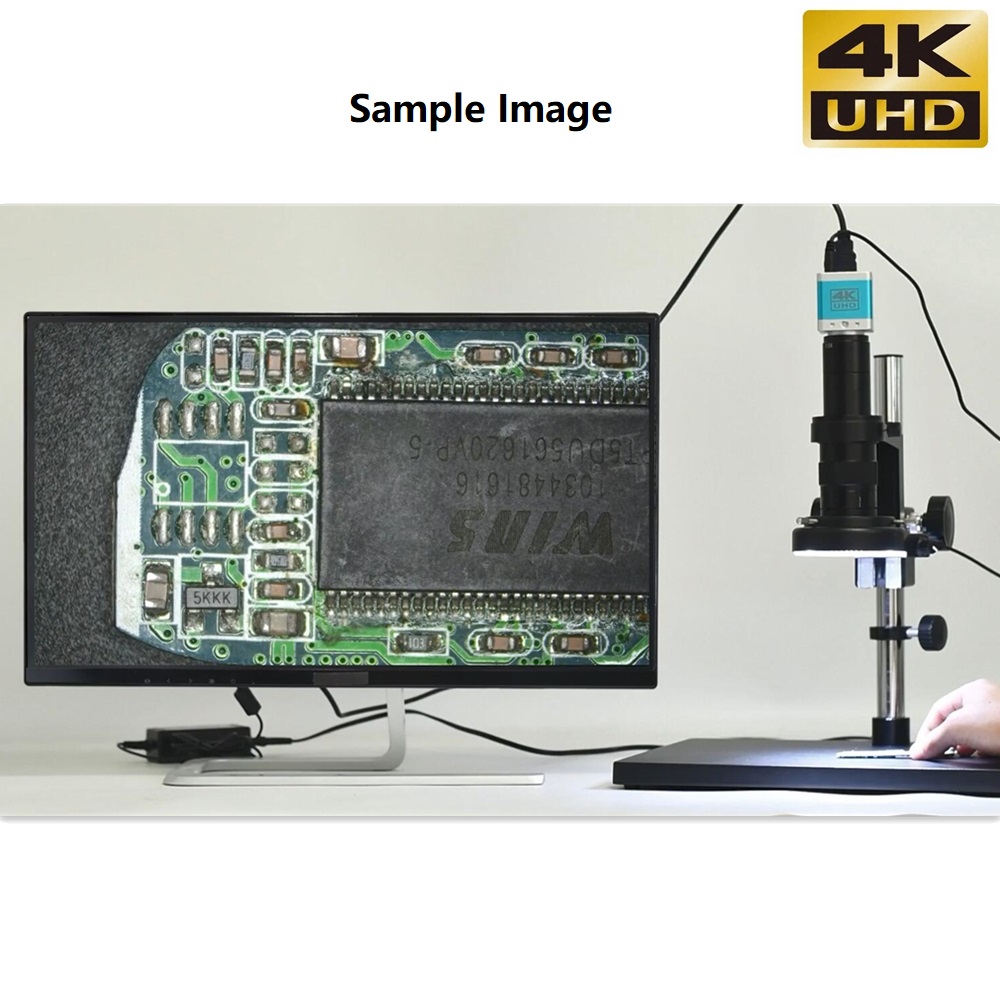

- Wide range of uses: Scientific research, education (teaching, demonstration and academic exchanges), digital laboratory, medical research, industrial visual (PCB examination, IC quality control), medical treatment (pathological observation), food (microbial colony observation and counting)

Precaution:
- PC Support: for Windows XP/7/8/10 system
- For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
- When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.
- When connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)

Package Included:
- 1 x 4K Microscope Camera
- 1 x Power Adapter
- 1 x Type-C Cable
- 1 x Remote Control
