HY-6800 Real 4K FHD 60FPS Microscope Camera Industrial Trinocular Electronic Eyepiece for Phone Repair PCB Soldering

HY-6800 Real 4K FHD 60FPS Microscope Camera Industrial Trinocular Electronic Eyepiece for Phone Repair PCB Soldering

Feature:
- Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.
- Especially suitable for observing the surface micro-structure of large objects.
- Using highquality materials, strong and durable, has a long service life.
- HD camera with 8 megapixel CMOS sensor 1/1.2 inch, with HDMI-compatible USB port.
- Strict quality control and quality assurance, high safety factor, can be used with peace of mind.

Specification:
- Item Type: microscope camera
- Model: HY-6800
- Sensor: for CMOS IMX 585 sensor
- Optical format: 1/1.2 inch
- Pixel size: 2.9μm x 2.9μm
- Interface: HDMI-compatible (Type-A), USB (Type-B Type-C 3.0), USB (Type-C USB Disk storage)
- HDMI-compatible image resolution: 8MP
- HDMI-compatible video resolution:
  4K: 3840 x 2160P at 60FPS
  2K: 1920 x 1080P at 60FPS
- HDMI scale: support 4: 3, 16: 9 screen
- USB3.0 (Type-C 3.0):
  4K: 3840 x 2160P at 30FPS
  2K: 1920 x 1080 at 60FPS
- USB Disk storage: up to 512GB (not included)
- AWB: AWB color correction/automatic/manual
- R.G.B value setting independent
- Exposure: automatic/manual. AE value can be set
- Cross line: 8 lines, color, width, position can be set
- Scale line: 2 lines.
- Dotted line: 2 lines, color, width, position can be set
- Sharpness contrast color gain: support
- Mono negative film: support
- Mirror: horizontal and vertical mirror
- Language: English/Simplified Chinese
- Digital zoom: support
- Working voltage: DC 12V/ 1000mA
- Lens interface: C/CS port
- Camera size: 62 x 43 x 62MM (L x W x H)
- Package size: 210 x 140 x 80MM (L x W x H)

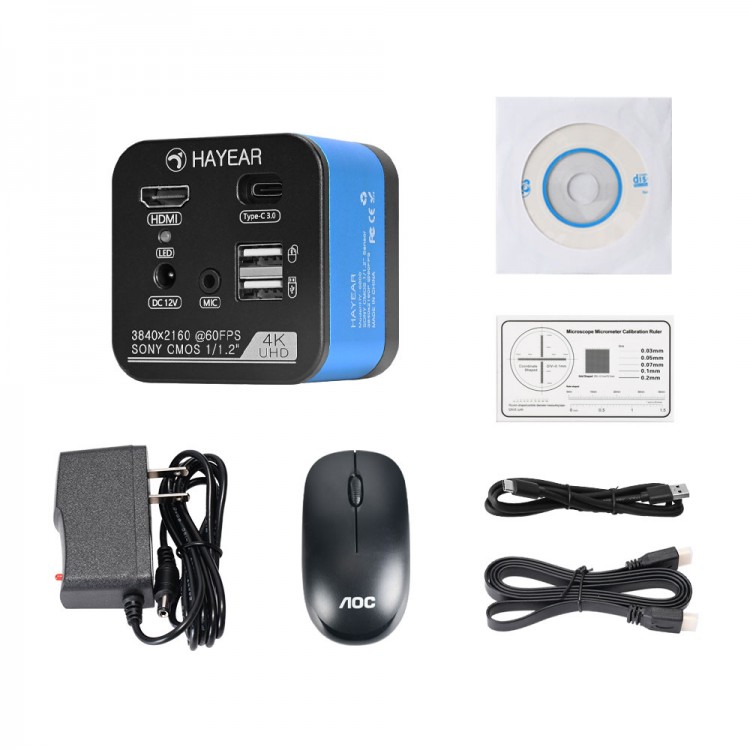

Package Included:
- 1 x Microscope Camera
- 1 x Power Supply
- 1 x Type-C Cable
- 1 x HDMI-compatible Cable
- 1 x Mouse
