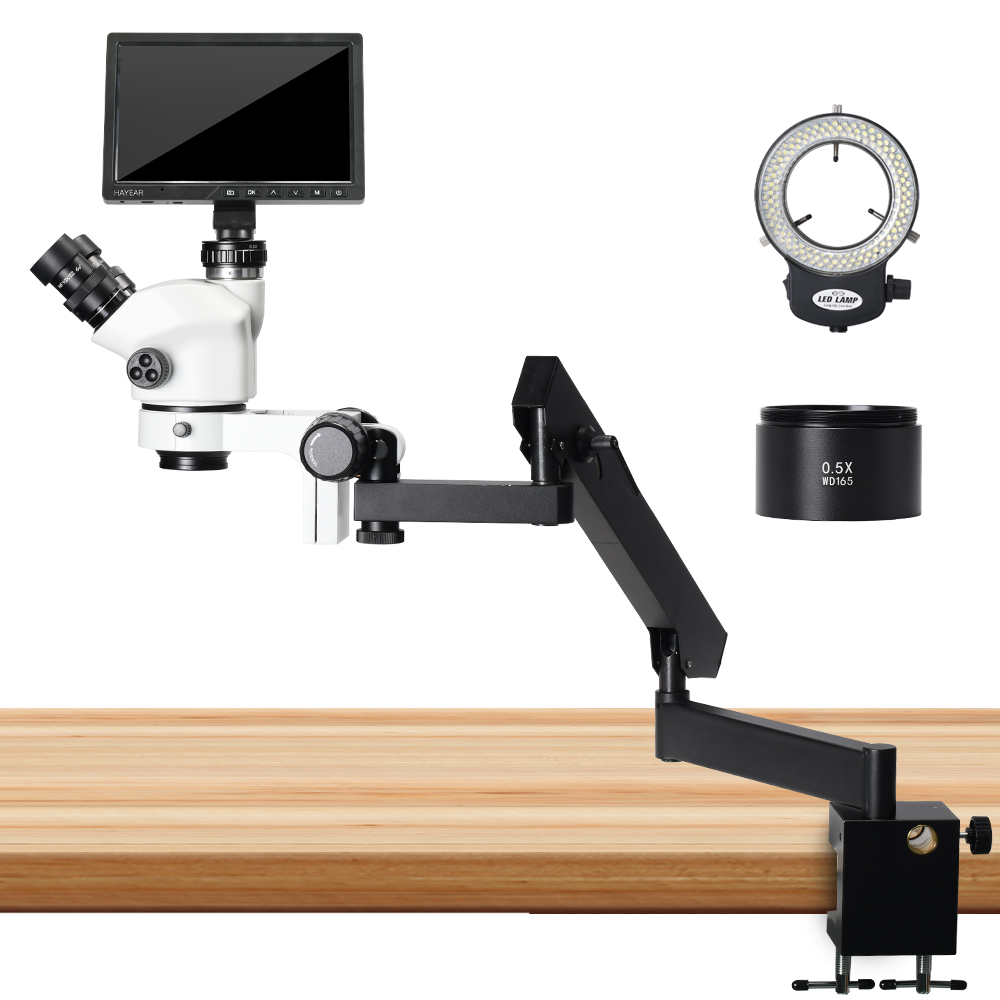

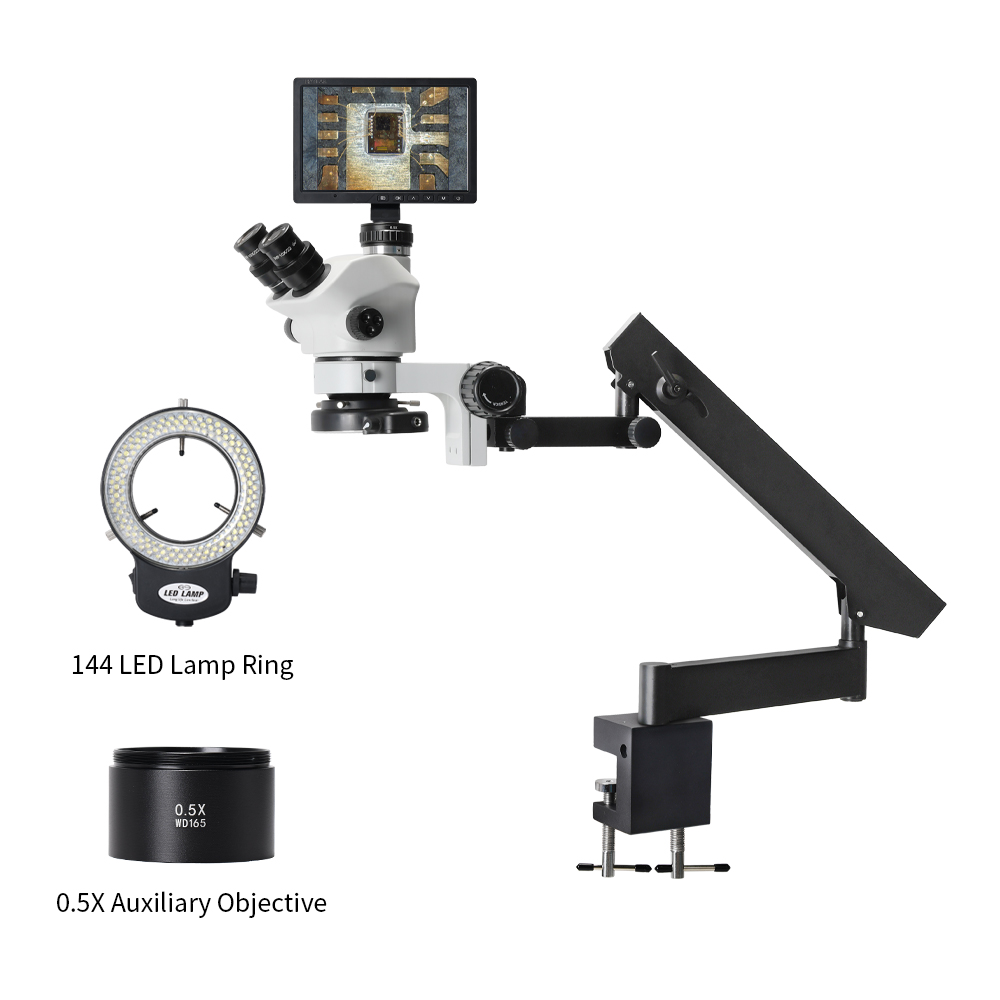

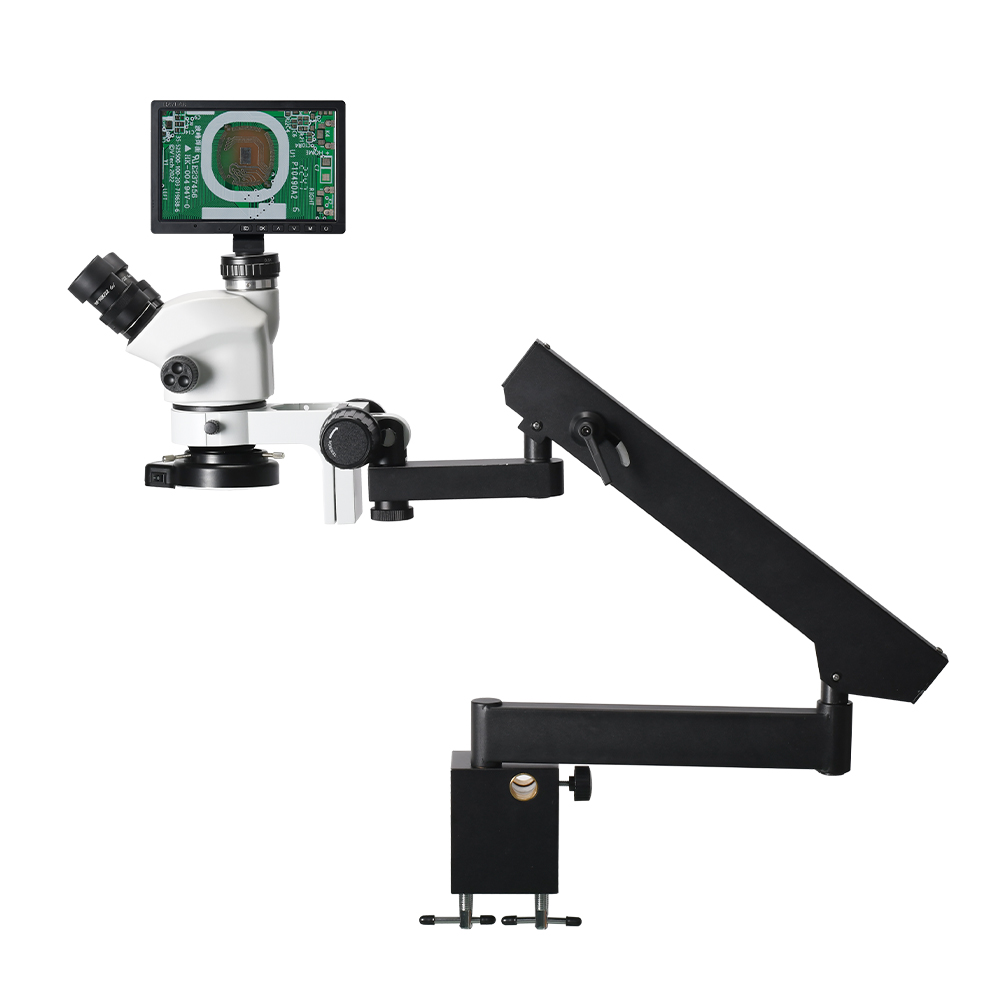

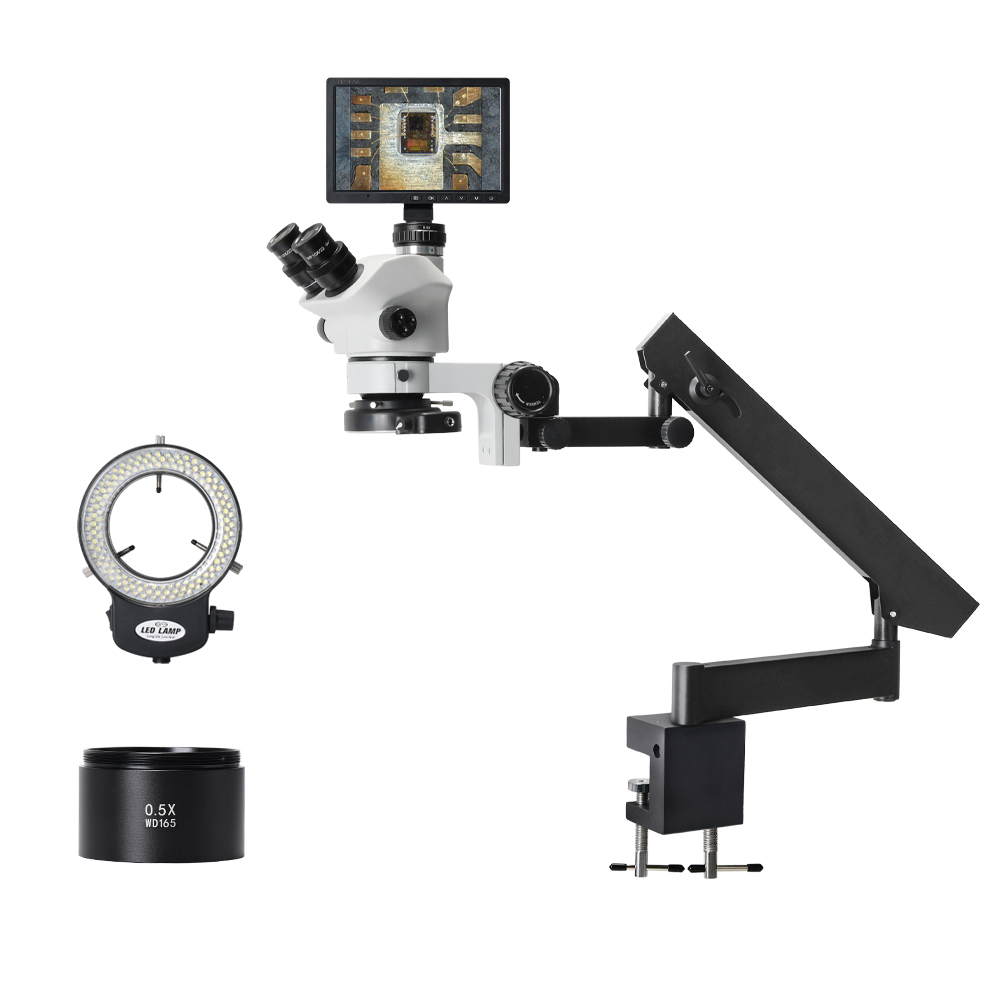

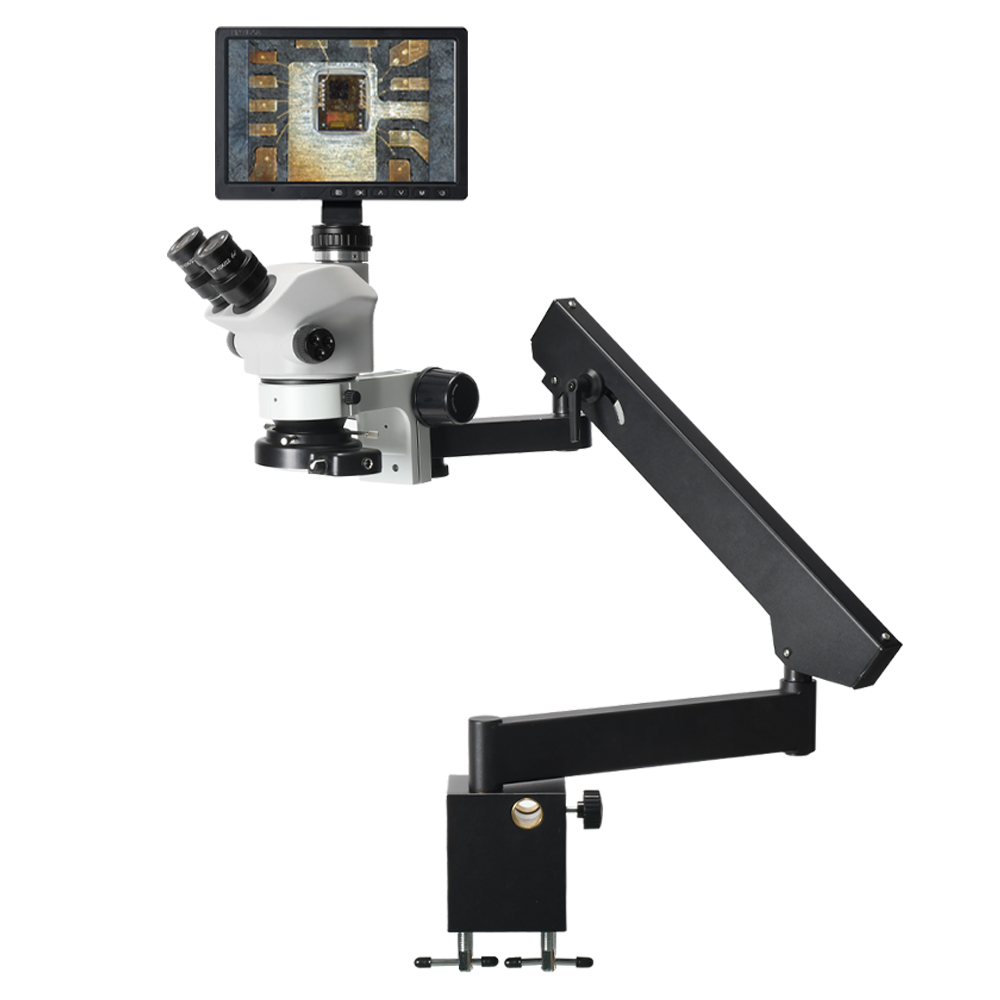

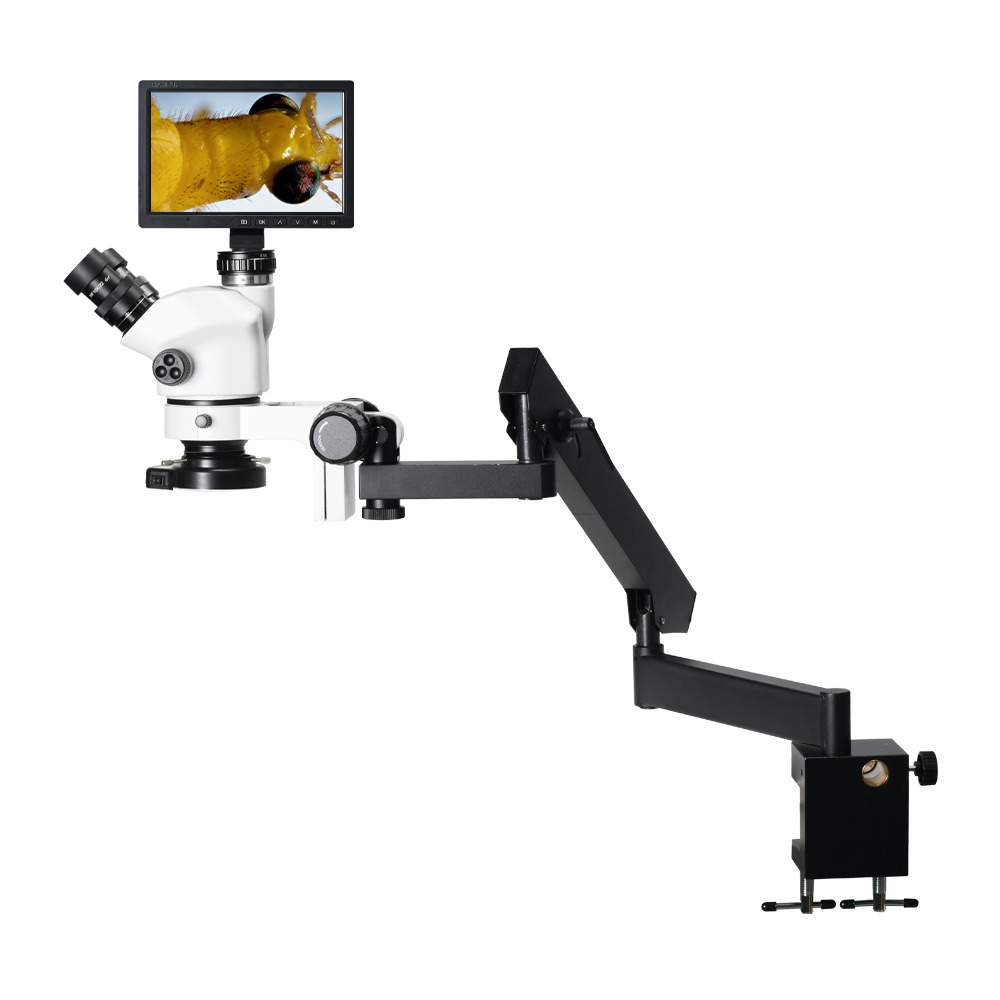

HY-7050FLA-1090 3.5X-50X Zoom Stereo Trinocular Microscope Clamp Folding Extension Base with 10-inch Microscope Camera

HY-7050FLA-1090 3.5X-50X Zoom Stereo Trinocular Microscope Clamp Folding Extension Base with 10-inch Microscope Camera

Base Features:
- An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light
- 3.5X-50X wide zoom magnification power
- Bright cool light 144-LED illumination system
- High resolution with great flatness and contrast, giving sharp and clear images
- Binocular head with 45 degree inclined 360 degree swiveling eye tubes
- Sharp stereo erect images with a wide field of view
- Crystal clear original true color microscope images
- Dual eye tubes with adjustable diopters
- Large working distance
- Sturdy all-metal table stand
- Accurate alignment reduces eye strain for longer periods of viewing
- Full optical glass elements
- Precise ground glass lenses
- Full metal chrome-plated mechanical components
- Adjustable inter-pupillary distance
- Rubber eye-guards included
- Expand the scope of operations, any orientation and angle observed the objectives

Base Specification:
- Horizontal Distance: 770mm
- Base size: 98 x 80 x 116mm
- Max Clamp: 50mm
- Steel Gears on Focusing Holder
- Standard size focusing holder - will fit scope heads with diameter of 76mm, connection diameter of 16mm.

Camera Features:
- Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.
- Especially suitable for observing the surface micro-structure of large objects.
- Using highquality materials, strong and durable, has a long service life.
- HD camera with 16 megapixel CMOS sensor 1/2.8 inch, with HDMI-compatible USB port.
- Strict quality control and quality assurance, high safety factor, can be used with peace of mind.

Camera Specification:
- Item Type: Microscope Camera
- Model: HY-1090
- Screen Size: 10 inch IPS
- Sensor: 16MP CMOS
- Optical Format: 1/2.8 inch
- Pixel Size: 2.0μm x 2.0μm
- Interface: HDMI-compatible(Type A). USB (Type B). Small memory card
- Photographic image resolution: 16MP (4608 x 3456)
- Video Resolution: 2K at 60FPS 1080p at 60FPS
- HDMI-compatible Resolution: 1920 x 1080p 60FPS
- HDMI-compatible Scale: support 4:3, 16:9, 16:10 screen
- USB2.0 (Drive Free): 1920 x 1080 at 30FPS; 1280 x 720 at 30FPS; 640 x 480 at 30FPS
- Small Memory Card: up to support 128GB (Memory Card is not included)
- AWB: AWB color correction/automatic/manual
- R.G.B value setting independent
- Exposure: Automatic/manual. AE value can be set
- Cross Line: 8 lines, color, width, position can be set
- Scale Line: 2 lines.
- Sharpness Contrast Color Gain: Support
- Mono Negative Film: Support
- Mirror: Horizontal and vertical mirror
- Language: English /Simplified Chinese /French /Spanish /Japanese /German, etc.
- Digital Zoom: support

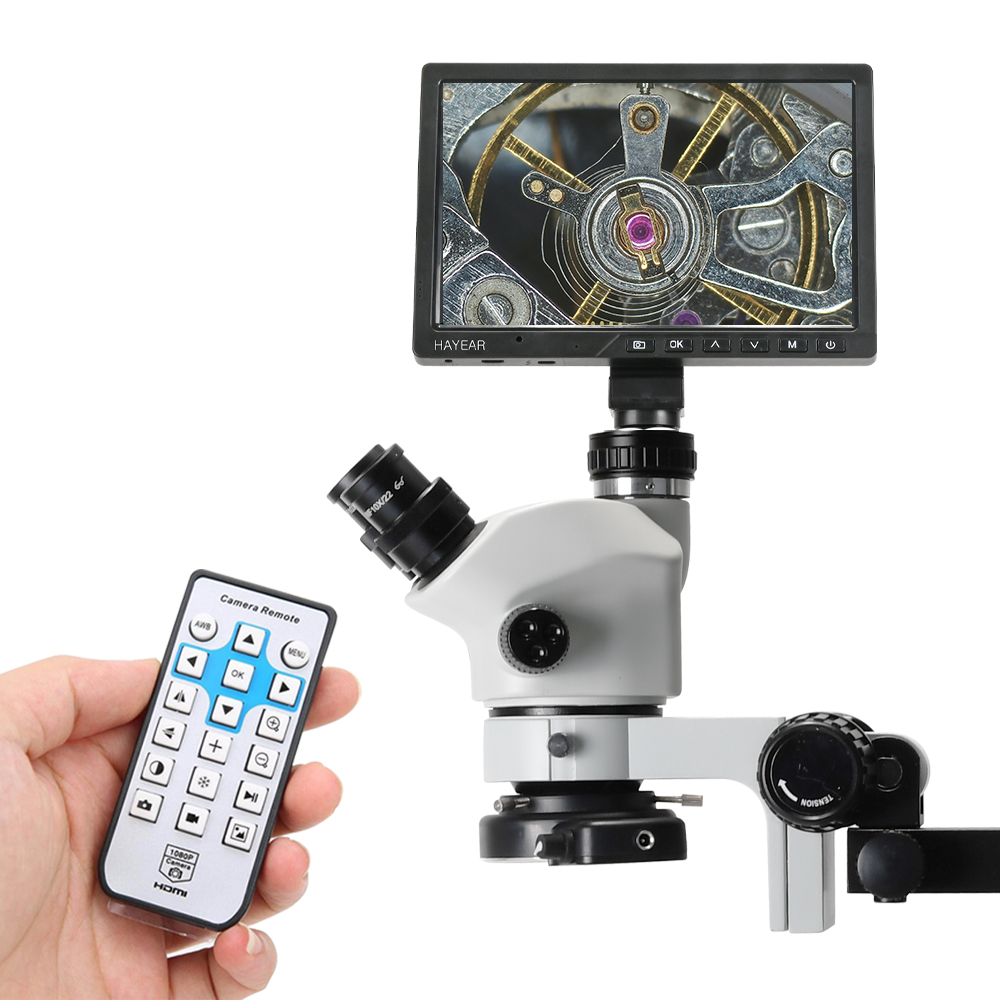

- Infrared Remote Control: Support
- Voltage Input: DC 12V 1.5A
- Lens Interface: C/CS port
- Remote control battery: 1 x CR2025 button battery (delivered without battery)

144 Bright LED Features:
- Variable lighting direction
- Variable power control
- Strong and concentrated shadow less lighting
- 100,00 hours of life
- Power input: 100-240V, 50-60HZ, automatic switching
- The inner diameter of the ring light: approx. 27mm / 1.1in
- Overall outer diameter: Approx. 45mm / 1.8in
- Working distance: approx. 27 ~ 120mm / 1.1 ~ 4.7in

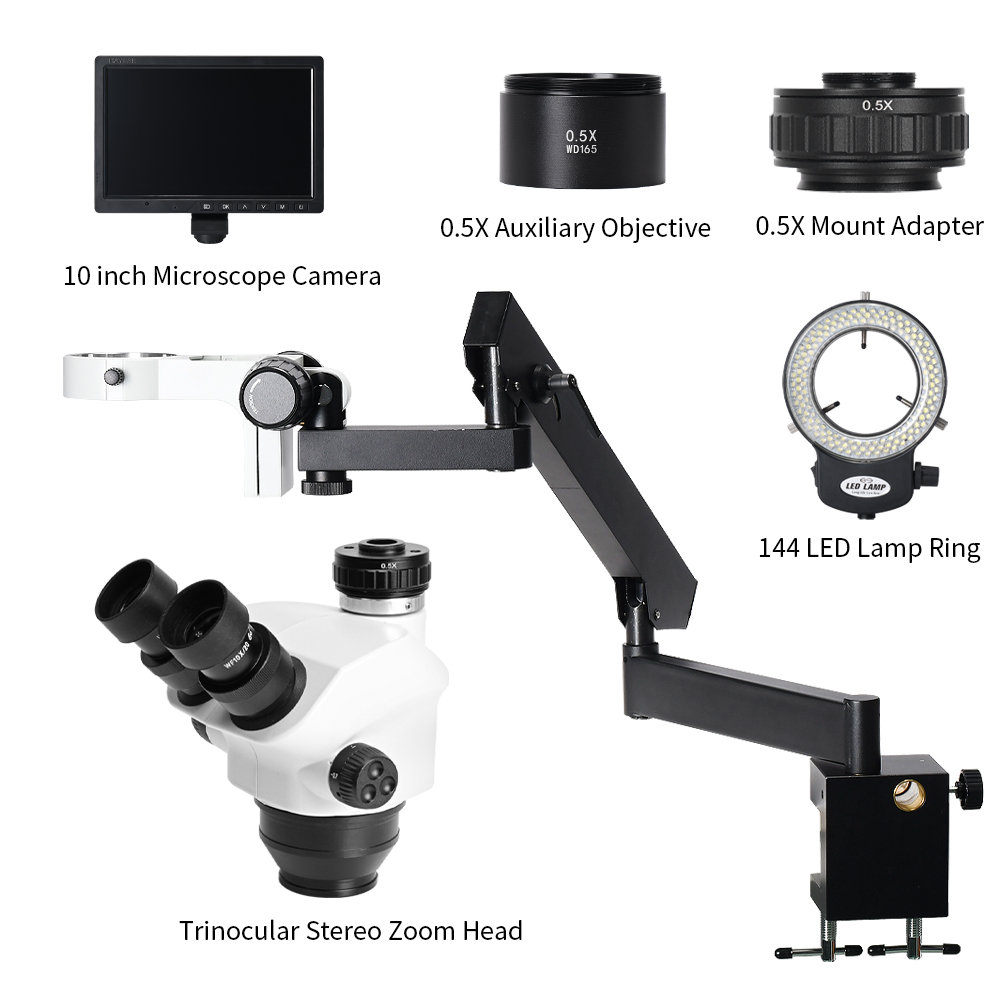

Package Included:

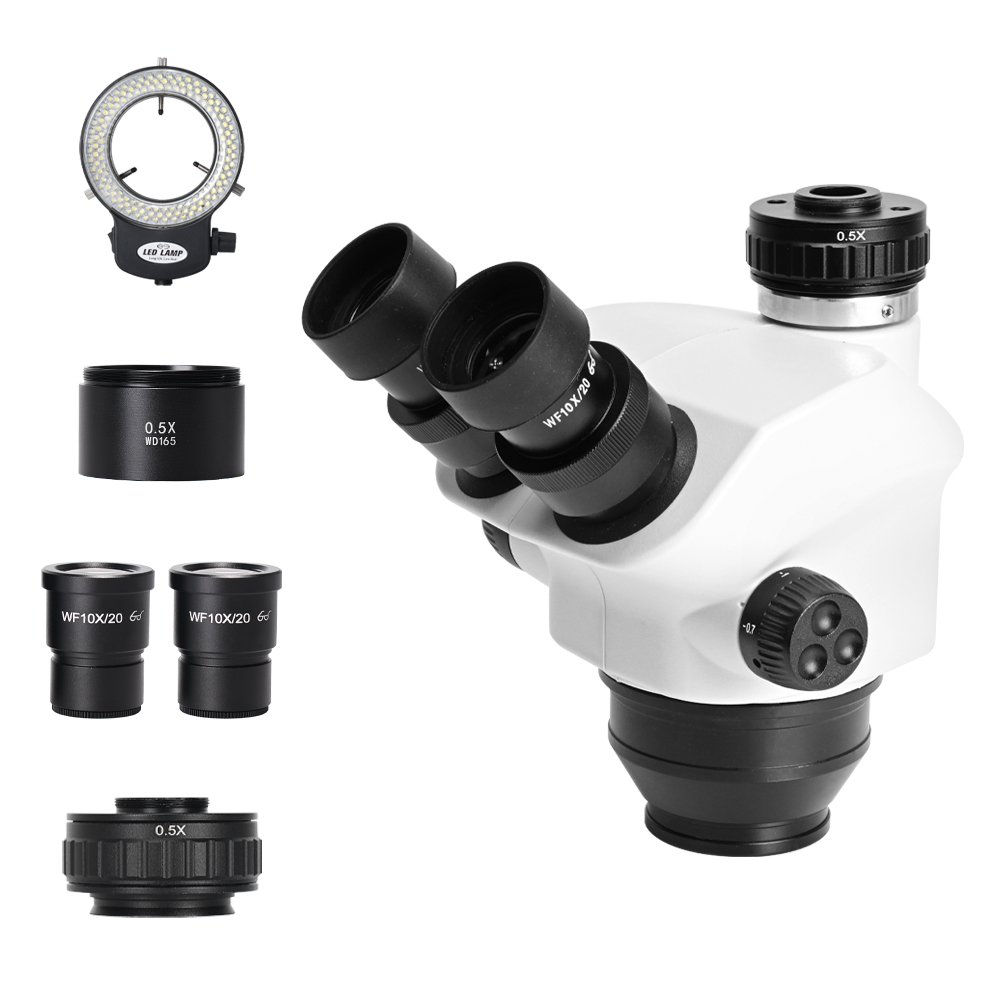

- 1 x Trinocular Stereo Zoom Head
- 1 x Pair of Super Widefield 10X22MM Eyepieces
- 1 x Pair of Eye-Guards
- 1 x Dust Cover
- 1 x 0.5X Simul Focal Adapter
- 1 x 144-LED Ring Light with Adapter
- 1 x Articulating Arm Set
- 1 x Desktop clip
- 1 x 76mm Focusing
- 1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 160 mm)
- 1 x 10 inch Microscope Camera
- 1 x Power Adapter
- 1 x HDMI-compatible Cable
- 1 x USB Cable
