HY-800M Digital Electronic Eyepiece FHD 4K IMX377 CMOS USB Microscope Camera Free Driver for Microscope or Telescope

HY-800M Digital Electronic Eyepiece FHD 4K IMX377 CMOS USB Microscope Camera Free Driver for Microscope or Telescope

Features:
- Eyepiece interface (adapter), designed for the microscope. The under mouth is the 23.2mm, 30mm and 30.5mm straight inserted, can be installed directly in the biological or stereo eyepiece camera. Catches still images and live video on your computer. The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus) and video recording. Live video and still image catch can be set in different resolutions simultaneously.

- More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances

- It is designed especially for troubles bothering traditional telescope users. Only by connecting it to traditional telescope can you release your eyes fettered on telescope to alternate traditional telescope into electron telescope immediately. It is featured as simple installation, strong commonality, rich functionality, ease of use. The color of the machine body is classic black with light outlook design.

Camera Specification:
- Model: HY-800M
- Name: 4K USB2.0 color 8MP UVC Digital Camera
- Image Sensor: for SONY 1/2.3" color IMX377 CMOS image sensor
- Pixel Size: 1.55μm (H) x 1.55μm (V)
- USB output: Type-C 2.0, 480Mb/s
- Resolution: 3840 x 2160; 2592 x 1944; 2084 x 1536; 1920 x 1080; 1280 x 720; 640 x 480
- Frame rate: at 25FPS
- Spectral response: 400nm ~ 700nm
- Scanning method: line by line scanning, real 8 megapixel image sensor, no compression, no interpolation
- Savable parameter: Brightness; Contrast; Color Saturation; Tint; Sharpness; Gamma; Gain; White Balance; Backlight Contrast; Exposure
- Dynamic Range: 74 dB (Linear) -85 dB (HDR)
- Sensitivity: 2400 mV/Lux-sec
- SNR: 39dB
- UVC protocol: USB Video Class (UVC)
- Eyepiece: Support 23.2mm/ 30.0mm/30.5mm/31.7mm diameter
- White balance: Auto/Manual
- One-click white balance: Support
- Support System: for WinXP/Win7/Win10/win11; for Linux / Android (UVC); for MAC-OS X10.4.8 or later(UVC)
- Support OTG protocol: USB2.0 OTG
- Supports output formats: 12-/10-bit RAW RGB
- ISP clock up to 240MHz
- Supports 2x2 binning
- Application Areas: Industrial Vision, Visual Inspection, Microscope, Astronomical Telescope, Intelligent Terminal Equipment, Face Recognition, Advertisement Machine, Vegetable Recognition, Intelligent Vending Camera, Electronic Weighing Object Recognition, USB Raspberry Pi Camera, Code Scanning Camera, and so on...

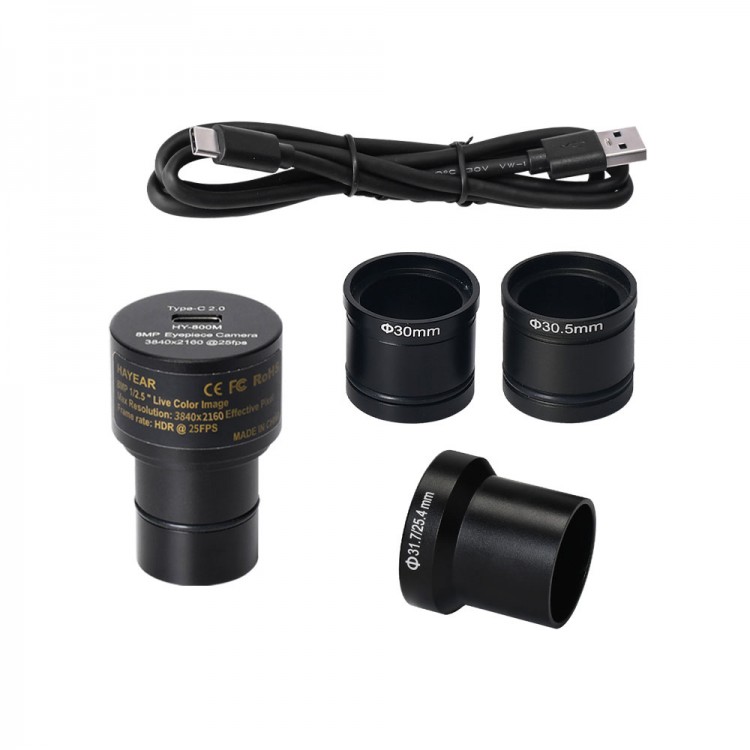

Package Included:
- 1 x 4K Eyepiece Camera (23.2mm)
- 1 x USB Type-C Cable
- 1 x 23.2mm to 30mm Adapter Ring
- 1 x 23.2mm to 30.5mm Adapter Ring
- 1 x 23.2mm to 31.7mm Adapter Ring
