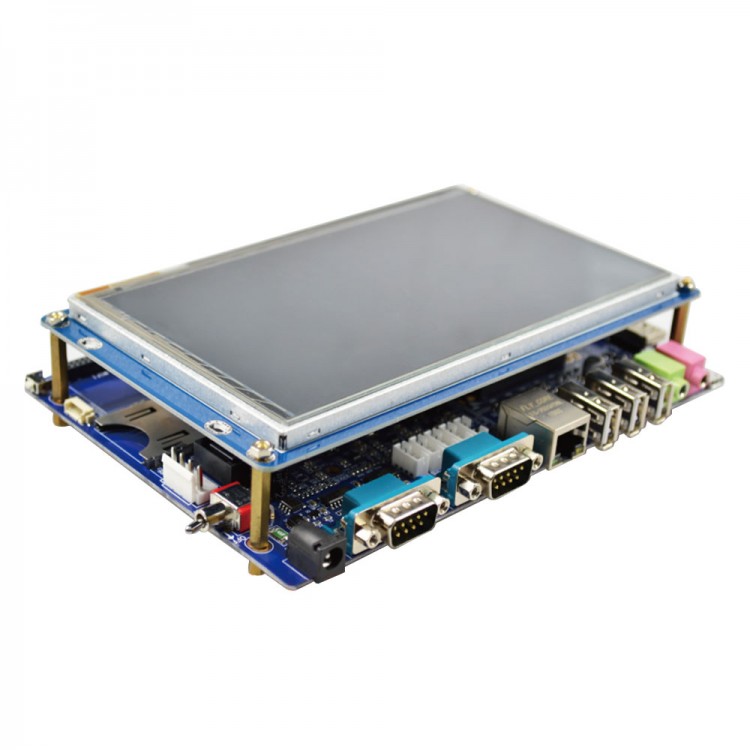

I.MX6 Development Board V2.5 Quad ARM Cortex-A9 I.MX6Q Core Board DIMM200 1GB DDR3 4GB EMMC FLASH + 7 inch LCD
Advantage
- I.MX years of research and development team, has accumulated rich experience in the industry
- The smallest size of ARM CORTEXA9 core board 40*67.6mm
- FCC and CE certification
- The vehicle, vehicle engineering, industrial control, large quantities of networking and other high reliability industries verification
- Provide the perfect software source code, schematic, PCB map
- Provide technical guidance and perfect, full set of operating manual English, development documents
- The highest price of the domestic ARM development board COTEXA9
- By 30000 times on and off the electric power test
- The high and low temperature test - industrial grade strict -40 -80 degree
- Support Linux, QT, Android4.2, Ubuntuw

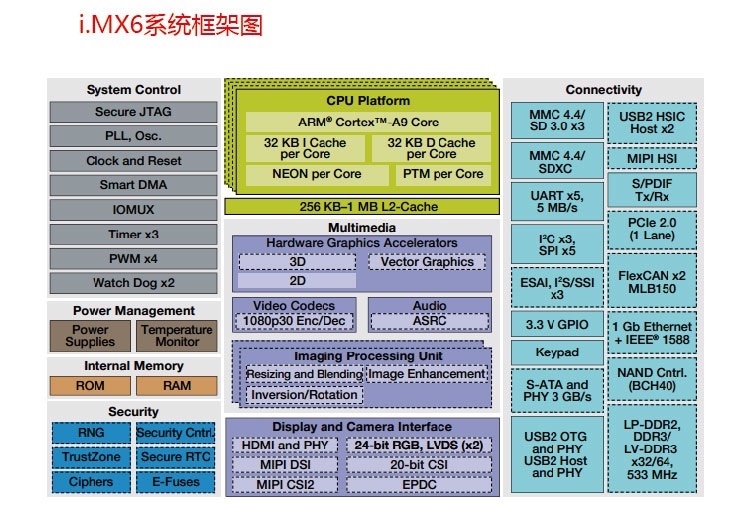

The Characteristics of CPU
- 4 ARM Cortex-A9 kernel, each core operating frequency up to 1.2 GHz
- 1 MB L2 cache
- 32 KB instruction and data cache
- NEON SIMD media accelerator
- GPU 3D
- Vivante GC2000
- Hardware BCH (up to 20 bit correction)
- 200Mtri/s 1000Mpxl/s, OpenGL ES 2.0 & Halti, CL EP
- GPU 2D (vector graphics)
- Vivante GC355 300Mpxl/s, OpenVG 1.1
- GPU 2D (composite)
- Vivante GC320 600Mpxl/s, BLIT
- Video decoder 1080p 60 H.264
- Video coding 1080p30 H.264 BP/ dual 720p code
- Camera interface: 2x 20 bit parallel, MIPI-CSI2 (4 channels), three road input at the same time
- Memory
DDR: 2 pieces of 32 LP-DDR2, 1 piece of 64 DDR3 / LV-DDR3
NAND: SLC/MLC, 40bit ECC, ONFI2.2, DDR
- Data connection
4 USB2.0
1 HS OTG + PHY
1 Host + PHY
2 Host USB HSIC
- Ethernet: 1 Gbps + IEEE1588
- Expanding port
3 SD/MMC 4.4, 1 SDXC
5 SPI, 5 UART, 3 I2C
MIPI-HSI
PCIe 2 (1 channels)
- Display: 2 x 4XGA (2048x1536) or 2 x [1080p + WXGA (1280x720)]
- Advanced Power Management
Package List:
- 1 x I.MX6 Development Board+LCD
